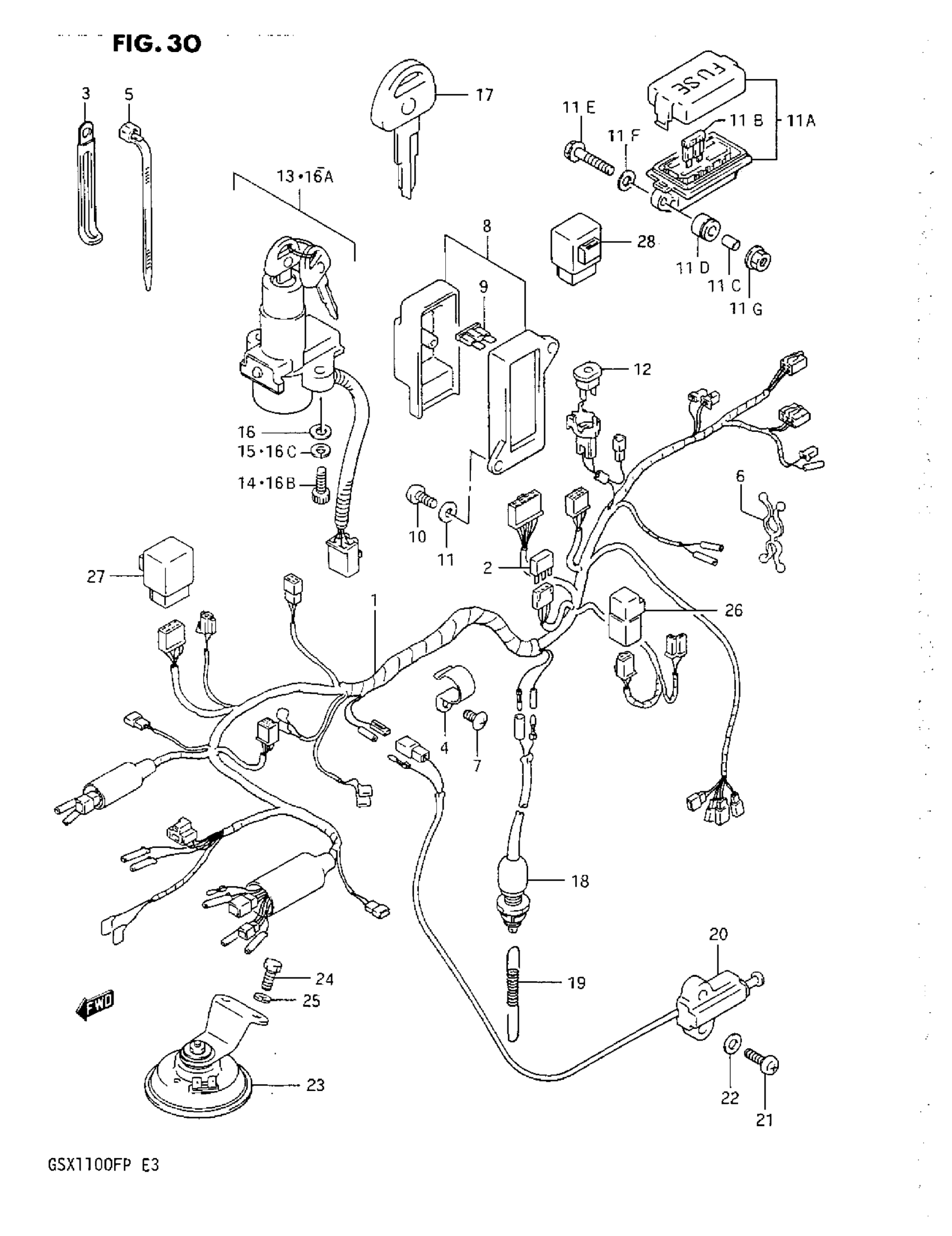

Suzuki GSX1100F (1993) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL J

36610-48B12

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 36610-48B50.

36610-48BK0

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL L/M/N/P This part replaces 36610-48B51.

36610-48BK0

Unavailable

1

HARNESS, WIRING | MODEL J , CALIFORNIA ONLY

36610-48B21

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K , CALIFORNIA ONLY This part replaces 36610-48B40.

36610-48BK0

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL L/M/N/P, CALIFORNIA ONLY This part replaces 36610-48B41.

36610-48BK0

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

4

CLAMP This part replaces 09403-20301.

09403-20310

$1.49

5

CLAMP (L:125)

09407-14403

$2.26

5

CLAMP (L:165)

09407-18402

$2.19

6

CLAMP

09408-00075

Unavailable

7

SCREW

03141-06106

Unavailable

8

BOX ASSY, FUSE | MODEL J This part replaces 36740-05A01.

36740-27A00

Unavailable

9

FUSE (IDA) | MODEL J

09481-10101

$2.07

10

SCREW | MODEL J This part replaces 02112-06126.

02112-0612A

$1.49

11

.WASHER | MODEL J This part replaces 08322-21066.

08322-0106B

$2.26

11

FUSE BOX ASSY | MODEL K/L/M/N/P

36740-20C01

Unavailable

11

FUSE (10A) | MODEL K/L/M/N/P

09481-10101

$2.07

11

NO DESCRIPTION AVAILABLE | MODEL K/L/M/N/P This part replaces 09180-06158.

09180-06253

Unavailable

11

CUSHION | MODEL K/L/M/N/P

09320-08050

Unavailable

11

BOLT | MODEL K/L/M/N/P This part replaces 01517-06356.

01550-0635A

$2.32

11

WASHER | MODEL K/L/M/N/P

09160-06056

$1.72

11

NUT | MODEL K/L/M/N/P

09159-06024

$2.11

12

BREAKER ASSY, CIRCUIT

36750-05A00

$44.50

13

LOCK ASSY, STEERING | ->37100-48B10 This part replaces 37100-48B00.

37100-48B10

Unavailable

14

BOLT | <-37152-47011 This part replaces 07110-06165.

07130-0616B

$2.39

15

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

16

WASHER This part replaces 08322-21067.

08322-01067

$2.13

16

LOCK ASSY, STEERING

37100-48B10

Unavailable

16

BOLT This part replaces 07110-06165.

07130-0616B

$2.39

16

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

17

KEY, BLANK | OPT

37146-47010

$18.39

18

SWITCH ASSY, STOP LAMP

37740-04A10

$23.32

19

SPRING

09443-06073

$3.42

20

SWITCH ASSY,SID | MODEL J This part replaces 37840-48B20.

37840-12X52

$69.30

20

SWITCH ASSY,SID | MODEL K/L/M/N/P This part replaces 37840-48B21.

37840-12X52

$69.30

21

SCREW | MODEL J/K/L/M This part replaces 02112-06205.

02112-0620A

$1.49

21

SCREW | MODEL N/P This part replaces 02112-16205.

02112-1620B

$2.62

22

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

23

HORN ASSY

38500-48B00

Unavailable

24

BOLT | MODEL J/K/L/M This part replaces 01107-06165.

01500-0616A

$1.78

24

BOLT | MODEL N/P This part replaces 01137-06165.

01570-0616A

$2.23

25

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

26

RELAY ASSY, SIDE STAND This part replaces 38740-24B10.

38740-24X50

$45.20

27

RELAY, MOTOR CONTROL

38750-48B00

Unavailable

28

CONTROLLER ASSY, FAN MOTOR | CALIFORNIA ONLY

38870-48B00

Unavailable
