1993 Suzuki GSX1100F Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1993 Suzuki GSX1100F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

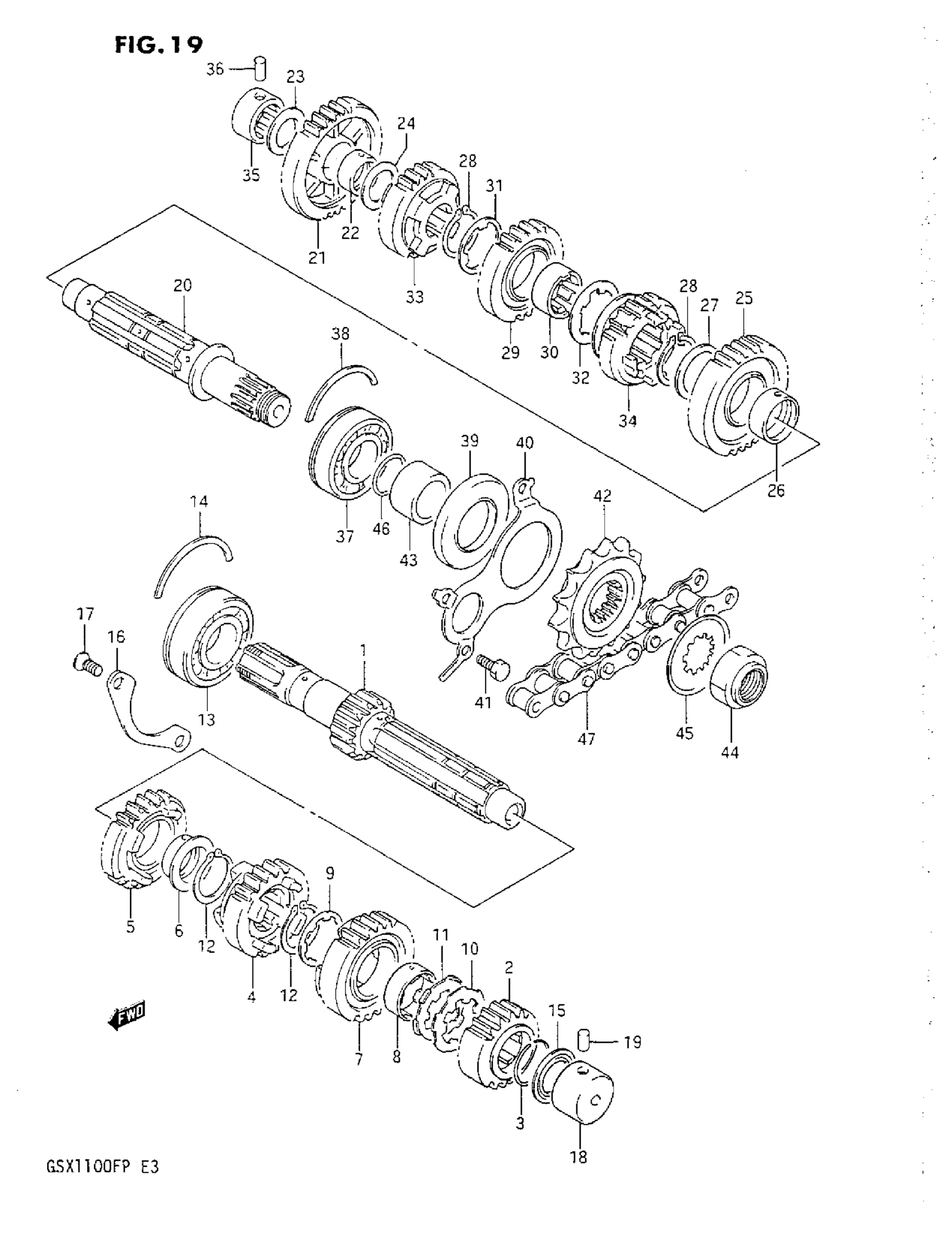

1993 Suzuki GSX1100F Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT (NT:13) | MODEL J/K/L/M/N This part replaces 24121-48B01.

24121-48B10

1
Out of stock

1

C OUNTERSHAFT (NT:13) | MODEL P

24121-48B10

1
Out of stock

2

GEAR, 2ND DRIVE (NT:19) | MODEL J/K/L/M/N This part replaces 24221-48B00.

24221-48B10

1
Out of stock

2

GEAR, 2ND DRIVE (NT:19) | MODEL P

24221-48B10

1
Out of stock

3

CIRCLIP

09380-25012

1
Out of stock

4

GEAR,3RD DRIVE, This part replaces 24231-48B01.

24231-48B10

1
Out of stock

5

GEAR,4TH DRIVE, This part replaces 24241-48B00.

24241-48B50

1
Out of stock

6

BUSH, 2ND DRIVEN This part replaces 09301-25001.

24322-19F00

1
Out of stock

7

GEAR,5TH DRIVE This part replaces 24251-48B02.

24251-48B30

1
Out of stock

8

BUSH

24252-48B00

1
Out of stock

9

WASHER,LOCK (25.1X33X1.0)

09167-25021

1
Out of stock

10

WASHER,LOCK (25.1X41X1.5)

09167-25013

1
Out of stock

11

WASHER, LOCK

09169-25001

1
Out of stock

12

SNAP RING

09380-25003

2
Out of stock

13

BEARING, LH This part replaces 09262-25051.

09262-25105

1
Out of stock

14

C RING This part replaces 09390-62006.

09390-62012

1
Out of stock

15

OIL SEAL

09285-20006

1
Out of stock

16

HOLDER, BEARING

24741-27A00

1
Out of stock

17

SCREW

02122-06167

2
Out of stock

18

BEARING(20X34X1 This part replaces 09263-20049.

09263-20119

1
Out of stock

19

PIN

04221-07129

1
Out of stock

20

DRIVESHAFT

24131-48B00

1
Out of stock

21

GEAR, 1ST DRIVEN (NT:31) | MODEL J/K/L/M/N This part replaces 24311-48B00.

24311-48B20

1
Out of stock

21

GEAR, 1ST DRIVEN (NT:31) | MODEL P This part replaces 24311-48B10.

24311-48B20

1
Out of stock

22

BUSH, 1ST DRIVEN This part replaces 09300-22005.

24312-02F00

1
Out of stock

23

WASHER, RH

08211-20341

1
Out of stock

24

WASHER, LH

08211-22341

1
Out of stock

25

GEAR, 2ND DRIVEN (NT:31) | -E.NO.107046 ->24321-48B02 W/24351-48B03 This part replaces 24321-48B00.

24321-48B10

1
Out of stock

25

GEAR, 2ND DRIVEN (NT:31) | E.NO.107047- This part replaces 24321-48B02.

24321-48B10

1
Out of stock

25

GEAR, 2ND DRIVEN (NT:31) | MODEL P

24321-48B10

1
Out of stock

26

BUSH

09300-28002

1
Out of stock

27

WASHER

08211-28361

1
Out of stock

28

CIRCLIP This part replaces 08331-31286.

08331-31289

2
Out of stock

29

GEAR,3RD DRIVEN | MODEL J/K This part replaces 24331-48B02.

24331-48B30

1
Out of stock

29

GEAR,3RD DRIVEN | MODEL L/M/N/P This part replaces 24331-48B03.

24331-48B30

1
Out of stock

30

BUSH, 3RD DRIVEN GEAR This part replaces 24332-48B00.

24332-48B01

1
Out of stock

31

WASHER, RH

09167-28001

1
Out of stock

32

WASHER, LH (T :2)

09167-28008

1
Out of stock

33

GEAR,4TH DRIVEN This part replaces 24341-06B01.

24341-06B30

1
Out of stock

34

GEAR, 5TH DRIVEN (NT:21) | -E.NO.107046 ->24351-48B03 W/24321-48B02 This part replaces 24351-48B01.

24351-48B06

1
Out of stock

34

GEAR, 5TH DRIVEN (NT:21) | E.NO.107047- This part replaces 24351-48B03.

24351-48B06

1
Out of stock

35

BEARING, RH

09263-20040

1
Out of stock

36

PIN (L:20)

04221-07209

1
Out of stock

37

BEARING, LH

09262-25103

1
Out of stock

38

C RING This part replaces 09390-62006.

09390-62012

1
Out of stock

39

OIL SEAL (34X62X6)

09283-34005

1
Out of stock

40

PLATE

24751-27A01

1
Out of stock

41

BOLT This part replaces 01107-06107.

01500-06107

4
Out of stock

42

SPROCKET, ENGINE (NT:15)

27510-48B00

1
Out of stock

43

SPACER (25X34X19.7)

09180-25093

1
Out of stock

44

NUT

09159-20004

1
Out of stock

45

WASHER, LOCK

09167-25019

1
Out of stock

46

0 RING (D:1, ID:24.5)

09280-25001

1
Out of stock

47

CHAIN, DRIVE (RK532GSV2X118LE | MODEL J This part replaces 27600-48B10-118.

27600-40C20-118

1
Out of stock

47

CHAIN, DRIVE (DID532ZLVX122LE) | MODEL K/L/M/N/P

27600-48B10-122

1
Out of stock
