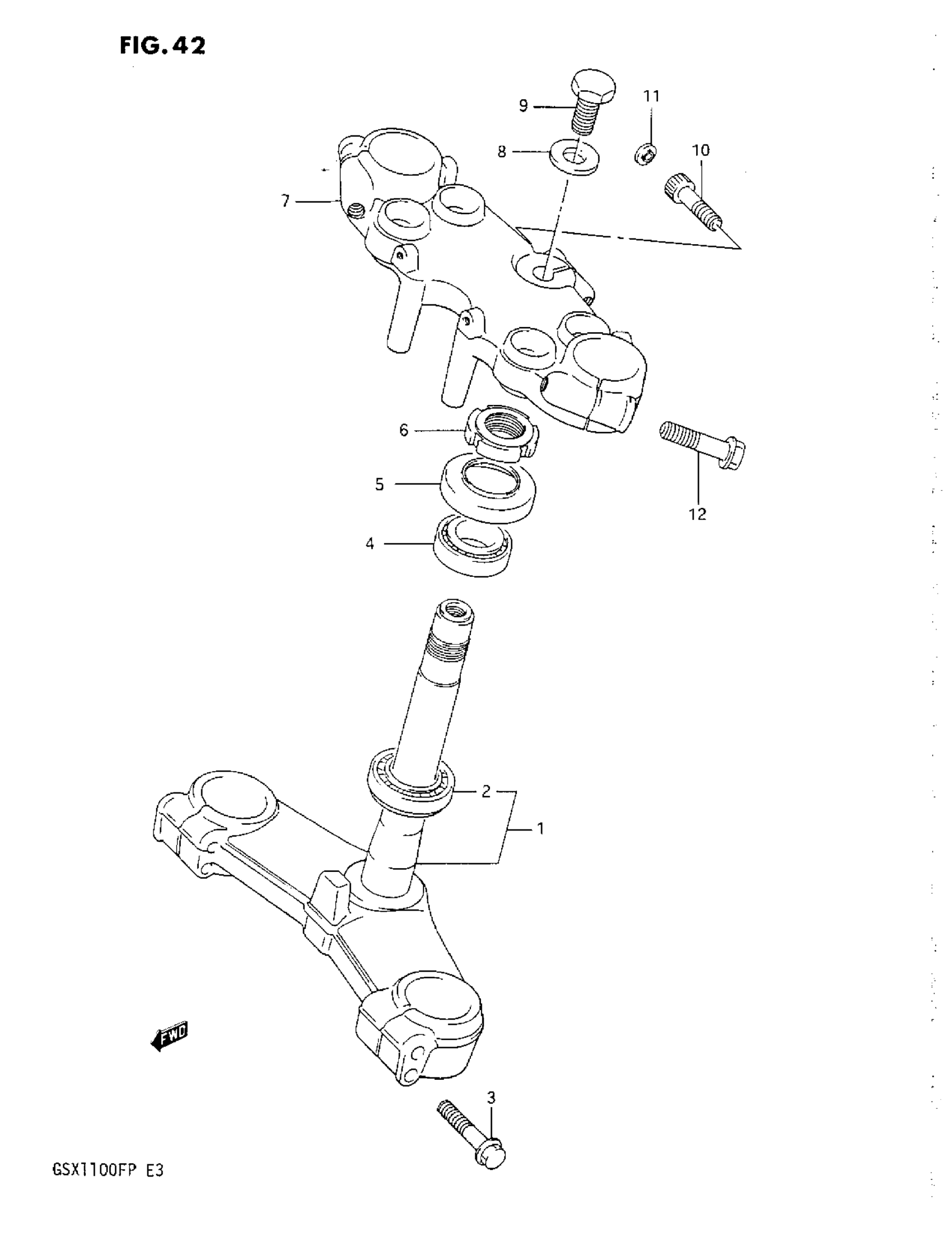

Suzuki GSX1100F (1993) STEERING STEM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 51410-48B31.

51410-48C11

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K/L/M/N/P This part replaces 51410-48B42.

51410-48C11

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

BOLT This part replaces 01517-08455.

01550-0845A

$3.14

4

BEARING

09265-25008

Unavailable

5

SEAL,DUST | MODEL J/K/L/M/N This part replaces 51643-40502.

51643-40503

$6.15

5

SEAL, STEERING DUST | MODEL P This part replaces 51643-34A00.

51643-49002

$12.32

6

NUT, STEERING STEM

51631-28000

$17.37

7

HEAD, STEERING STEM

51311-48B31

Unavailable

8

WASHER This part replaces 51356-31305.

51356-43530

$6.55

9

BOLT

51352-31305

Unavailable

10

BOLT, STEERING DAMPER This part replaces 07110-08305.

07130-0830A

$1.74

11

CAP

09250-06004

$1.49

12

BOLT This part replaces 01517-10405.

01550-1040A

$3.55
