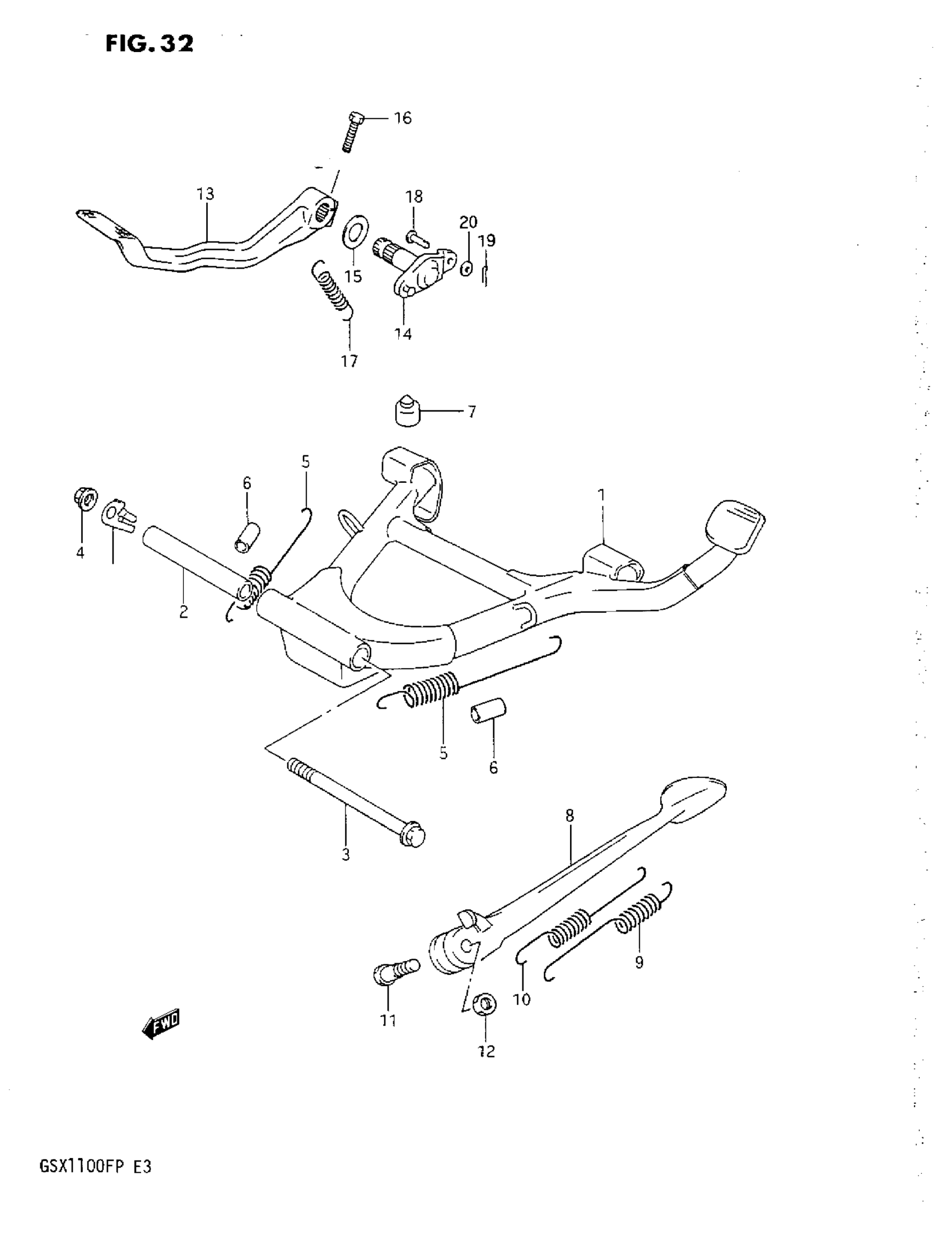

Suzuki GSX1100F (1993) STAND Diagram

#

Description
Price

1

STAND, CENTER | MODEL J This part replaces 42100-48B12.

42100-48C10

Unavailable

1

STAND, CENTER | MODEL K/L This part replaces 42100-48C00.

42100-48C10

Unavailable

1

STAND, CENTER | MODEL M/N/P

42100-48C10

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 09180-10119.

09180-10150

Unavailable

3

BOLT

09103-10198

Unavailable

4

NUT (M10)

09159-10060

$1.94

5

SPRING This part replaces 09443-17021.

09443-17021-XC0

Unavailable

6

HOSE(7X11X600) This part replaces 09352-70113-300.

09352-70119-600

$10.40

7

CUSHION

09321-10001

$2.61

8

STAND, PROP | MODEL J/K/L This part replaces 42310-48B41.

42310-48B42

Unavailable

8

STAND, PROP | MODEL M/N/P

42310-48B42

Unavailable

9

SPRING, NO.1

09443-15040

Unavailable

10

SPRING, NO.2

09443-14051

Unavailable

11

BOLT

09111-10036

$4.82

12

NUT This part replaces 08310-22105.

09140-10043

$2.68

13

NO DESCRIPTION AVAILABLE This part replaces 43111-48B10.

43111-48B11

Unavailable

14

ARM, BRAKE PEDAL ROD

43120-48B11

Unavailable

15

WASHER, BRAKE BOSS

43212-48B00

Unavailable

16

BOLT This part replaces 01127-08257.

01550-08257

$2.81

17

SPRING This part replaces 09443-14026.

09443-14046

$6.46

18

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

19

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

20

WASHER This part replaces 08322-21067.

08322-01067

$2.13
