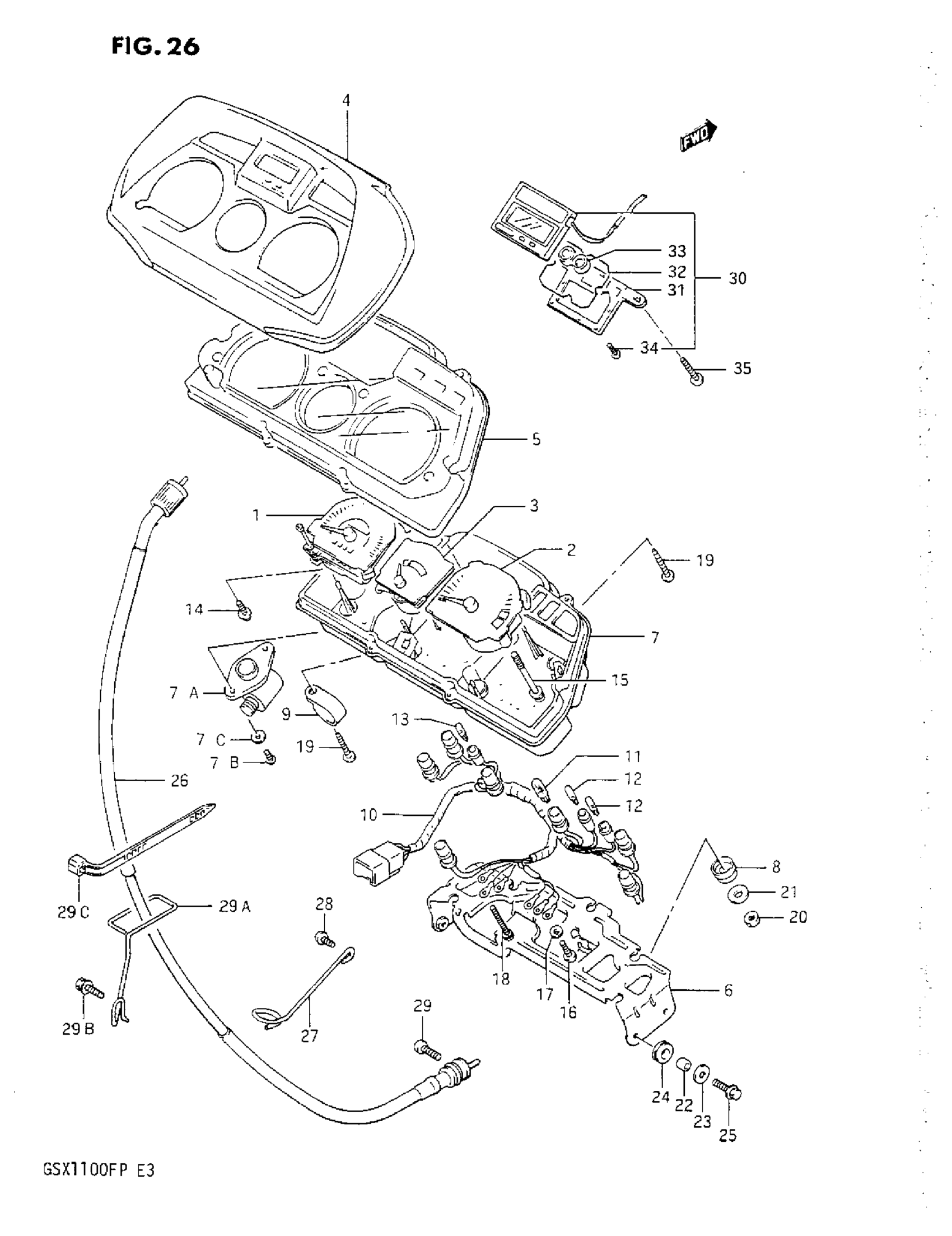

Suzuki GSX1100F (1993) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | MODEL J This part replaces 34110-48B30.

34110-48B33

Unavailable

1

SPEEDOMETER (MILE/KILO) | MODEL K/L/M/N/P

34110-48B33

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 34210-48B11.

34210-48B12

Unavailable

3

FUEL METER

34310-48B10

Unavailable

4

VISOR | MODEL J This part replaces 34151-48B10.

34151-48B60

Unavailable

4

VISOR | MODEL K/L/M/N/P

34151-48B60

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 34112-48B30.

34112-48B60

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL K/L/M/N/P This part replaces 34112-48B90.

34112-48B60

Unavailable

6

BRACKET

34950-48B10

Unavailable

7

CASE

34111-48B11

Unavailable

7

GEAR BOX

34131-48B10

Unavailable

7

SCREW This part replaces 02112-34128.

02112-3412B

$2.30

7

WASHER (4.5X16X1.2) This part replaces 09160-04014.

09160-04026

$2.05

8

RUBBER

34189-24A30

Unavailable

9

CLAMP

36385-48B10

Unavailable

10

SOCKET & CORD

34175-48B10

Unavailable

11

BULB (12VX3.4W)

09471-12028

$1.99

12

BULB (14VX3W)

09471-12103

$3.83

13

.BULB (12V1.7W)

09471-12108

$3.42

14

SCREW

02152-04086

Unavailable

15

SCREW (4X36)

34283-32B00

Unavailable

16

SCREW This part replaces 02112-03126.

02112-0312B

Unavailable

17

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

18

SCREW

34383-09400

Unavailable

19

SCREW This part replaces 03241-04166.

03242-0416B

$2.93

20

NUT This part replaces 08310-11057.

08310-00057

$1.84

21

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

22

SPACER This part replaces 09180-06027.

09180-06258

$1.81

23

WASHER This part replaces 09160-06006.

09160-06084

$1.78

24

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

25

BOLT This part replaces 01517-06206.

01550-0620A

$1.97

26

CABLE, SPEEDOMETER | MODEL J This part replaces 34910-42A00.

34910-48B00

Unavailable

26

CABLE, SPEEDOMETER | MODEL K/L/M/N/P

34910-48B00

Unavailable

27

GUIDE | MODEL J

34938-45100

$6.57

27

GUIDE | MODEL K/L/M/N/P

34938-37000

$3.73

28

BOLT This part replaces 01517-06108.

01550-06107

$2.80

29

SCREW

02112-05164

$2.63

29

GUIDE | MODEL K/L/M/N/P

34938-48B00

Unavailable

29

BOLT | MODEL K/L/M/N/P This part replaces 01117-06165.

01550-0616A

$1.97

29

CLAMP | MODEL K/L/M/N/P

09407-14403

$2.26

30

CLOCK ASSY

34600-48B00

Unavailable

31

CASE, LOWER

34652-48B00

Unavailable

32

GASKET

34653-48B00

Unavailable

33

BATTERY, LITHIUM

34649-48B00

Unavailable

34

SCREW, TAPPING

34655-48B00

Unavailable

35

SCREW (3X16)

09132-03008

$1.53
