SEAT TAIL COVER (J/K/L)

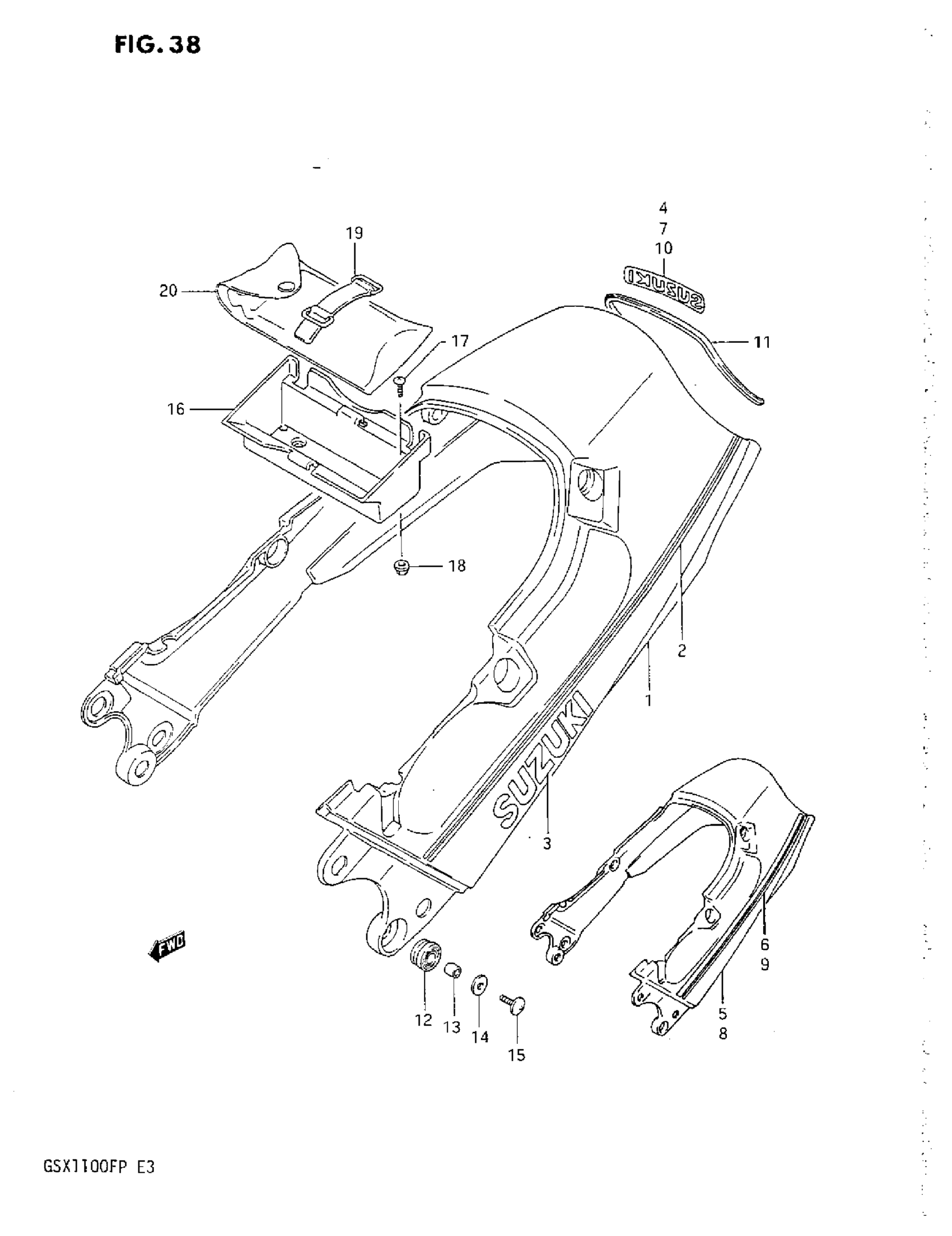

Suzuki GSX1100F (1993) SEAT TAIL COVER (J/K/L) Diagram
#
Description
Price
1
NO DESCRIPTION AVAILABLE | MODEL J This part replaces 45500-48B40-24V.
45500-48840-24V
Unavailable
1
NO DESCRIPTION AVAILABLE | MODEL J This part replaces 45500-48B40-24D.
45500-48890
Unavailable
2
NO DESCRIPTION AVAILABLE | MODEL J FOR 24V This part replaces 68160-48B00-8RZ.
68160-48B01-8RZ
Unavailable
2
NO DESCRIPTION AVAILABLE | MODEL J FOR 24D This part replaces 68160-48B00-9YN.
68160-48B01-9YN
Unavailable
3
EMBLEM | MODEL J FOR 24V This part replaces 68111-43400-742.
68111-43400-13L
Unavailable
3
EMBLEM, SIDE (GOLD) | MODEL J FOR 24D
68111-43400-764
Unavailable
4
EMBLEM, REAR (SILVER) | MODEL J FOR 24V This part replaces 68271-34A00-05F.
68271-34A00-13L
Unavailable
4
NO DESCRIPTION AVAILABLE | MODEL J FOR 24D This part replaces 68271-34A00-764.
68271-34A00-38Z
Unavailable
5
COVER, SEAT TAIL (BLACK) | MODEL K , W/CLEAR
45500-48850-33J
Unavailable
5
NO DESCRIPTION AVAILABLE | MODEL K , N/CLEAR This part replaces 45500-48851-33J.
45500-48890
Unavailable
6
NO DESCRIPTION AVAILABLE | MODEL K This part replaces 68160-48B30-3BD.
68160-48B31-3BD
Unavailable
7
EMBLEM | MODEL K This part replaces 68271-34A00-12R.
68271-34A00-23S
Unavailable
8
COVER SET, SEAT TAIL (BLACK) | MODEL L
45500-48870-33J
Unavailable
9
TAPE SET, SEAT TAIL | MODEL L
68160-48B50-3WN
Unavailable
10
NO DESCRIPTION AVAILABLE | MODEL L This part replaces 68271-34A00-764.
68271-34A00-38Z
Unavailable
12
CUSHION, SIDE
47161-48B10
Unavailable
13
NO DESCRIPTION AVAILABLE This part replaces 09180-06193.
09180-06318
Unavailable
16
HOLDER, TOOL
47431-48B10
Unavailable
18
NUT
08316-26046
Unavailable
20
TOOL ASSY This part replaces 09800-00351.
09800-21068
Unavailable
