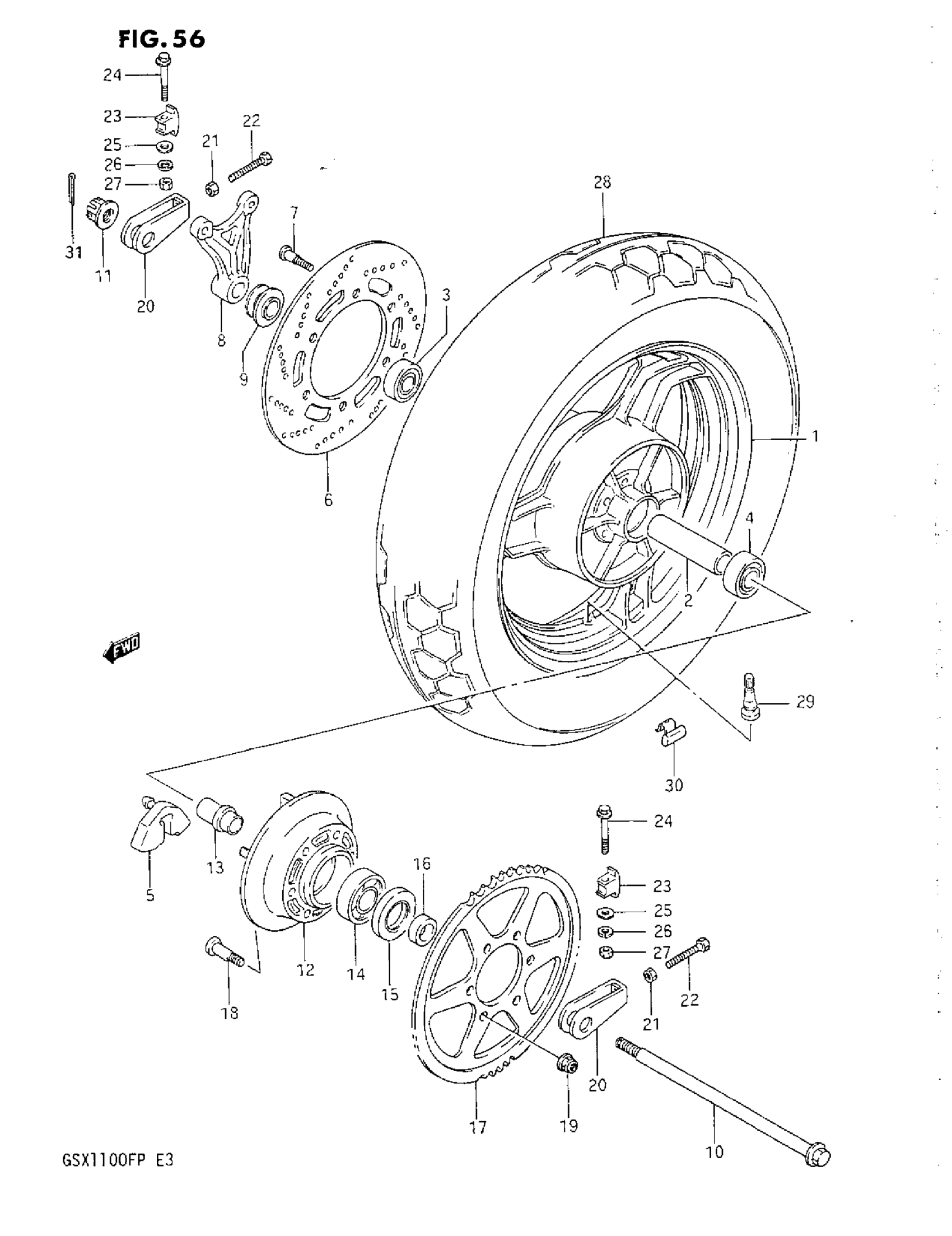

Suzuki GSX1100F (1993) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (MT3.50X16) BLACK

64111-48B00-291

Unavailable

2

SPACER

64731-48B00

Unavailable

3

BEARING | MODEL J This part replaces 08123-62047.

08123-6204B

$17.41

3

BEARING, RH | MODEL K/L/M/N/P

09262-20114

$32.57

4

BEARING, LH

09262-20042

$23.28

5

ABSORBER, HUB

64651-31001

$11.19

6

DISC, REAR BRAKE

69211-48B10

Unavailable

7

BOLT (8X33) | MODEL J/K/L/M/N This part replaces 09106-08062.

09106-08148

$4.80

7

BOLT (8X33) | MODEL P This part replaces 09106-08082.

09106-08148

$4.80

8

BRACKET, CALIPER

69721-47011

Unavailable

9

SPACER, RH

64740-48B00

Unavailable

10

AXLE, REAR

64711-48B11

Unavailable

11

NUT

09159-18012

Unavailable

12

DRUM, SPROCKET

64611-31003

Unavailable

13

RETAINER

64733-48B00

$27.45

14

BEARING

09262-25073

$25.92

15

SEAL,OIL (35X62X8)

09285-35001

$10.19

16

SPACER, LH

64751-48B10

Unavailable

17

SPROCKET, REAR (NT:52)

64511-48B11

Unavailable

18

BOLT (10X38) This part replaces 09119-10027.

09119-10059

$3.12

19

NUT

08319-31107

$2.73

20

ADJUSTER, CHAIN

61410-31001

$49.02

21

NUT | MODEL J/K/L This part replaces 08310-12088.

08310-00087

$2.13

21

NUT | MODEL M/N/P This part replaces 08310-11088.

08310-00087

$2.13

22

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

23

SUPPORTER,CHAIN This part replaces 61433-31000.

61433-3100V

Unavailable

24

BOLT This part replaces 01517-08558.

01550-08557

$3.74

25

WASHER This part replaces 08322-11088.

08322-01087

$2.13

26

.LOCK WASHER This part replaces 08321-31087.

08321-01087

$2.13

27

NUT | MODEL J/K/L This part replaces 08310-12088.

08310-00087

$2.13

27

NUT | MODEL M/N/P This part replaces 08310-11088.

08310-00087

$2.13

28

TIRE, REAR (150/80V16V250) (METZELER) | MODEL J EXECUTED LOCALLY

65100-48BA0

Unavailable

28

TIRE, REAR (150/80VB16 V250) (METZELER) | MODEL K/L/M EXECUTED LOCALLY ->65110-48BCO

65100-48BC0

Unavailable

28

TIRE, REAR (150/80VB16 V250) | MODEL N/P EXECUTED LOCALLY This part replaces 65110-48BC0.

65100-48BC0

Unavailable

29

VALVE ASSY, WHEEL RIM | MODEL J This part replaces 43130-75150.

43130-78030

$9.25

29

VALVE ASSY | MODEL K/L/M/N/P

43130-24A00

$8.85

30

BALANCER (10G) | 0-3, U.R.

55411-00A00

$1.49

30

BALANCER, WHEEL NO.2 | 0-3, U.R. This part replaces 55412-00A00.

55412-17G00

$7.05

30

BALANCER (30G) | 0-3, U.R. This part replaces 55413-00A00.

55413-00A01

Unavailable

31

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49
