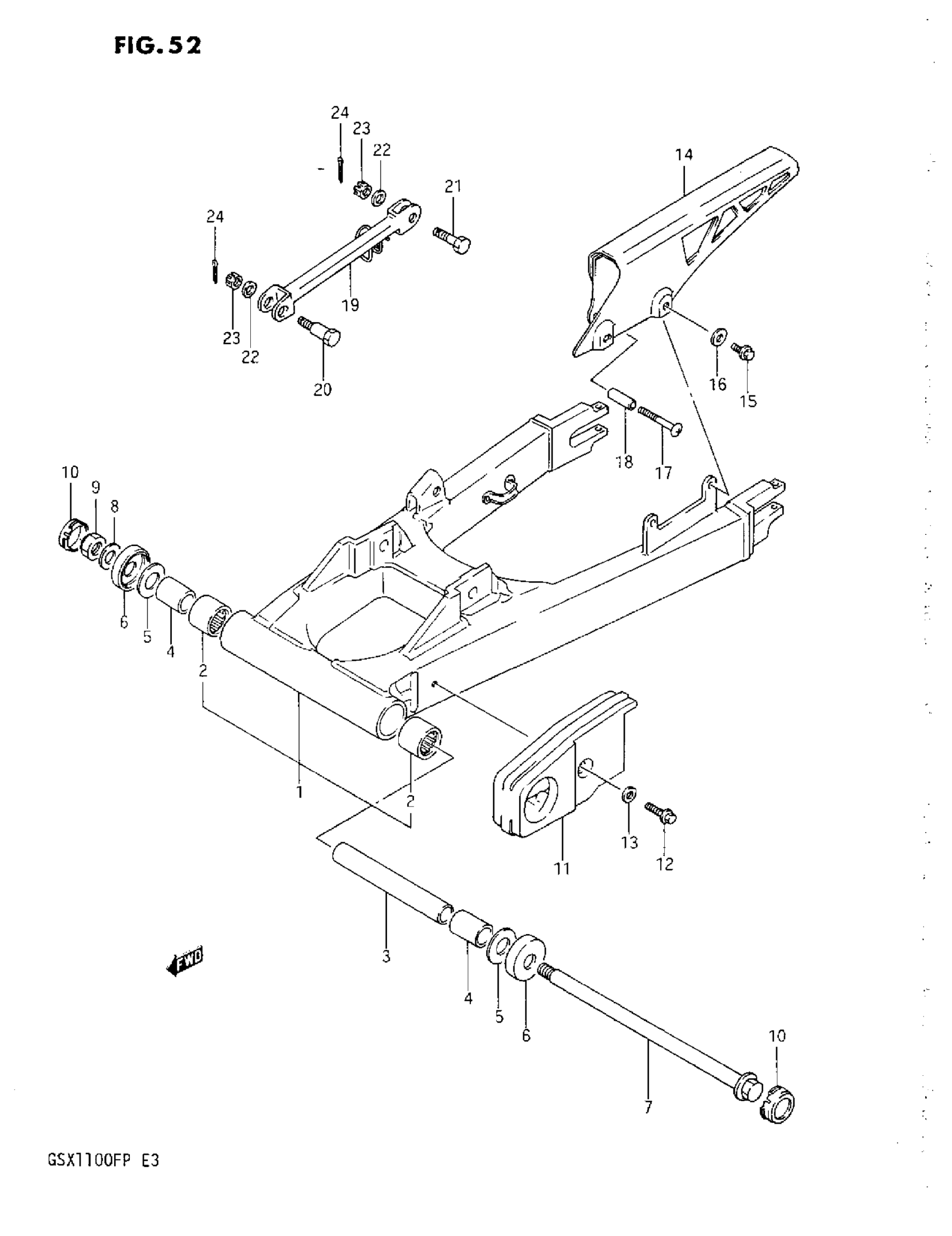

Suzuki GSX1100F (1993) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | MODEL J

61000-48B10

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL K/L/M/N/P

61000-48C00

Unavailable

2

BEARING

09263-25024

$25.92

3

SPACER, CENTER

61282-48B00

Unavailable

4

SPACER, PIVOT SHAFT

61251-49000

$26.43

5

WASHER

08211-16381

$2.42

6

COVER,RR SWINGI This part replaces 61262-49201.

61262-49202

$10.33

7

SHAFT, SWINGING ARM PIVOT | MODEL J

61211-48B11

Unavailable

7

SHAFT, SWINGING ARM PIVOT | MODEL K/L/M/N/P

61211-20C00

Unavailable

8

WASHER

09160-14015

Unavailable

9

NUT This part replaces 09159-14013.

09159-14019

$11.61

10

CAP, SWINGING ARM PIVOT

61222-48B00

$6.80

11

BUFFER, CHAIN TOUCH DEFENSE

61273-48B11

Unavailable

12

BOLT This part replaces 01517-06207.

01550-06207

$2.30

13

WASHER

09169-06040

$1.92

14

CASE, CHAIN

61310-48B00

Unavailable

15

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

16

WASHER

09169-06026

$2.20

17

NO DESCRIPTION AVAILABLE This part replaces 02142-06558.

02142-06557

Unavailable

18

SPACER

09180-06130

Unavailable

19

TORQUE LINK, REAR

64310-48B10

Unavailable

20

BOLT,10X39 This part replaces 09111-10011.

09111-10022-XC0

Unavailable

21

BOLT, REAR

09101-10039

Unavailable

22

WASHER, KNUCKLE END This part replaces 08322-11104.

08322-0110A

$1.84

23

NUT This part replaces 08314-41108.

08314-4010B

$2.50

24

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
