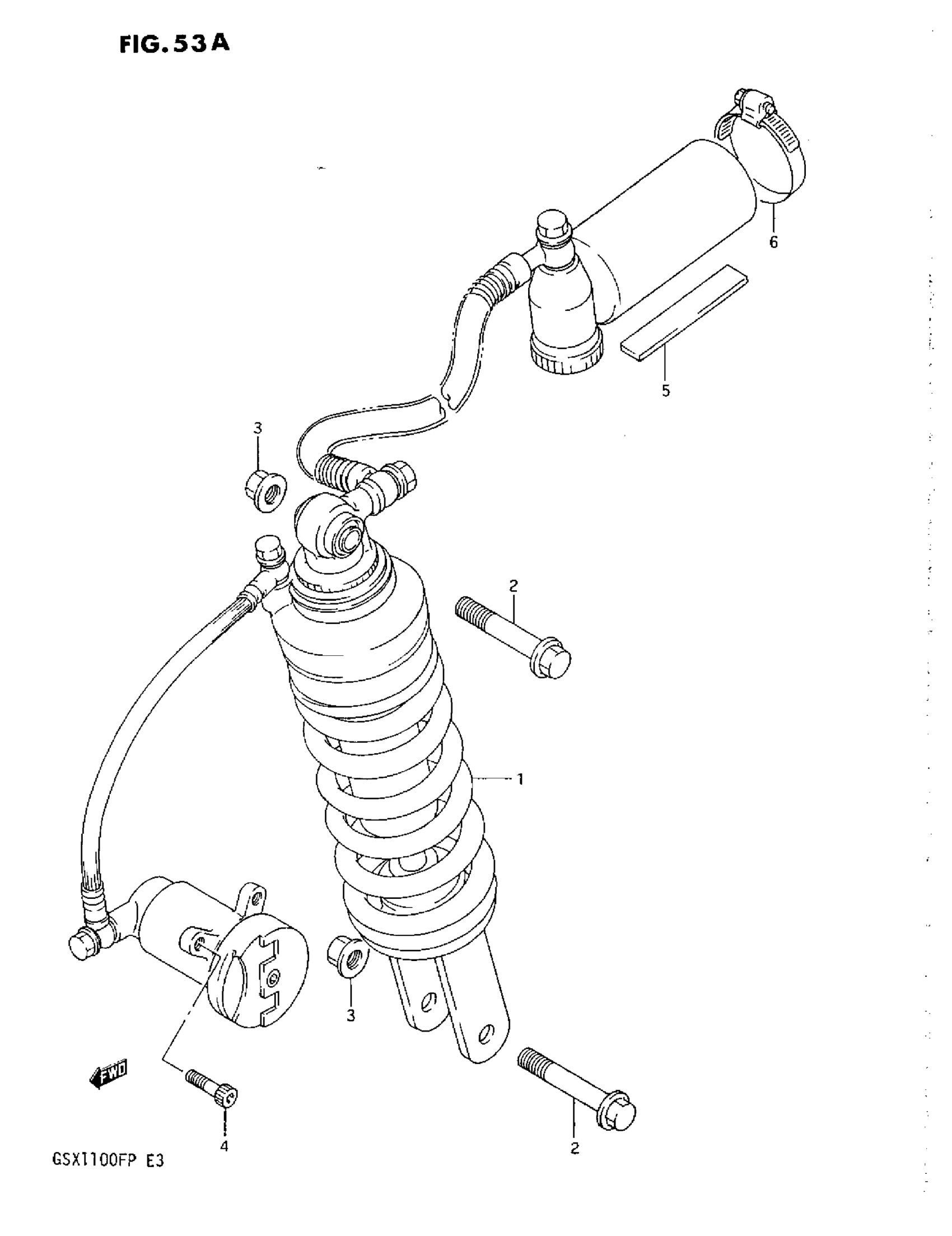

Suzuki GSX1100F (1993) REAR SHOCK ABSORBER (K/L/M/N/P) Diagram

#

Description

Price

1

ABSORBER ASSY, REAR SHOCK | MODEL K/L This part replaces 62100-48B30.

62100-48C01

Unavailable

1

ABSORBER ASSY, REAR SHOCK | MODEL M This part replaces 62100-48C00.

62100-48C01

Unavailable

1

ABSORBER ASSY, REAR SHOCK | MODEL N/P

62100-48C01

Unavailable

2

BOLT

09103-10101

$4.00

3

NUT

08319-31107

$2.73

4

BOLT This part replaces 07120-06168.

07120-06167

$3.16

5

CUSHION, TANK

62331-48B00

Unavailable

6

CLAMP This part replaces 09402-43501.

09402-50511

$11.73
