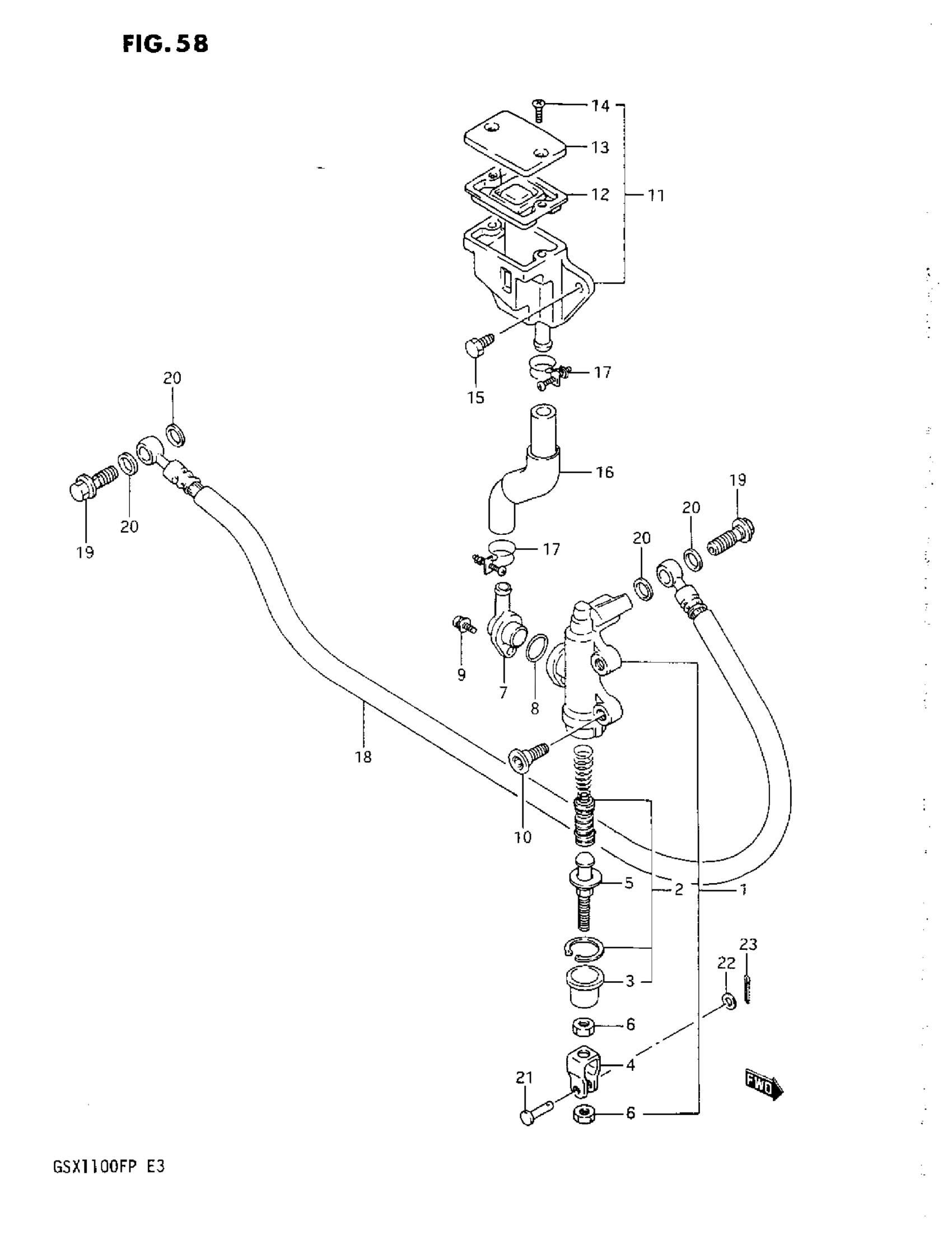

Suzuki GSX1100F (1993) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-48B00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-16830.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-27A30

$13.81

5

ROD, PUSH

69670-48B00

$26.97

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-05A00

$5.56

8

O-RING

69686-34200

$2.93

9

.SCREW This part replaces 02112-74125.

02112-7412A

$2.12

10

BOLT

09106-08076

$5.07

11

TANK ASSY,RR RESERVOIR | MODEL J/K This part replaces 69740-48B00.

69740-01D02

$70.49

11

TANK ASSY,RR RESERVOIR | MODEL L This part replaces 69740-01D00.

69740-01D02

$70.49

11

TANK ASSY,RR RESERVOIR | MODEL M/N This part replaces 69740-01D01.

69740-01D02

$70.49

11

TANK ASSY,RR RESERVOIR | MODEL P

69740-01D02

$70.49

12

DIAPHRAGM

59667-04700

$9.78

13

CAP | MODEL J/K This part replaces 69669-24A00.

69669-24A01

$15.10

13

CAP | MODEL L/M/N

69669-24A01

$15.10

13

CAP | MODEL P

59669-05D00

$16.76

14

SCREW

69689-04A00

$1.78

15

BOLT This part replaces 01107-06127.

01500-06127

$1.97

16

HOSE, RESERVOIR

69731-48B00

Unavailable

17

CLAMP This part replaces 09400-16302.

09400-16304

$3.10

18

HOSE, REAR BRAKE | MODEL J/K/L/M/N This part replaces 69480-48B01.

69480-48B10

Unavailable

18

HOSE, REAR BRAKE | MODEL P

69480-48B10

Unavailable

19

BOLT

09360-10017

$3.42

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

22

WASHER This part replaces 08322-21067.

08322-01067

$2.13

23

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
