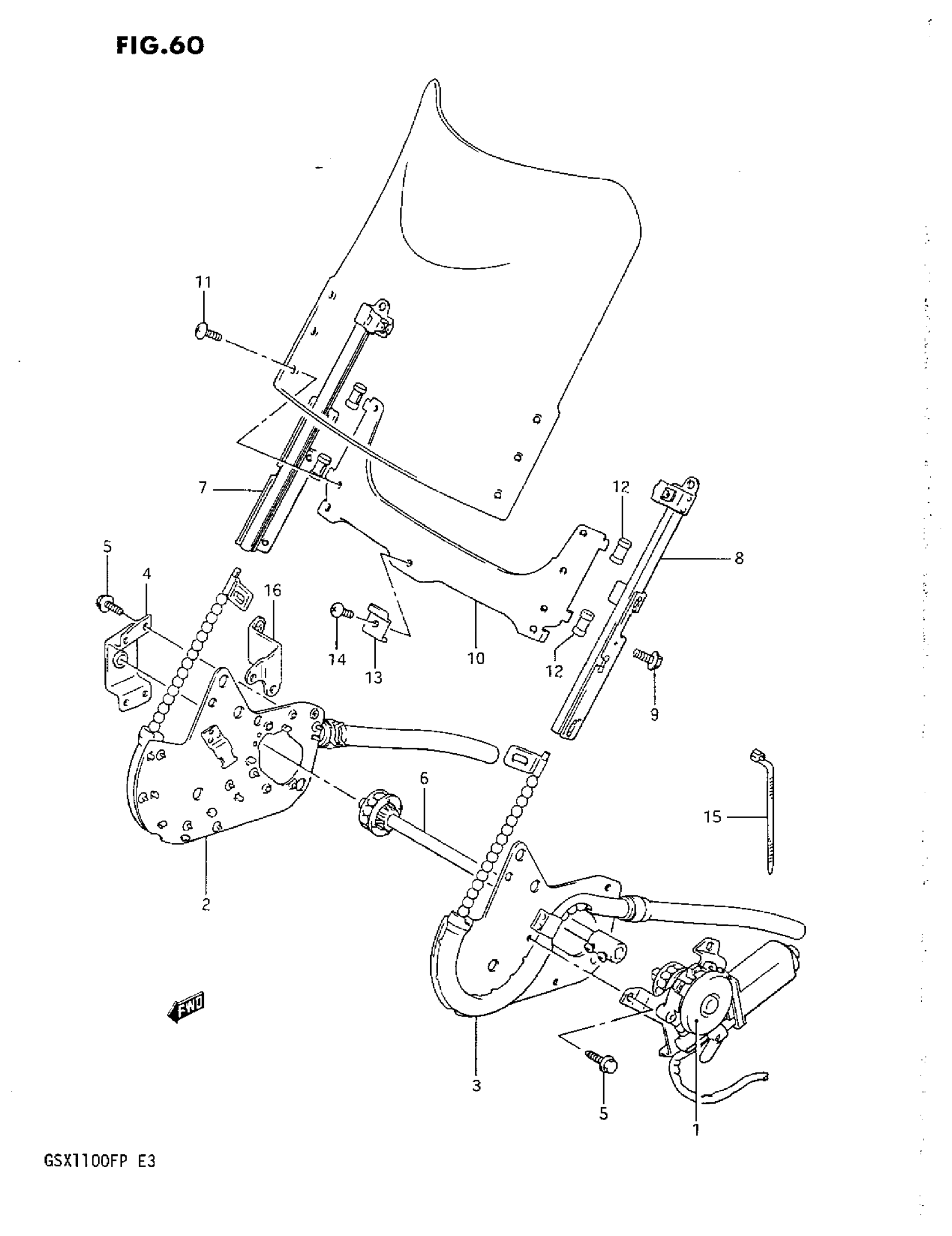

Suzuki GSX1100F (1993) POWER SCREEN Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 94600-48810.

94600-48811

Unavailable

2

FRAME SET, RH

94600-48820

Unavailable

3

FRAME SET, LH

94600-48860

Unavailable

4

METAL BRACKET SET

94600-48830

Unavailable

5

BOLT This part replaces 01517-05106.

01550-0510A

$2.43

6

SHAFT SET

94600-48840

Unavailable

7

GUIDE PIPE SET, RH

94600-48850

Unavailable

8

GUIDE PIPE SET, LH

94600-48870

Unavailable

9

BOLT, CLAMP This part replaces 01517-06126.

01550-0612A

$1.97

10

BRACKET, SCREEN

94621-48B00

Unavailable

11

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

12

RUBBER, SLIDE

94622-48B00

Unavailable

13

BRACKET, SUPPORT

94623-48B00

Unavailable

14

SCREW, THROTTLE This part replaces 02112-05105.

02112-0510A

$1.49

15

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

16

BRACKET | CALIFORNIA ONLY

94626-48B00

Unavailable
