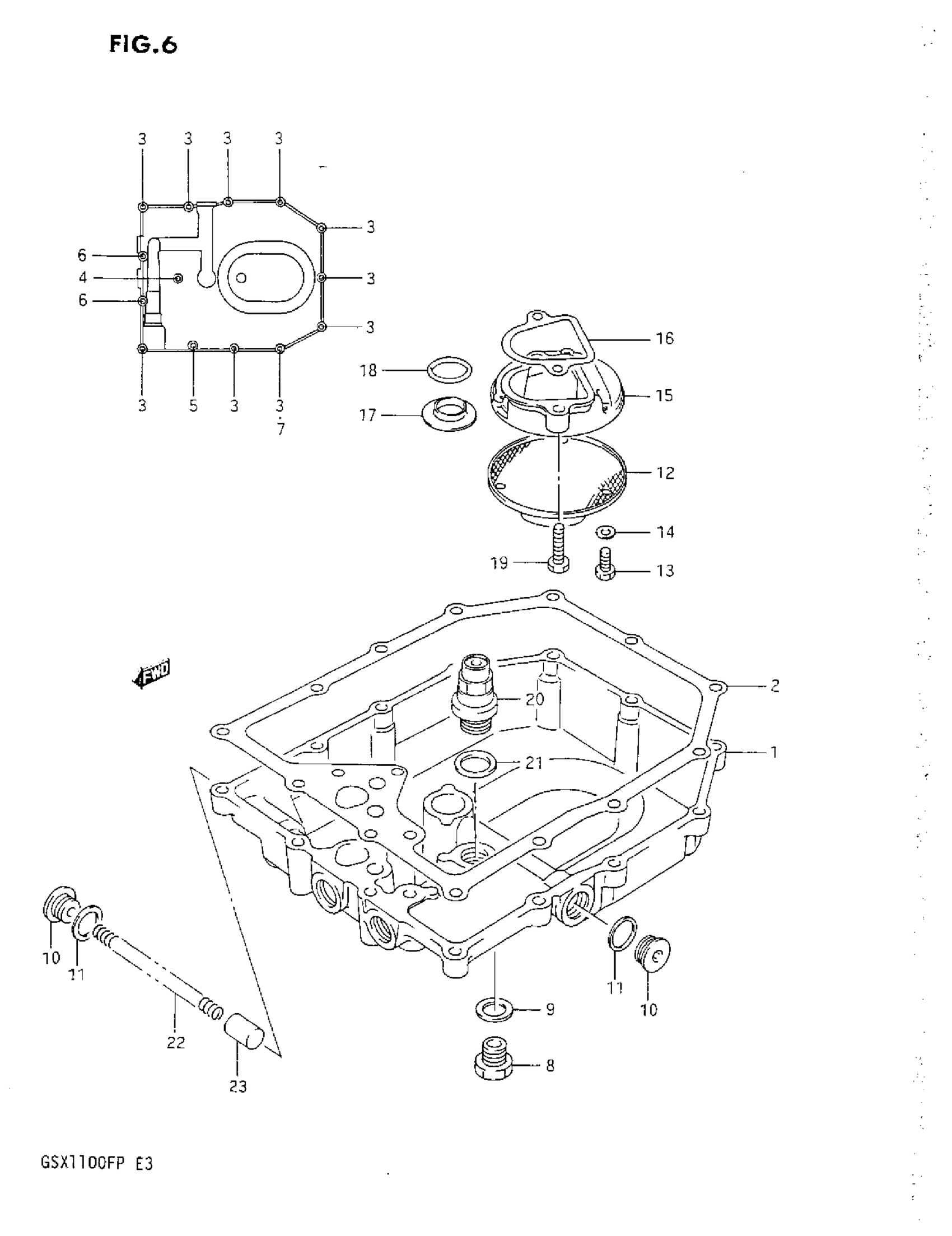

Suzuki GSX1100F (1993) OIL PAN Diagram

#

Description
Price

1

PAN, OIL | -E.NO.105150 This part replaces 11511-48B02.

11511-19C00

Unavailable

1

PAN, OIL | E.NO.105151 -

11511-19C00

Unavailable

2

O RING, OIL PAN | MODEL J/K/L This part replaces 11489-27A00.

11489-27A21

$16.33

2

O RING, OIL PAN | MODEL M/N This part replaces 11489-27A10.

11489-27A21

$16.33

2

O RING, OIL PAN | MODEL P This part replaces 11489-27A20.

11489-27A21

$16.33

3

BOLT | -E.NO.105150 This part replaces 07110-06255.

07130-0625B

$3.04

3

BOLT | E.NO.105151 - This part replaces 07110-06257.

07130-06257

$3.16

4

BOLT | -E.NO.105150 This part replaces 07110-06355.

07130-0635B

$3.37

4

NO DESCRIPTION AVAILABLE | E.NO.105151 - This part replaces 07110-06357.

07130-06357

Unavailable

5

BOLT, STATOR | -E.NO.105151 This part replaces 07110-06405.

07130-0640B

$3.38

5

BOLT | E.NO.105 151- This part replaces 07110-06408.

07130-06407

$3.68

6

BOLT | -E.NO.105150 This part replaces 07110-06455.

07130-0645B

$4.10

6

BOLT | E.NO.105151 - This part replaces 07110-06458.

07130-0645B

$4.10

7

GASKET

09168-06024

$2.20

8

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

9

GASKET

09168-14004

$1.83

10

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

$4.64

11

GASKET

09168-16002

$1.91

12

STRAINER, ENGINE OIL

16520-06B01

Unavailable

13

BOLT This part replaces 01107-06127.

01500-06127

$1.97

14

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

15

PROTECTOR, STRAINER

16525-48B01

Unavailable

16

GASKET, OIL STR PROTECTOR | MODEL J/K/L This part replaces 16528-27A02.

16528-27A21

$5.78

16

GASKET, OIL STR PROTECTOR | MODEL M/N This part replaces 16528-27A10.

16528-27A21

$5.78

16

GASKET, OIL STR PROTECTOR | MODEL P This part replaces 16528-27A20.

16528-27A21

$5.78

17

GASKET, OIL OUTLET

16529-27A01

$2.15

18

O-RING

09280-18009

$5.83

19

BOLT This part replaces 01517-06257.

01550-06257

$2.30

20

VALVE ASSY, OIL RELIEF This part replaces 16440-48B00.

16440-17C10

$67.28

21

WASHER

09168-16002

$1.91

22

SPRING

09440-09027

Unavailable

23

PLUNGER, OIL CONTROL

16442-34301

Unavailable
