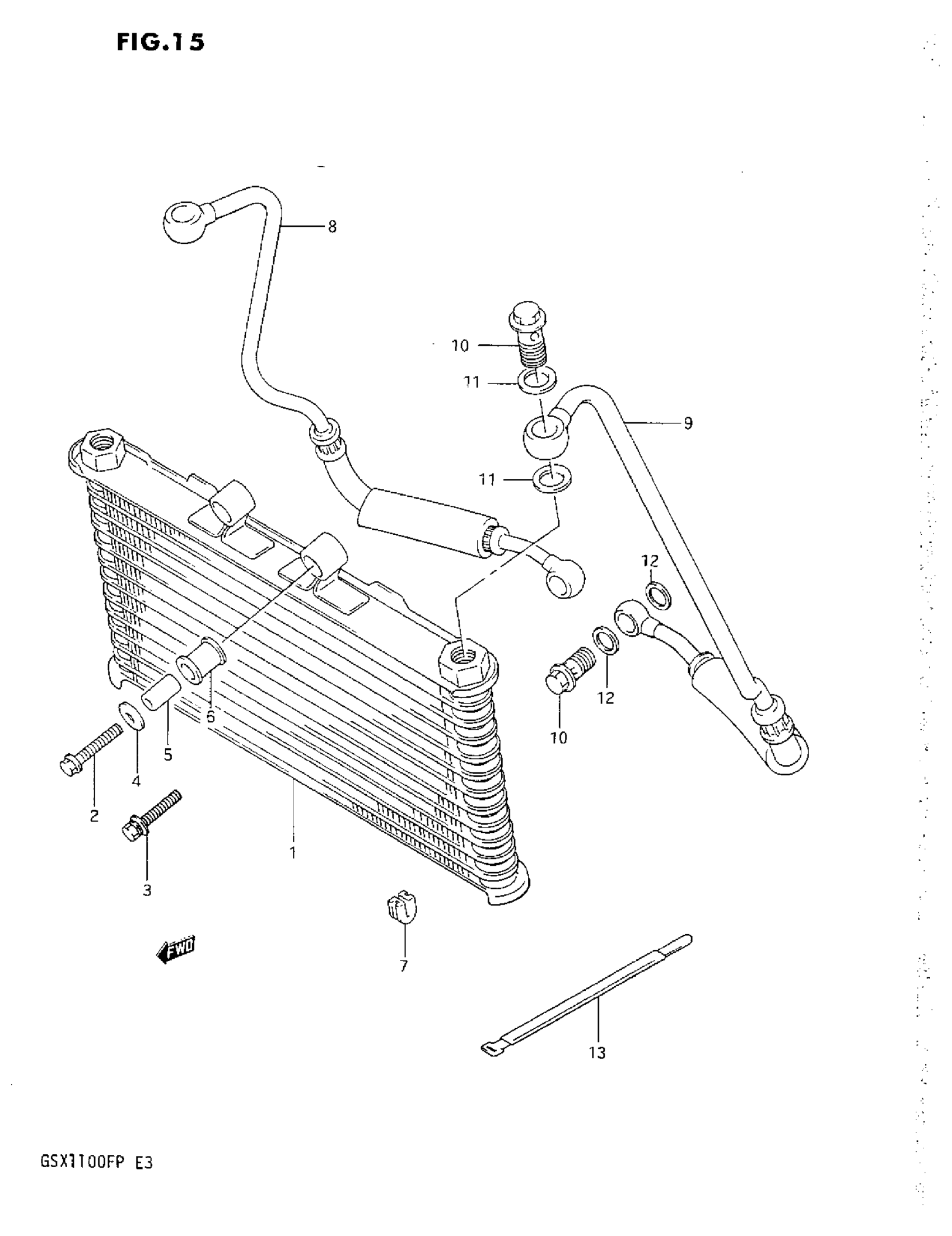

Suzuki GSX1100F (1993) OIL COOLER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 16600-48B01.

16600-48B02

Unavailable

2

BOLT This part replaces 01517-08405.

01550-08407

$3.42

3

BOLT (8X40)

09118-08131

$3.15

4

WASHER This part replaces 09160-08047.

09160-08130

$2.03

5

SPACER This part replaces 09180-08124.

09180-08304

$6.80

6

CUSHION, NO.1

16629-27A01

$4.52

7

CUSHION, NO.2

16628-27A00

$2.92

8

NO DESCRIPTION AVAILABLE This part replaces 16460-48B04.

16460-48B05

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 16470-48B03.

16470-48B04

Unavailable

10

BOLT, UNION

09360-16002

$14.34

11

GASKET (16X22X2) | ALUMINUM

09168-16003

$1.91

12

GASKET | COPPER

09168-16002

$1.91

13

CLAMP(L:250) | MODEL J/K This part replaces 09407-25301.

09407-25302

Unavailable

13

CLAMP(L:250) | MODEL L/M/N/P This part replaces 09407-21302.

09407-25302

Unavailable
