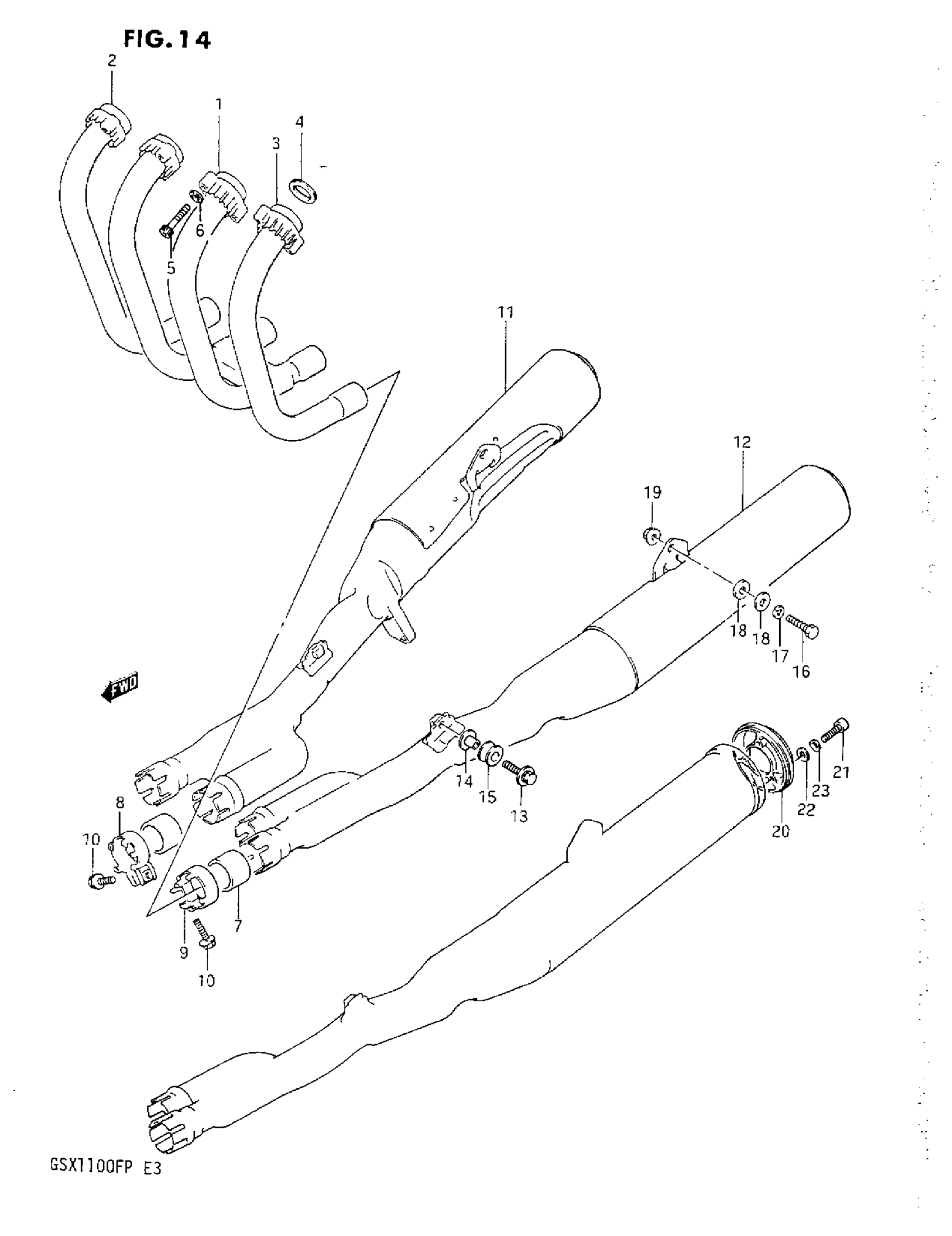

Suzuki GSX1100F (1993) MUFFLER Diagram

#

Description
Price

1

EXHAUST ASSY, CENTER

14100-48B01-H01

Unavailable

2

PIPE, EXHAUST RH

14150-48B01

Unavailable

3

PIPE, EXHAUST LH

14160-48B01

Unavailable

4

.GASKET,EXHAUST | MODEL J/K/L/M This part replaces 14181-48B00.

14181-18C00

$7.22

4

.GASKET,EXHAUST | MODEL N/P

14181-18C00

$7.22

5

BOLT This part replaces 07110-08355.

07130-0835B

$4.60

6

WASHER

09164-08015

$3.21

7

CONNECTOR, MUFFLER

14771-48B01

Unavailable

8

CLAMP,MUFFLER C This part replaces 14459-32C00.

14459-48B00

$12.50

9

CLAMP,MUFFLER C This part replaces 14469-32C00.

14469-48B00

Unavailable

10

BOLT (8X35) This part replaces 01517-08355.

01550-0835A

$3.04

11

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 14305-48B30-H01.

14305-48C11-H01

Unavailable

11

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 14305-48C30-H01.

14305-48C11-H01

Unavailable

11

NO DESCRIPTION AVAILABLE | MODEL L/M/N This part replaces 14305-48C80-H01.

14305-48C63-H01

Unavailable

11

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 14305-48C81-H01.

14305-48C63-H01

Unavailable

12

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 14306-48B30-H01.

14306-48C11-H01

Unavailable

12

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 14306-48C30-H01.

14306-48C11-H01

Unavailable

12

NO DESCRIPTION AVAILABLE | MODEL L/M/N This part replaces 14306-48C80-H01.

14306-48C63-H01

Unavailable

12

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 14306-48C81-H01.

14306-48C63-H01

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 09118-08072.

09118-08154

Unavailable

14

SPACER

09180-08151

$5.18

15

CUSHION

09320-12043

$7.98

16

BOLT (10X38) | MODEL J

09100-10227

$3.50

16

NO DESCRIPTION AVAILABLE | MODEL K/L/M/N/P This part replaces 09103-10207.

09103-10279

Unavailable

17

LOCK WASHER | MODEL J This part replaces 08321-21107.

08321-01107

$1.84

18

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

19

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

20

COVER, MUFFLER TAIL | MODEL L/M/N/P

14791-48C40

Unavailable

21

BOLT (6X15) | MODEL L/M This part replaces 09106-06069.

09106-06078

$3.37

21

BOLT (6X15 ) | MODEL N/P

09106-06078

$3.37

22

WASHER (7X12X1 ) | MODEL L/M/N/P

09160-06055

$1.62

23

LOCK WASHER | MODEL L/M/N/P

09164-06013

Unavailable
