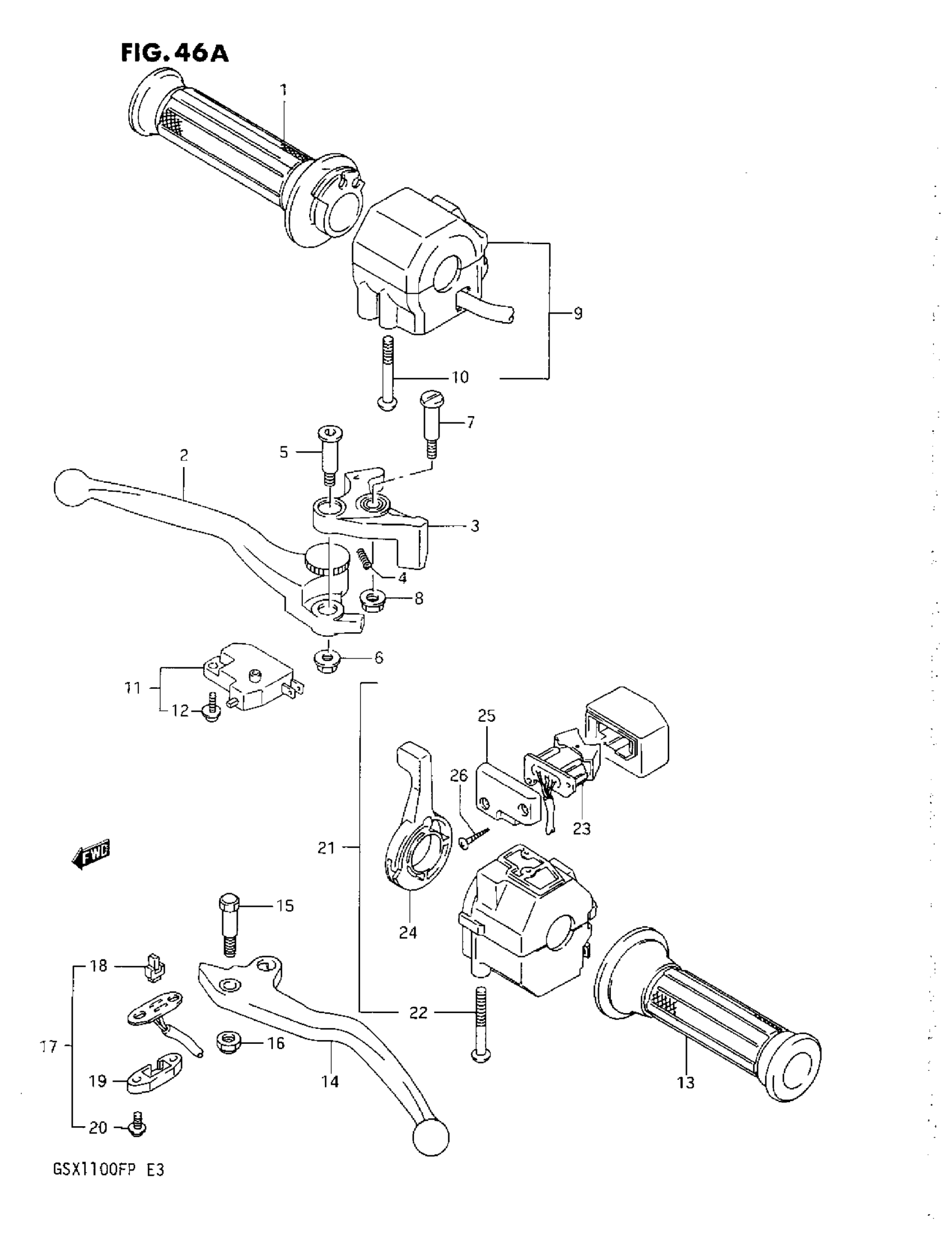

Suzuki GSX1100F (1993) HANDLE SWITCH (K/L/M/N/P) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-49501

$34.00

2

ADJUST LEVER

57420-48B00

Unavailable

3

KNOCKER

57430-48B00

Unavailable

4

SPRING

57438-32C00

$5.67

5

BOLT, LEVER This part replaces 57437-32C00.

57437-32C01

$8.60

6

NUT This part replaces 08319-31065.

08319-3106A

$2.03

7

BOLT, LEVER

57431-17C00

$7.11

8

NUT This part replaces 08316-16064.

08316-1006B

$2.50

9

NO DESCRIPTION AVAILABLE This part replaces 37200-48B50.

37200-48B51

Unavailable

10

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

11

SWITCH ASSY,FR BRAKE This part replaces 57460-17C00.

57460-14J02

$38.46

12

SCREW

57465-17C00

$2.19

13

GRIP, LH

57211-49500

$13.95

14

LEVER, CLUTCH

57621-48B00

Unavailable

15

BOLT

57431-05A00

$7.23

16

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

17

SWITCH ASSY, CLUTCH This part replaces 57560-08A00.

57560-18D10

Unavailable

18

HOLDER

57465-18601

$4.34

19

COVER

57481-33010

$5.84

20

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

21

NO DESCRIPTION AVAILABLE This part replaces 37400-48B30.

37400-48B31

Unavailable

22

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

23

SWITCH, SCREEN

37920-48B10

Unavailable

24

LEVER, CHOKE

37571-48B10

Unavailable

25

COVER, SCREEN

37575-48B10

Unavailable

26

SCREW

37391-48B10

Unavailable
