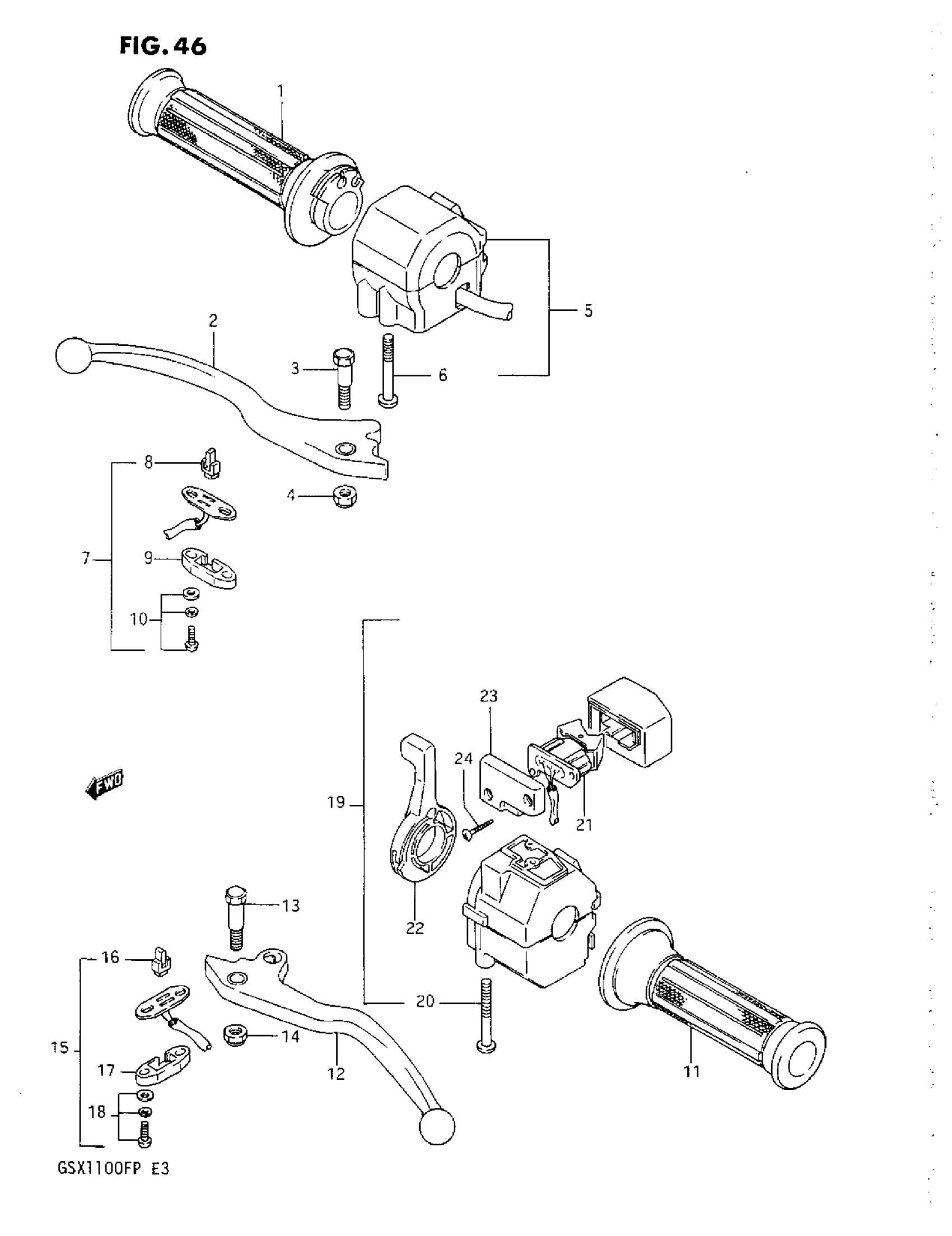

Suzuki GSX1100F (1993) HANDLE SWITCH (J) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-49501

$34.00

2

LEVER, BRAKE This part replaces 57420-05A10.

57420-38B00

Unavailable

3

BOLT

57431-05A00

$7.23

4

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

5

NO DESCRIPTION AVAILABLE This part replaces 37200-48B30.

37200-48B51

Unavailable

6

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

7

SWITCH ASSY, STOP

57460-33700

$43.37

8

HOLDER

57465-18601

$4.34

9

COVER

57481-33010

$5.84

10

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

11

GRIP, LH

57211-49500

$13.95

12

LEVER, CLUTCH

57621-48B00

Unavailable

13

BOLT

57431-05A00

$7.23

14

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

15

SWITCH ASSY, CLUTCH This part replaces 57560-08A00.

57560-18D10

Unavailable

16

HOLDER

57465-18601

$4.34

17

COVER

57481-33010

$5.84

18

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

19

NO DESCRIPTION AVAILABLE This part replaces 37400-48B30.

37400-48B31

Unavailable

20

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

21

SWITCH, SCREEN

37920-48B10

Unavailable

22

LEVER, CHOKE

37571-48B10

Unavailable

23

COVER, SCREEN

37575-48B10

Unavailable

24

SCREW

37391-48B10

Unavailable
