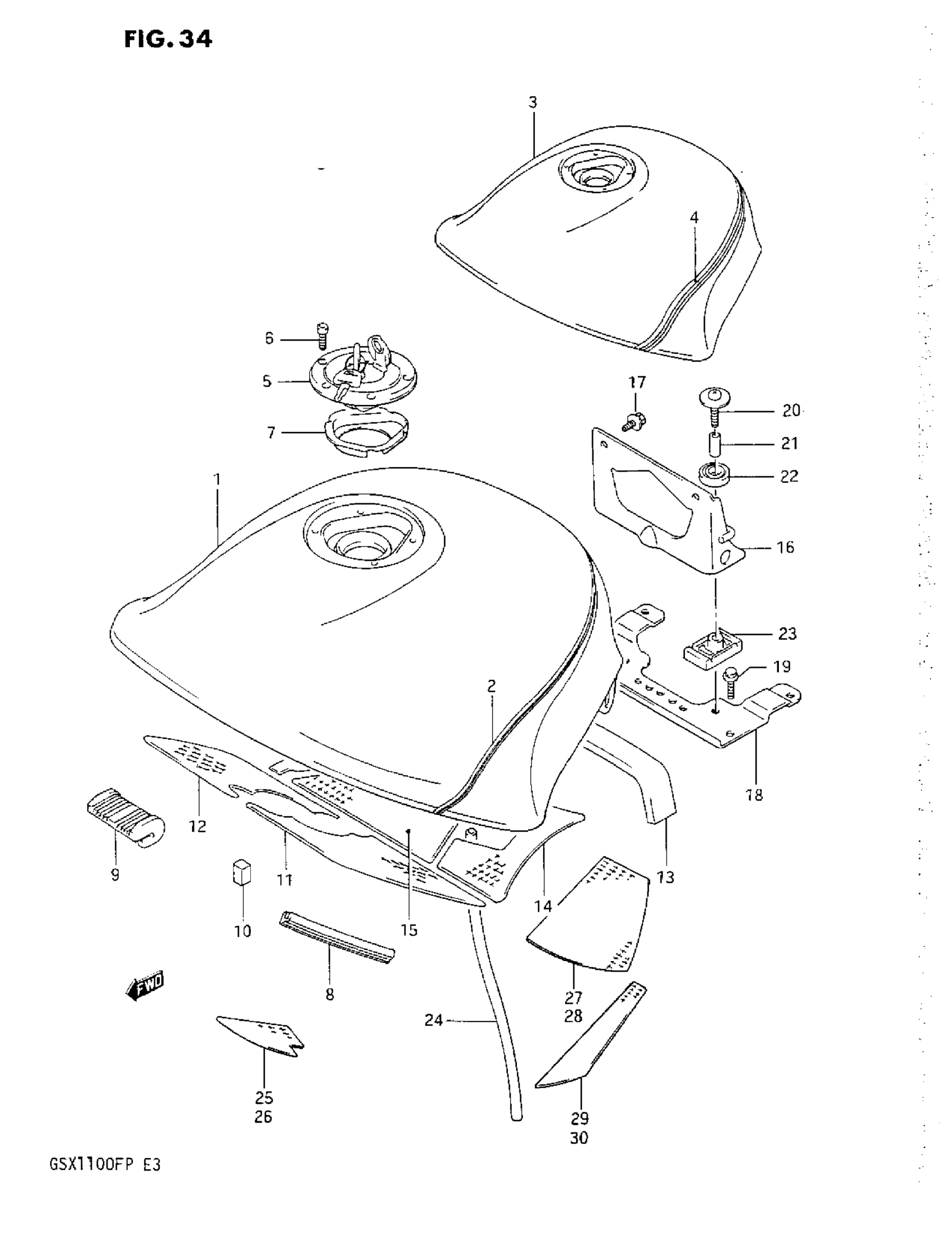

Suzuki GSX1100F (1993) FUEL TANK (J/K) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 49100-48B00-24V.

44110-48B61-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 49100-48B00-24D.

44110-48B61-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J, CALIFORNIA ONLY This part replaces 44100-48B70-24V.

44110-48B71-13L

Unavailable

1

TANK ASSY, FUEL (MAROON) | MODEL J, CALIFORNIA ONLY

44100-48B70-24D

Unavailable

2

TAPE SET, FUEL TANK | MODEL J FOR 24V

68110-48B00-8RZ

Unavailable

2

TAPE SET, FUEL TANK | MODEL J FOR 24D

68110-48B00-9YN

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 44100-48C00-33J.

44100-48C30-33J

Unavailable

3

TANK ASSY, FUEL (BLACK) | MODEL K, CALIFORNIA ONLY

44100-48C60-33J

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 68115-48B30-3BD.

68115-48B31-3BD

Unavailable

5

CAP SET, FUEL TANK This part replaces 44200-48B01-KEY.

44200-48810

Unavailable

5

CAP ASSY, FUEL TANK | CALIFORNIA ONLY This part replaces 44200-48B11-KEY.

44200-48820

Unavailable

6

BOLT

09106-05016

Unavailable

7

COVER, INLET

44262-48B00

Unavailable

8

MOLDING, FRONT This part replaces 68241-48B00.

68241-04X50-300

$7.32

9

CUSHION, FUEL TANK FRONT

44511-48B10

Unavailable

10

CUSHION, FUEL TANK SIDE

44545-48B10

$7.48

11

HEAT SHIELD, FRONT LH

44196-48B00

Unavailable

12

HEAT SHIELD, FRONT RH

44197-48B00

Unavailable

13

HEAT SHIELD, LOWER REAR

44193-48B01

Unavailable

14

HEAT SHIELD, REAR LH

44198-48B00

Unavailable

15

HEAT SHIELD, REAR RH

44199-48B00

Unavailable

16

BRACKET, REAR UPPER

44550-48B10

Unavailable

17

BOLT

09138-06038

Unavailable

18

BRACKET, REAR LOWER

44570-48B00

Unavailable

19

BOLT This part replaces 01517-06204.

01550-0620A

$1.97

20

BOLT, FUEL TANK REAR

09136-06106

Unavailable

21

SPACER This part replaces 09180-06091.

09180-06273

$3.05

22

CUSHION, REAR UPPER

09320-16010

Unavailable

23

CUSHION, REAR LOWER

09320-09033

Unavailable

24

HOSE(7X10.2X200 This part replaces 09352-70103-00A.

09352-70104-00B

$15.32

25

HEAT SHIELD, FRONT RH | CALIFORNIA ONLY

44194-48B10

Unavailable

26

HEAT SHIELD, FRONT LH | CALIFORNIA ONLY

44195-48B10

Unavailable

27

HEAT SHIELD, REAR RH | CALIFORNIA ONLY

44196-48B10

Unavailable

28

HEAT SHIELD, REAR LH | CALIFORNIA ONLY

44197-48B10

Unavailable

29

HEAT SHIELD, SIDE RH | CALIFORNIA ONLY

44198-48B10

Unavailable

30

HEAT SHIELD, SIDE LH | CALIFORNIA ONLY

44199-48B10

Unavailable
