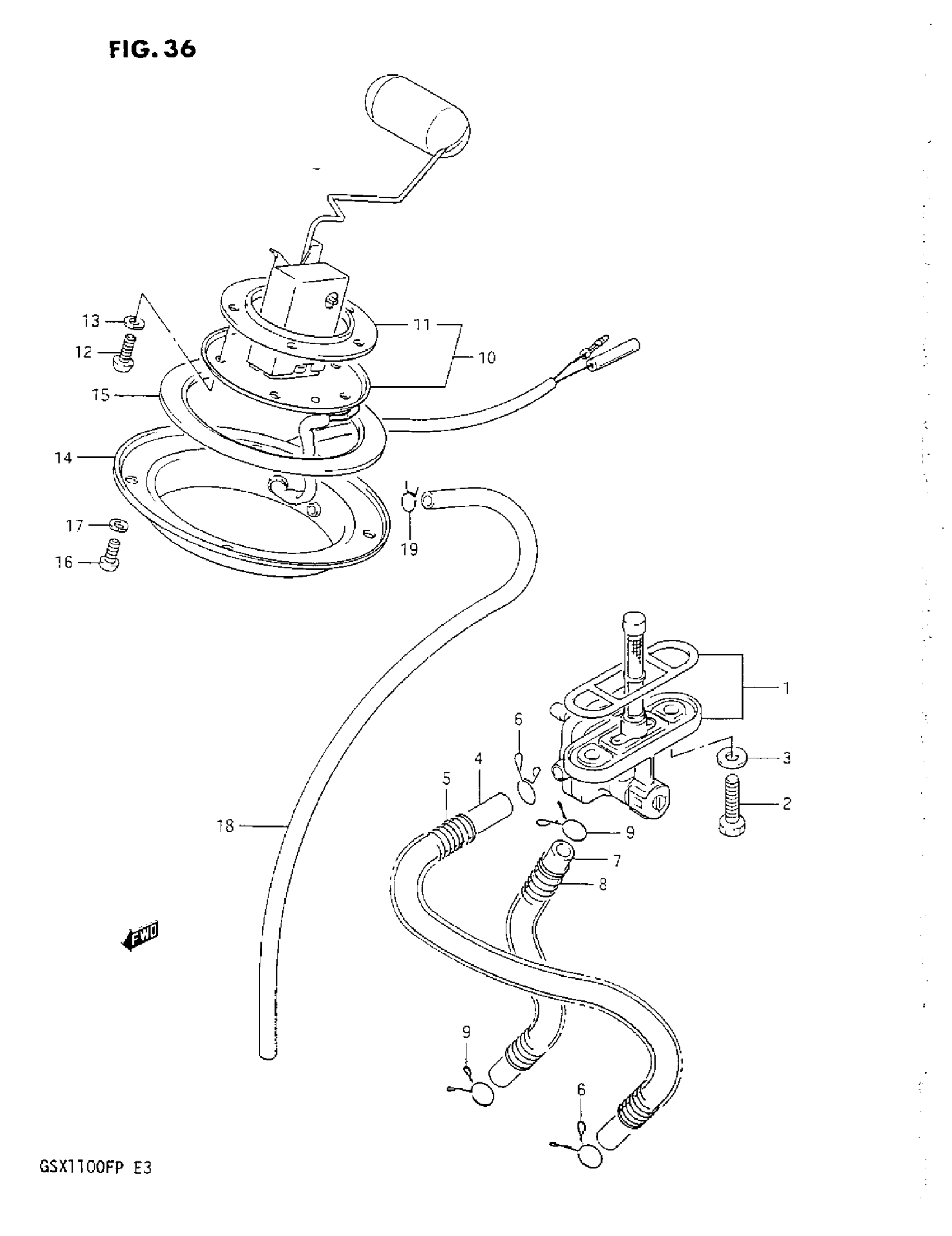

Suzuki GSX1100F (1993) FUEL COCK Diagram

#

Description
Price

1

COCK ASSY,FUEL | MODEL J This part replaces 44300-48B10.

44300-48B12

Unavailable

1

COCK ASSY,FUEL | MODEL K/L/M/N/P This part replaces 44300-48B11.

44300-48B12

Unavailable

2

BOLT This part replaces 09128-06006.

09128-06057

$1.65

3

GASKET | MODEL J

09168-06023

$2.35

3

GASKET | MODEL K/L/M/N/P

09168-06026

$3.10

4

HOSE(7X10.2X600 This part replaces 09352-70103-300.

09352-70104-600

$5.63

5

SPRING

09440-13047

$4.82

6

CLIP

09401-10403

$1.65

7

HOSE,FUEL NO.3 This part replaces 44431-48B00.

44431-48B01

Unavailable

8

SPRING

09440-13035

$5.88

9

CLIP This part replaces 09401-10201.

09401-10201-XC0

$2.19

10

GUAGE ASSY, FUEL LEVEL

34810-48B00

Unavailable

11

GASKET

34825-45100

$5.80

12

BOLT | MODEL J This part replaces 01107-05106.

01500-0510B

$1.80

12

BOLT | MODEL K/L/M/N/P This part replaces 01134-05106.

01570-0510B

$2.53

13

LOCK WASHER | MODEL J This part replaces 08321-21056.

08321-0105A

$1.84

14

PLATE, FUEL DRAIN

34885-40A00

Unavailable

15

GASKET FUEL DRA This part replaces 34888-40A00.

34888-40A01

$10.80

16

SCREW | MODEL J This part replaces 02112-05086.

02112-0508A

$1.49

16

SCREW | MODEL K/L/M/N/P This part replaces 02112-35086.

02112-3508B

$2.35

17

LOCK WASHER | MODEL J This part replaces 08321-21056.

08321-0105A

$1.84

18

HOSE This part replaces 09352-50823-00B.

09352-50005-00B

$13.93

19

CLIP

09401-08402

$1.49
