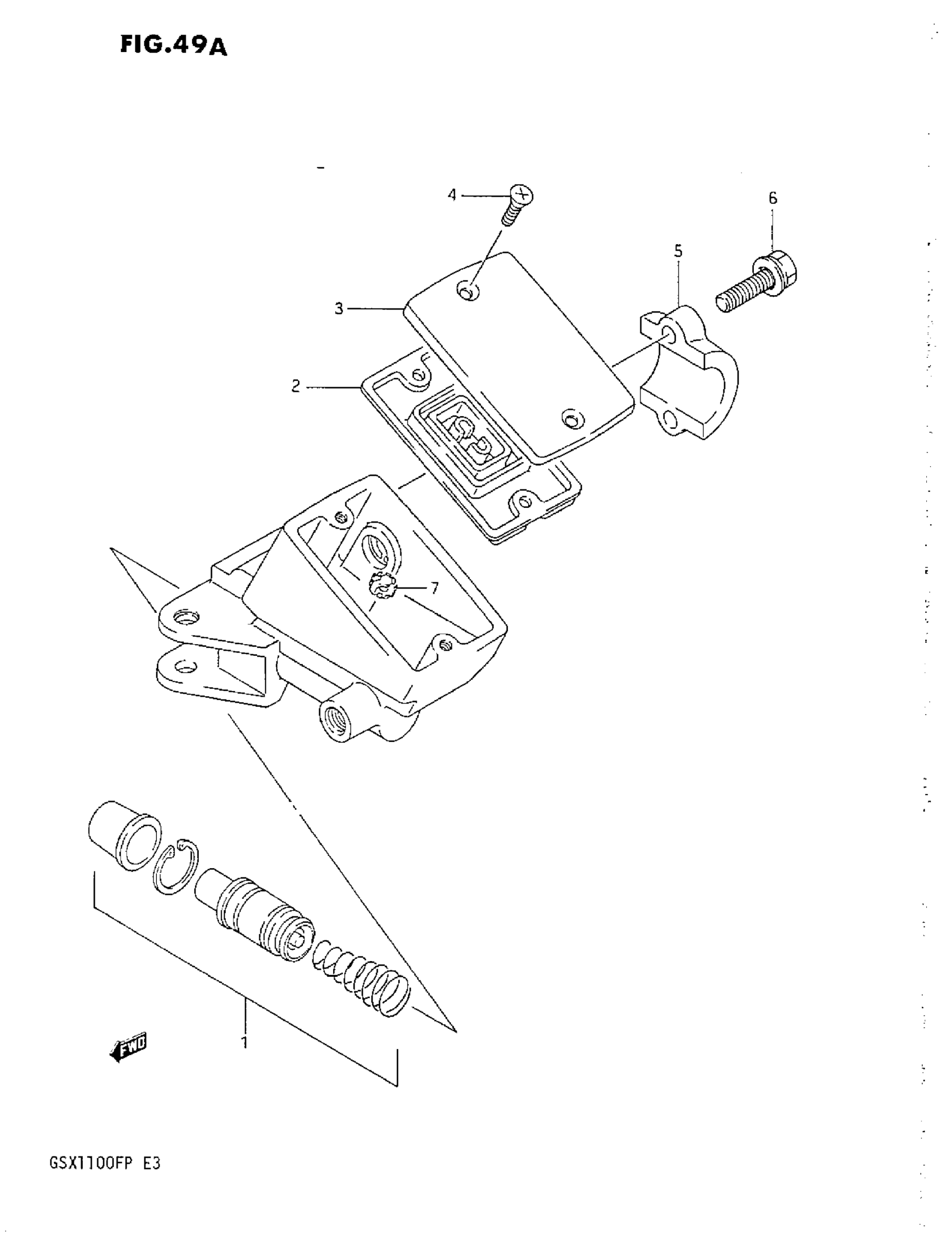

Suzuki GSX1100F (1993) FRONT MASTER CYLINDER (K/L/M/N/P) Diagram

#

Description

Price

1

CYLINDER ASSY, FRONT MASTER | MICRO SWITCH TYPE MODEL K, ->59600-48B11 This part replaces 59600-48B10.

59600-48B11

Unavailable

1

CYLINDER ASSY, FRONT MASTER | MICRO SWITCH TYPE MODEL L/M/N/P

59600-48B11

Unavailable

1

PISTON & CUP SET

59600-45850

$38.85

2

DIAPHRAGM

59667-49460

$9.36

3

CAP | MODEL K

59669-24A00

Unavailable

3

CAP | MODEL L/M/N/P This part replaces 59669-24A01.

59669-24A00

Unavailable

4

SCREW

69689-49300

$1.81

5

HOLDER

59671-19B00

$22.65

6

BOLT This part replaces 01117-06255.

01550-0625A

$2.01

7

PROTECTOR

59664-48B00

$12.43
