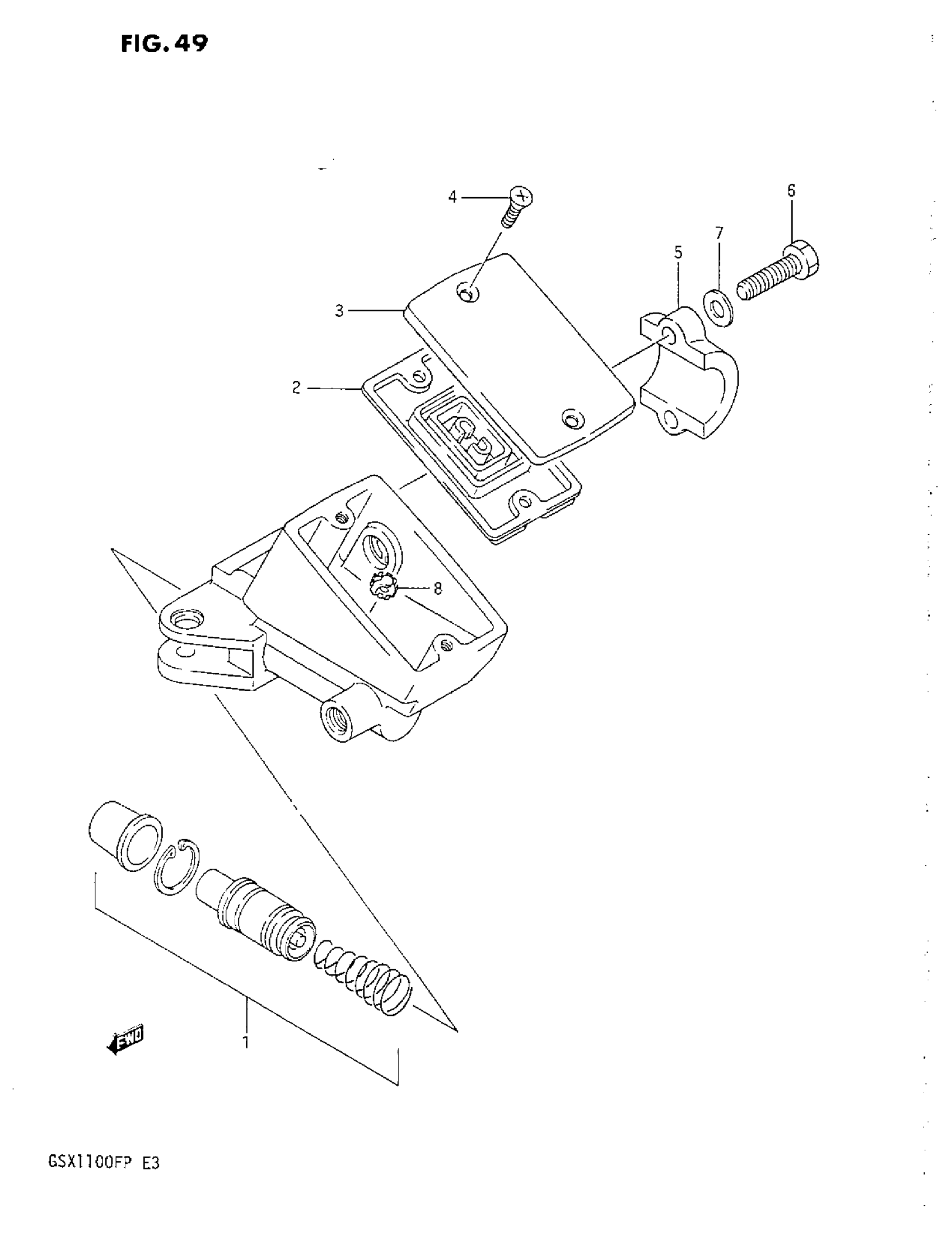

Suzuki GSX1100F (1993) FRONT MASTER CYLINDER (J) Diagram

#

Description

Price

1

CYLINDER ASSY, FRONT MASTER | ->59600-48B01 This part replaces 59600-48B00.

59600-48B01

Unavailable

1

CYLINDER ASSY, FRONT MASTER

59600-48B01

Unavailable

1

PISTON & CUP SET

59600-45850

$39.48

2

DIAPHRAGM

59667-49460

$9.78

3

CAP | FOR 59600-48B00

59669-24A00

Unavailable

3

CAP | FOR 59600-48B01 This part replaces 59669-24A01.

59669-24A00

Unavailable

4

SCREW

69689-49300

$1.91

5

HOLDER

59671-19B00

$20.07

6

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

7

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

8

PROTECTOR

59664-48B00

$11.02
