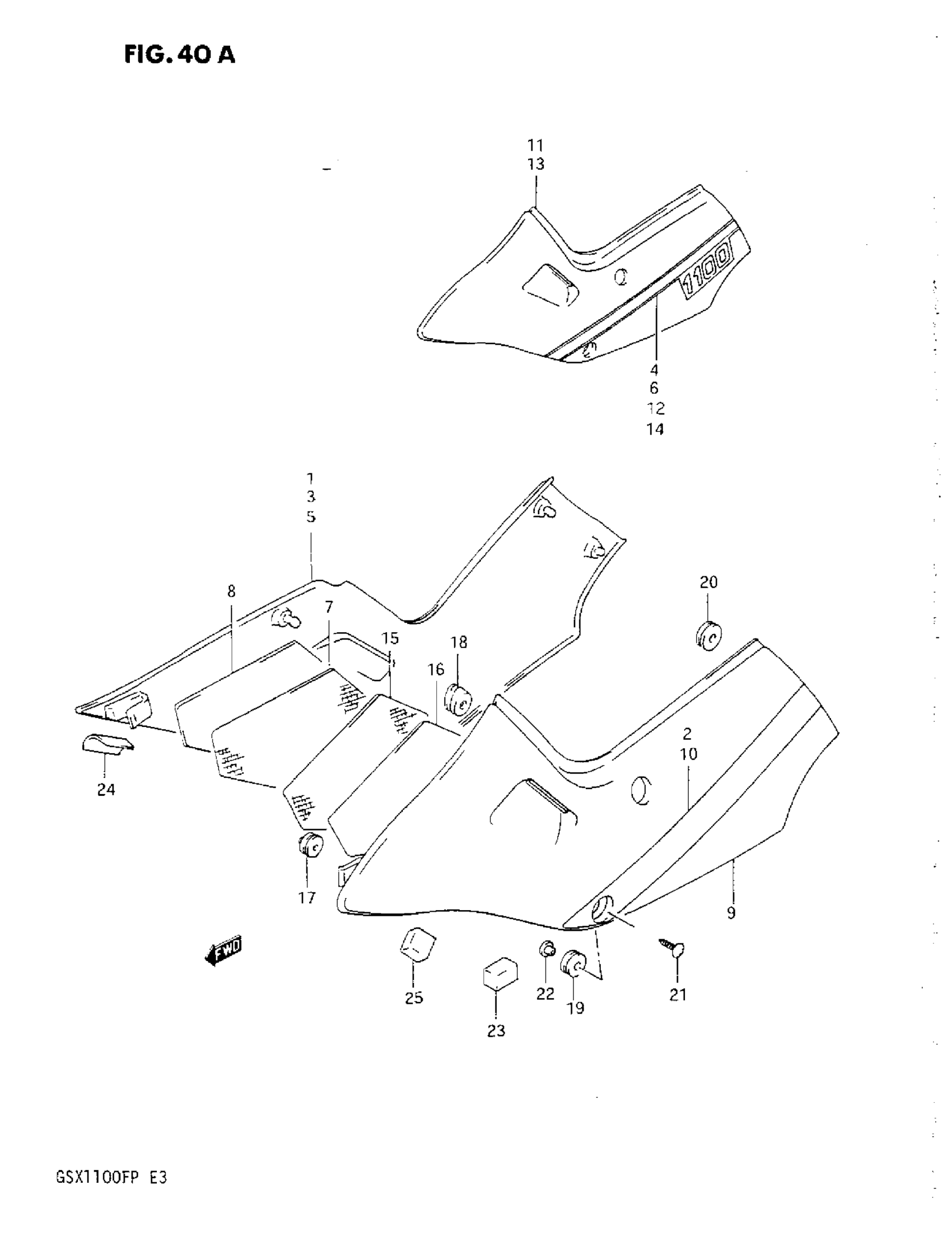

Suzuki GSX1100F (1993) FRAME COVER (M/N/P) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 47110-48C50-19A.

47111-48B21

Unavailable

2

TAPE, FRAME COVER RH | MODEL M

68135-48C00-0WT

Unavailable

3

COVER, FRAME RH | MODEL N

47110-48C80-K32

Unavailable

4

TAPE, FRAME COVER RH | MODEL N

68131-48C10-L26

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 47110-48C80-1GX.

47110-48C80-K31

Unavailable

6

EMBLEM, RH | MODEL P

68131-48C10-A6W

Unavailable

7

HEAT SHIELD, RH

47166-48B01

Unavailable

8

BALANCER SHEET, RH

47169-48B01

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 47210-48C50-19A.

47211-48B21

Unavailable

10

TAPE, FRAME COVER LH | MODEL M

68145-48C00-0WT

Unavailable

11

COVER, FRAME LH | MODEL N

47210-48C80-K32

Unavailable

12

TAPE, FRAME COVER LH | MODEL N

68141-48C10-L26

Unavailable

13

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 47210-48C80-1GX.

47210-48C80-K31

Unavailable

14

EMBLEM, LH | MODEL P

68141-48C10-A6W

Unavailable

15

HEAT SHIELD, LH

47266-48B00

Unavailable

16

BALANCER SHEET, LH

47269-48B00

Unavailable

17

CUSHION, FRONT NO.1

47162-48B10

Unavailable

18

CUSHION, FRONT NO.2

47163-48B10

Unavailable

19

CUSHION, REAR

47161-48B10

Unavailable

20

CUSHION, REAR

09320-08018

$3.04

21

SCREW

09136-06107

Unavailable

22

WASHER This part replaces 09169-06043.

09169-06058

Unavailable

23

CUSHION This part replaces 47165-48B10.

47165-48B11

Unavailable

24

CUSHION, SIDE This part replaces 47165-48B20.

56314-48B10

$7.75

25

PROTECTOR, FRONT

47261-48B00

Unavailable
