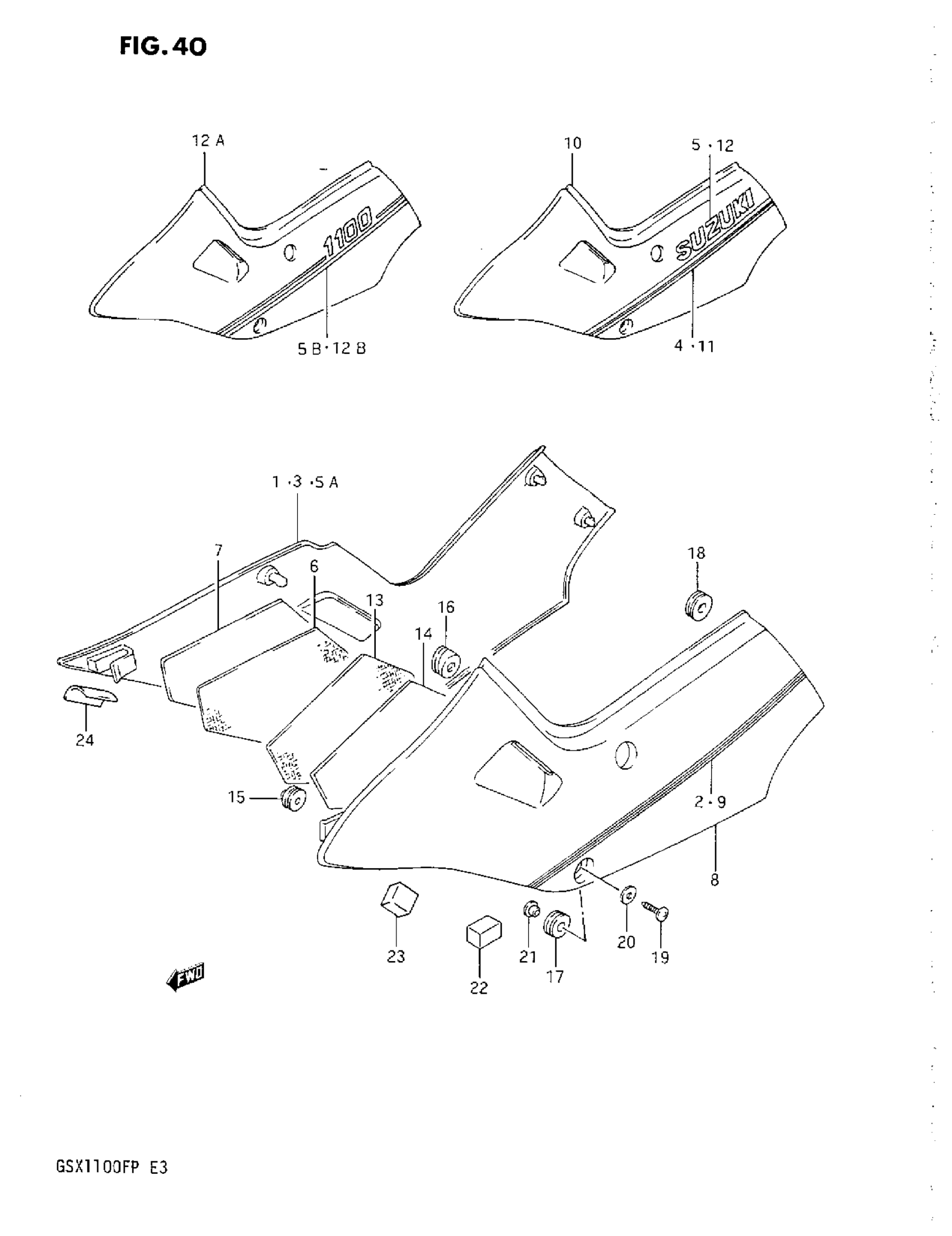

Suzuki GSX1100F (1993) FRAME COVER (J/K/L) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 47110-48B30-24D.

47111-48B21

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 47110-48B30-24V.

47111-48B21

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL J FOR 24V This part replaces 68135-48B00-8RZ.

68135-48B01-8RZ

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL J FOR 24D This part replaces 68135-48B00-9YN.

68135-48B01-9YN

Unavailable

3

COVER, FRAME RH (BLACK) | MODEL K , W/CLEAR

47110-48B90-33J

Unavailable

3

COVER, FRAME RH (BLACK) | MODEL K , N/CLEAR This part replaces 47110-48B91-33J.

47110-48B90-33J

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 68135-48B30-3BD.

68135-48B31-3BD

Unavailable

5

EMBLEM | MODEL K

68181-32B00-12R

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 47110-48C20-33J.

47111-48B21

Unavailable

5

TAPE, FRAME COVER RH | MODEL L

68135-48B50-3WN

Unavailable

6

HEAT SHIELD, RH

47166-48B01

Unavailable

7

BALANCER SHEET, RH

47169-48B01

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 47210-48B30-24D.

47211-48B21

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 47210-48B30-24V.

47211-48B21

Unavailable

9

TAPE, FRAME COVER LH | MODEL J FOR 24V

68145-48B00-8RZ

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL J FOR 24D This part replaces 68145-48B00-9YN.

68145-48B01-9YN

Unavailable

10

COVER, FRAME LH (BLACK) | MODEL K , W/CLEAR

47210-48B90-33J

Unavailable

10

COVER, FRAME LH (BLACK) | MODEL K , N/CLEAR This part replaces 47210-48B91-33J.

47210-48B90-33J

Unavailable

11

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 68145-48B30-3BD.

68145-48B31-3BD

Unavailable

12

EMBLEM | MODEL K

68181-32B00-12R

Unavailable

12

COVER, FRAME LH (BLACK) | MODEL L

47210-48C20-33J

Unavailable

12

TAPE, FRAME COVER LH | MODEL L

68145-48B50-3WN

Unavailable

13

HEAT SHIELD, LH

47266-48B00

Unavailable

14

BALANCER SHEET, LH

47269-48B00

Unavailable

15

CUSHION, FRONT NO.1

47162-48B10

Unavailable

16

CUSHION, FRONT NO.2

47163-48B10

Unavailable

17

CUSHION, REAR

47161-48B10

Unavailable

18

CUSHION, REAR

09320-08018

$3.04

19

SCREW

09125-06079

Unavailable

20

WASHER

09160-06084

$1.78

21

WASHER This part replaces 09169-06043.

09169-06058

Unavailable

22

CUSHION This part replaces 47165-48B10.

47165-48B11

Unavailable

23

CUSHION, SIDE This part replaces 47165-48B20.

56314-48B10

$7.75

24

PROTECTOR, FRONT

47261-48B00

Unavailable
