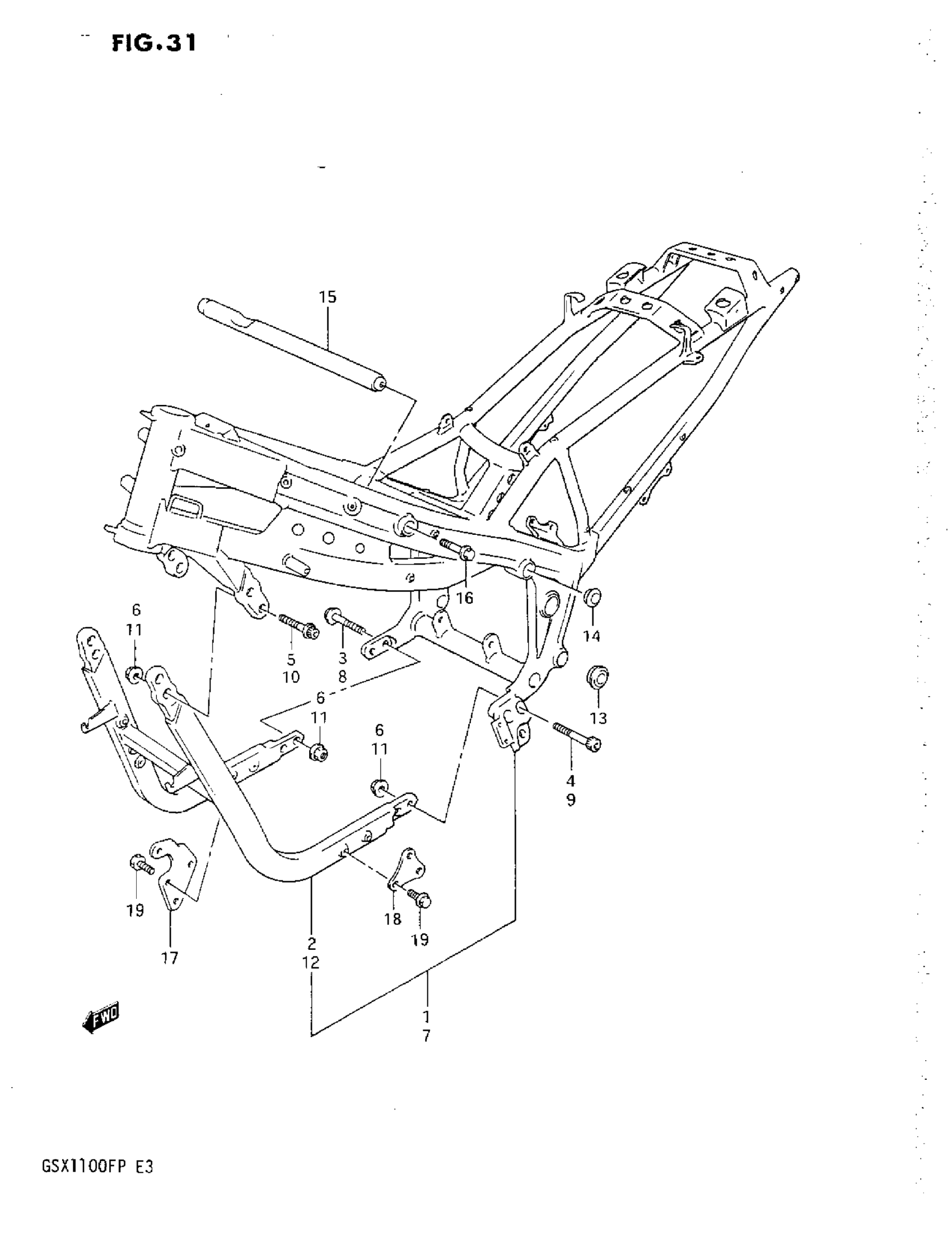

Suzuki GSX1100F (1993) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 41100-48B50-13L.

41100-48B71-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J, CALIFORNIA ONLY This part replaces 41100-48B70-13L.

41100-48B71-13L

Unavailable

2

TUBE, FRAME DOWN (SILVER) | MODEL J

41140-48B50-13L

Unavailable

3

BOLT | MODEL J This part replaces 07120-10358.

07120-1035B

$5.37

4

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 07110-10458.

07130-10457

Unavailable

5

BOLT, FRONT | MODEL J This part replaces 07120-10408.

07120-10407

$5.88

6

NUT | MODEL J

08319-31107

$2.73

7

FRAME SET (SILVER) | MODEL K/L This part replaces 41100-48830-13L.

41100-48860-13L

Unavailable

7

FRAME SET (SILVER) | MODEL M/N/P

41100-48860-13L

Unavailable

8

BOLT | MODEL K/L/M/N/P This part replaces 07120-10357.

07120-1035B

$5.37

9

NO DESCRIPTION AVAILABLE | MODEL K/L/M/N/P This part replaces 07110-10457.

07130-10457

Unavailable

10

BOLT, FRONT | MODEL K/L/M/N/P

07120-10407

$5.88

11

NUT | MODEL K/L/M/N/P

08319-31107

$2.73

12

TUBE, FRAME DOWN (SILVER) | MODEL K/L/M/N

41140-48C60-13L

Unavailable

13

CAP, NO.1

41888-48B01

Unavailable

14

CAP, NO.2

41889-48B01

Unavailable

15

BRIDGE, TANK RAIL

46590-48B10

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 07110-10558.

07130-10557

Unavailable

17

PLATE, NO.1 (SILVER)

41911-48B12-13L

Unavailable

18

PLATE, NO.2 (SILVER)

41921-48B11-13L

Unavailable

19

BOLT, REAR LH This part replaces 01517-08207.

01550-08207

$2.69
