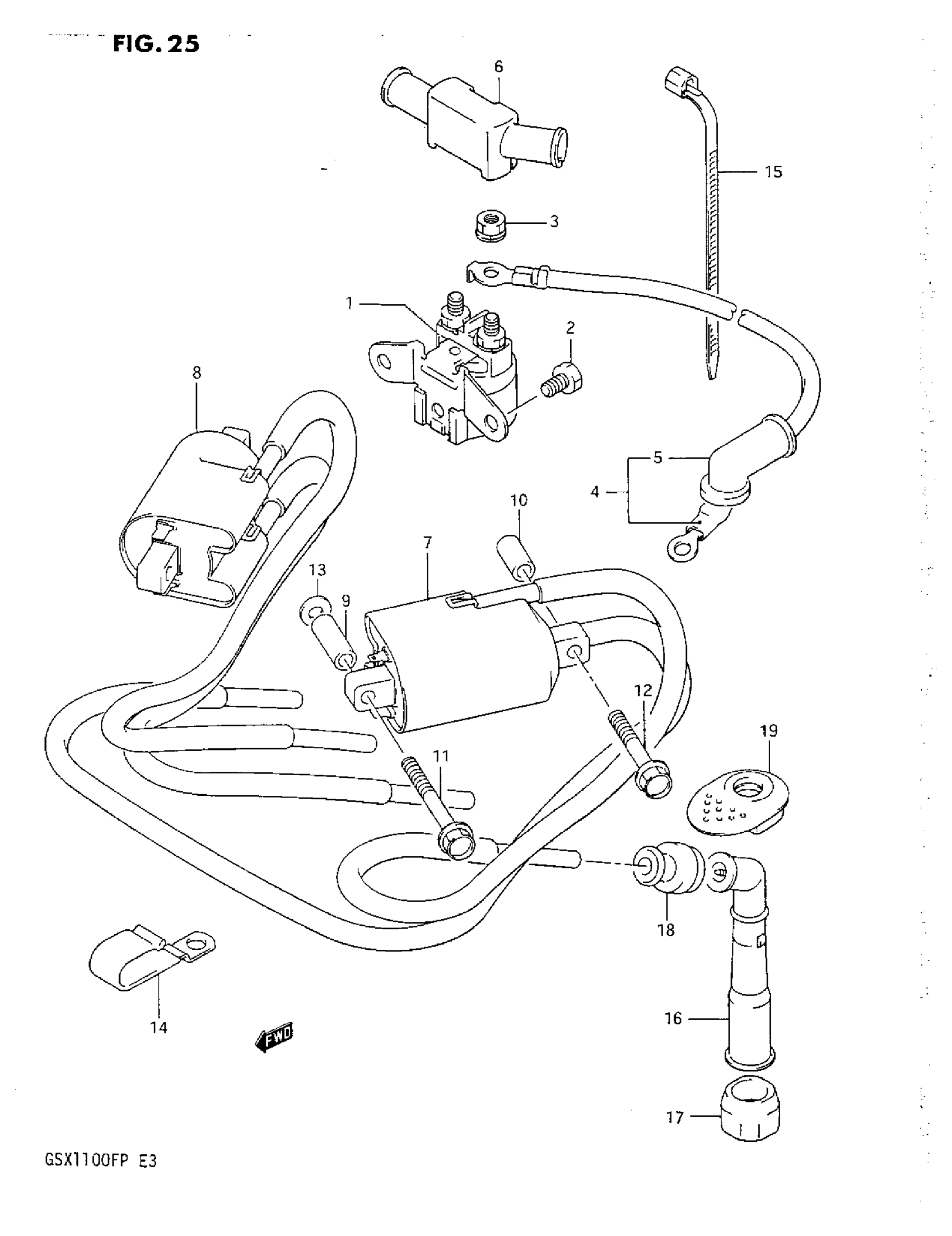

Suzuki GSX1100F (1993) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR

31800-49100

$97.31

2

SCREW (6X8)

09128-06013

$1.49

3

NUT This part replaces 08361-35066.

08361-3506A

$1.80

4

LEAD WIRE, STARTING MOTOR

33850-48B00

Unavailable

5

CAP, TERMINAL

31861-48B10

$6.55

6

CAP, TERMINAL

31861-34A00

Unavailable

7

COIL, IGNITION NO.1

33410-48B00

Unavailable

8

COIL, IGNITION NO.2

33420-48B00

Unavailable

9

SPACER (6.4X10X28)

09180-06196

Unavailable

10

SPACER (6.4X10X18 )

09180-06195

$3.68

11

BOLT This part replaces 01547-06505.

01547-0650B

$2.75

12

BOLT This part replaces 01547-06404.

01547-0640B

$2.75

13

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

14

CLAMP This part replaces 09403-06307.

09403-06329

$2.32

15

CLAMP | MODEL J/K

09407-14403

$2.26

16

CAP, SPARK PLUG

33510-48B10

$31.77

17

SEAL, SPARK PLUG CAP This part replaces 33541-48B00.

33541-23E01

$6.34

18

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

19

COVER

33543-48B00

$7.25
