Description

Price

1

BODY ASSY, COWLING (MAROON/RED) | FOR 32X, MODEL N

94400-49C00-K32

Unavailable

1

BODY ASSY , COWLING (PURPLE/SILVER) | FOR 1GK, MODEL P

94400-49C00-K31

Unavailable

2

TAPE, RH | FOR K32 , MODEL N

68685-48C10-L22

Unavailable

2

TAPE, LH | FOR K32 , MODEL N

68695-48C10-L22

Unavailable

2

TAPE, RH | FOR K31 , MODEL P

68685-48C10-L21

Unavailable

2

TAPE, LH | FOR K31 , MODEL P

68695-48C10-L21

Unavailable

3

EMBLEM, SUZUKI | FOR K32, K31

68166-31300-17U

Unavailable

4

BRACE This part replaces 94510-48B11.

94510-48B21

Unavailable

4

BRACE | CALIFORNIA ONLY

94510-48B21

Unavailable

5

WIND SCREEN

94611-48B40

Unavailable

6

BOLT, BRACE FRONT

09103-10195

Unavailable

7

BOLT This part replaces 07110-08165.

07130-0816A

$3.16

8

SCREW, BODY REAR

09139-06028

$3.70

9

WASHER

09160-06056

$1.72

10

SPACER This part replaces 09180-06152.

09180-06262

$2.55

11

CUSHION

09320-09016

$1.97

12

SCREW, LOWER

09139-06030

$3.70

13

SCREW, SET

02142-06127

$1.49

14

PANEL ASSY, RH (BLACK)

94700-48B10-291

Unavailable

15

SCREW This part replaces 02142-05084.

02142-0508A

$1.49

16

MOLDING, LICENSE HOLDER This part replaces 94419-48B10.

94635-19C00

$8.53

17

PANEL ASSY, LH (BLACK)

94800-48B10-291

Unavailable

18

SCREW This part replaces 02142-05084.

02142-0508A

$1.49

19

MOLDING, LICENSE HOLDER This part replaces 94419-48B10.

94635-19C00

$8.53

20

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

21

NUT

09148-05020

$2.18

22

SCREW This part replaces 03241-05125.

03241-0512A

$1.49

23

NUT

09148-05020

$2.18

24

CLAMP

09403-18406

Unavailable

25

CAP, RH

94426-48B10

Unavailable

26

CAP, LH

94427-48B10

$7.53

27

MOLDING, PANEL RH

94591-48B10

Unavailable

28

MOLDING. PANEL LH

94592-48B10

Unavailable

29

MOLDING, LICENSE HOLDER This part replaces 94419-48B00.

94635-19C00

$8.53

30

MOLDING, SIDE

94439-48B00

Unavailable

31

COVER

94651-48B00

Unavailable

32

MOLDING (L:325)

94479-48B00

Unavailable

33

NO DESCRIPTION AVAILABLE | FOR 32X , MODEL N This part replaces 97600-49C80-19A.

94470-48B00

Unavailable

33

COVER ASSY, LOWER RH (SILVER) | FOR IGK , MODEL P

97600-49C80-16B

Unavailable

33

NO DESCRIPTION AVAILABLE | FOR 32X , MODEL N CALIFORNIA ONLY This part replaces 97600-48D00-19A.

94470-48B10

Unavailable

33

NO DESCRIPTION AVAILABLE | FOR IGK , MODEL P CALIFORNIA ONLY This part replaces 97600-48D00-16B.

94470-48B10

Unavailable

34

TAPE SET, RH | FOR 19A , MODEL N

68680-48C10-L27

Unavailable

34

TAPE SET, RH | FOR 16B , MODEL P

68680-48C10-A6W

Unavailable

34

TAPE SET, RH | FOR 19A , MODEL N CALIFORNIA ONLY

68680-48C20-L27

Unavailable

34

TAPE SET, RH | FOR 16B , MODEL P CALIFORNIA ONLY

68680-48C20-A6W

Unavailable

35

MOLDING (L:325) This part replaces 94479-48B10.

94479-48B00

Unavailable

36

MOLDING | CALIFORNIA ONLY

94473-48B10

Unavailable

37

COVER ASSY, LOWER LH (RED) | FOR 32X , MODEL N

97700-49C80-19A

Unavailable

37

COVER ASSY, LOWER LH (SILVER) | FOR IGK , MODEL P

97700-49C80-16B

Unavailable

37

NO DESCRIPTION AVAILABLE | FOR 32X , MODEL N CALIFORNIA ONLY This part replaces 97700-48D00-19A.

94480-48B10

Unavailable

37

NO DESCRIPTION AVAILABLE | FOR IGK , MODEL P CALIFORNIA ONLY This part replaces 97700-48D00-16B.

94480-48B10

Unavailable

38

TAPE SET, LH | FOR 19A , MODEL N

68690-48C10-L27

Unavailable

38

TAPE SET, LH | FOR 16B , MODEL P

68690-48C10-A6W

Unavailable

38

TAPE SET, LH | FOR 19A , MODEL N CALIFORNIA ONLY

68690-48C20-L27

Unavailable

38

TAPE SET, LH | FOR 16B , MODEL P CALIFORNIA ONLY

68690-48C20-A6W

Unavailable

39

MOLDING (L:325) This part replaces 94479-48B10.

94479-48B00

Unavailable

40

MOLDING | CALIFORNIA ONLY

94473-48B10

Unavailable

41

NO DESCRIPTION AVAILABLE This part replaces 94475-48B01.

94475-48B02

Unavailable

42

SCREW

09139-05025

$2.05

43

NUT This part replaces 08316-26055.

08316-2005A

$2.19

44

BRACE, LOWER

94490-06B00

Unavailable

45

BRACE, LOWER REAR

94493-06B00

Unavailable

46

SCREW, FRONT

09139-06027

$2.16

47

SCREW, R & L

09139-06039

$2.19

48

BRACE, LOWER RH

94580-48B11

Unavailable

49

BRACE, LOWER LH

94590-48B11

Unavailable

50

BOLT This part replaces 01107-08127.

01500-08127

$2.62

51

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

52

SCREW, UPPER REAR

09139-06028

$3.70

53

SCREW

09139-06030

$3.70

54

WASHER This part replaces 09161-07005.

09161-07006

$2.15

55

SCREW

09139-06028

$3.70

56

WASHER

09160-06056

$1.72

57

SPACER

09180-06121

$1.98

58

CUSHION

09320-09016

$1.97

59

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

60

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25

60

LABEL, TIRE AIR PRESSURE | DRAWING NOT SHOWN

68332-48B40

Unavailable

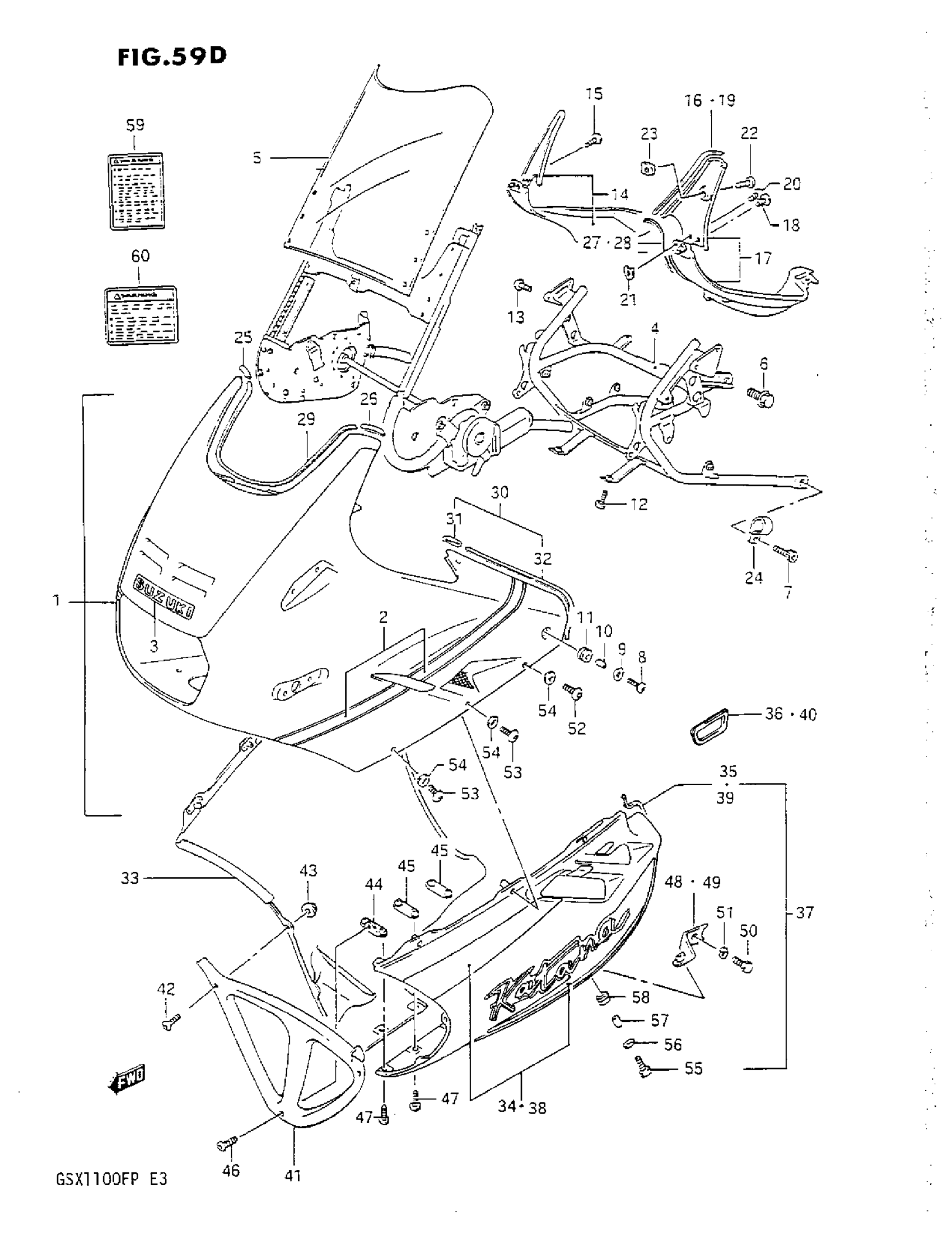

Suzuki GSX1100F (1993) COWLING (N/P) Diagram

BODY ASSY, COWLING (MAROON/RED) | FOR 32X, MODEL N

BODY ASSY , COWLING (PURPLE/SILVER) | FOR 1GK, MODEL P

TAPE, RH | FOR K32 , MODEL N

TAPE, LH | FOR K32 , MODEL N

TAPE, RH | FOR K31 , MODEL P

TAPE, LH | FOR K31 , MODEL P

EMBLEM, SUZUKI | FOR K32, K31

BRACE This part replaces 94510-48B11.

BRACE | CALIFORNIA ONLY

WIND SCREEN

BOLT, BRACE FRONT

BOLT This part replaces 07110-08165.

SCREW, BODY REAR

WASHER

SPACER This part replaces 09180-06152.

CUSHION

SCREW, LOWER

SCREW, SET

PANEL ASSY, RH (BLACK)

SCREW This part replaces 02142-05084.

MOLDING, LICENSE HOLDER This part replaces 94419-48B10.

PANEL ASSY, LH (BLACK)

SCREW This part replaces 02142-05084.

MOLDING, LICENSE HOLDER This part replaces 94419-48B10.

.SCREW This part replaces 02142-05124.

NUT

SCREW This part replaces 03241-05125.

NUT

CLAMP

CAP, RH

CAP, LH

MOLDING, PANEL RH

MOLDING. PANEL LH

MOLDING, LICENSE HOLDER This part replaces 94419-48B00.

MOLDING, SIDE

COVER

MOLDING (L:325)

NO DESCRIPTION AVAILABLE | FOR 32X , MODEL N This part replaces 97600-49C80-19A.

COVER ASSY, LOWER RH (SILVER) | FOR IGK , MODEL P

NO DESCRIPTION AVAILABLE | FOR 32X , MODEL N CALIFORNIA ONLY This part replaces 97600-48D00-19A.

NO DESCRIPTION AVAILABLE | FOR IGK , MODEL P CALIFORNIA ONLY This part replaces 97600-48D00-16B.

TAPE SET, RH | FOR 19A , MODEL N

TAPE SET, RH | FOR 16B , MODEL P

TAPE SET, RH | FOR 19A , MODEL N CALIFORNIA ONLY

TAPE SET, RH | FOR 16B , MODEL P CALIFORNIA ONLY

MOLDING (L:325) This part replaces 94479-48B10.

MOLDING | CALIFORNIA ONLY

COVER ASSY, LOWER LH (RED) | FOR 32X , MODEL N

COVER ASSY, LOWER LH (SILVER) | FOR IGK , MODEL P

NO DESCRIPTION AVAILABLE | FOR 32X , MODEL N CALIFORNIA ONLY This part replaces 97700-48D00-19A.

NO DESCRIPTION AVAILABLE | FOR IGK , MODEL P CALIFORNIA ONLY This part replaces 97700-48D00-16B.

TAPE SET, LH | FOR 19A , MODEL N

TAPE SET, LH | FOR 16B , MODEL P

TAPE SET, LH | FOR 19A , MODEL N CALIFORNIA ONLY

TAPE SET, LH | FOR 16B , MODEL P CALIFORNIA ONLY

MOLDING (L:325) This part replaces 94479-48B10.

MOLDING | CALIFORNIA ONLY

NO DESCRIPTION AVAILABLE This part replaces 94475-48B01.

SCREW

NUT This part replaces 08316-26055.

BRACE, LOWER

BRACE, LOWER REAR

SCREW, FRONT

SCREW, R & L

BRACE, LOWER RH

BRACE, LOWER LH

BOLT This part replaces 01107-08127.

.LOCK WASHER This part replaces 08321-21088.

SCREW, UPPER REAR

SCREW

WASHER This part replaces 09161-07005.

SCREW

WASHER

SPACER

CUSHION

LABEL,SCREEN This part replaces 68612-48B00.

LABEL,GENERAL W This part replaces 68319-40C00.

LABEL, TIRE AIR PRESSURE | DRAWING NOT SHOWN
