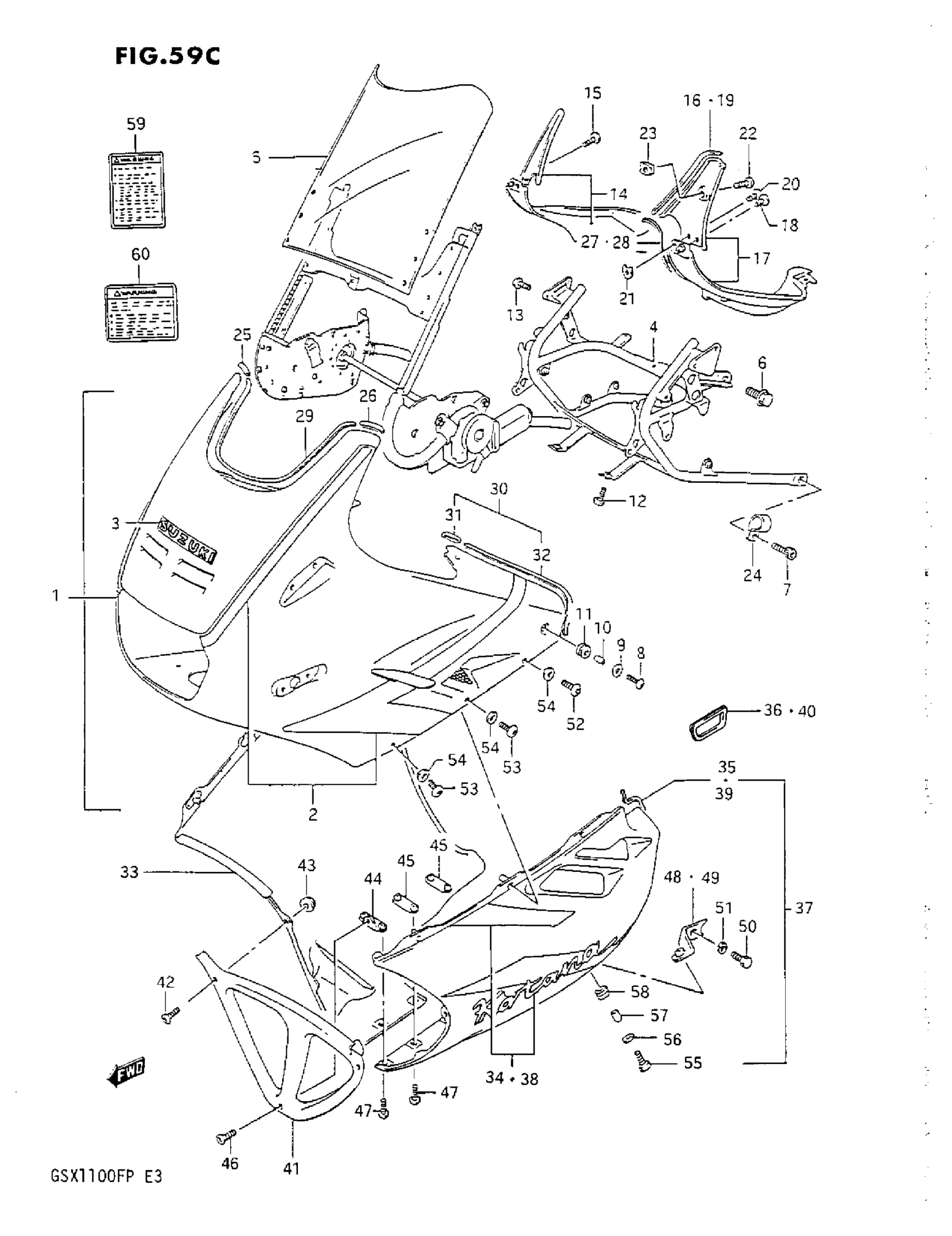

Suzuki GSX1100F (1993) COWLING (M) Diagram

#

Description
Price

1

BODY ASSY, COWLING (RED)

94400-48C71-19A

Unavailable

2

TAPE SET, RH

68270-48B40-0WT

Unavailable

2

TYPE SET, LH

68280-48B20-0WT

Unavailable

3

EMBLEM,"SUZUKI" This part replaces 68166-31300-13L.

68166-31310-13L

$4.52

4

BRACE This part replaces 94510-48B11.

94510-48B21

Unavailable

4

BRACE | CALIFORNIA ONLY

94510-48B21

Unavailable

5

WIND SCREEN

94611-48B40

Unavailable

6

BOLT, BRACE FRONT

09103-10195

Unavailable

7

BOLT This part replaces 07110-08165.

07130-0816A

$3.16

8

SCREW, BODY REAR

09139-06028

$3.70

9

WASHER

09160-06056

$1.72

10

SPACER This part replaces 09180-06152.

09180-06262

$2.55

11

CUSHION

09320-09016

$1.97

12

SCREW, LOWER

09139-06030

$3.70

13

SCREW, SET

02142-06127

$1.49

14

PANEL ASSY, RH (BLACK)

94700-48B10-291

Unavailable

15

SCREW This part replaces 02142-05084.

02142-0508A

$1.49

16

MOLDING, LICENSE HOLDER This part replaces 94419-48B10.

94635-19C00

$8.53

17

PANEL ASSY, LH (BLACK)

94800-48B10-291

Unavailable

18

SCREW This part replaces 02142-05084.

02142-0508A

$1.49

19

MOLDING, LICENSE HOLDER This part replaces 94419-48B10.

94635-19C00

$8.53

20

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

21

NUT

09148-05020

$2.18

22

SCREW This part replaces 03241-05125.

03241-0512A

$1.49

23

NUT

09148-05020

$2.18

24

CLAMP

09403-18406

Unavailable

25

CAP, RH

94426-48B10

Unavailable

26

CAP, LH

94427-48B10

$7.53

27

MOLDING, PANEL RH

94591-48B10

Unavailable

28

MOLDING, PANEL LH

94592-48B10

Unavailable

29

MOLDING, LICENSE HOLDER This part replaces 94419-48B00.

94635-19C00

$8.53

30

MOLDING, SIDE

94439-48B00

Unavailable

31

COVER

94651-48B00

Unavailable

32

MOLDING (L:325)

94479-48B00

Unavailable

33

NO DESCRIPTION AVAILABLE This part replaces 97600-49C20-19A.

94470-48B00

Unavailable

33

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 97600-49C10-19A.

94470-48B10

Unavailable

34

TAPE SET , RH

68680-48B00-0WT

Unavailable

35

MOLDING (L:325) This part replaces 94479-48B10.

94479-48B00

Unavailable

36

MOLDING | CALIFORNIA ONLY

94473-48B10

Unavailable

37

NO DESCRIPTION AVAILABLE This part replaces 97700-49C20-19A.

94480-48B00

Unavailable

37

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 97700-49C10-19A.

94480-48B10

Unavailable

38

TAPE SET, LH

68690-48B00-0WT

Unavailable

39

MOLDING (L:325) This part replaces 94479-48B10.

94479-48B00

Unavailable

40

MOLDING | CALIFORNIA ONLY

94473-48B10

Unavailable

41

NO DESCRIPTION AVAILABLE This part replaces 94475-48B01.

94475-48B02

Unavailable

42

SCREW

09139-05025

$2.05

43

NUT This part replaces 08316-26055.

08316-2005A

$2.19

44

BRACE, LOWER

94490-06B00

Unavailable

45

BRACE, LOWER REAR

94493-06B00

Unavailable

46

SCREW, FRONT

09139-06027

$2.16

47

SCREW, R & L

09139-06039

$2.19

48

BRACE, LOWER RH

94580-48B11

Unavailable

49

BRACE, LOWER LH

94590-48B11

Unavailable

50

BOLT This part replaces 01107-08127.

01500-08127

$2.62

51

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

52

SCREW, UPPER REAR

09139-06028

$3.70

53

SCREW

09139-06030

$3.70

54

WASHER This part replaces 09161-07005.

09161-07006

$2.15

55

SCREW

09139-06028

$3.70

56

WASHER

09160-06056

$1.72

57

SPACER

09180-06121

$1.98

58

CUSHION

09320-09016

$1.97

59

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

60

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25
