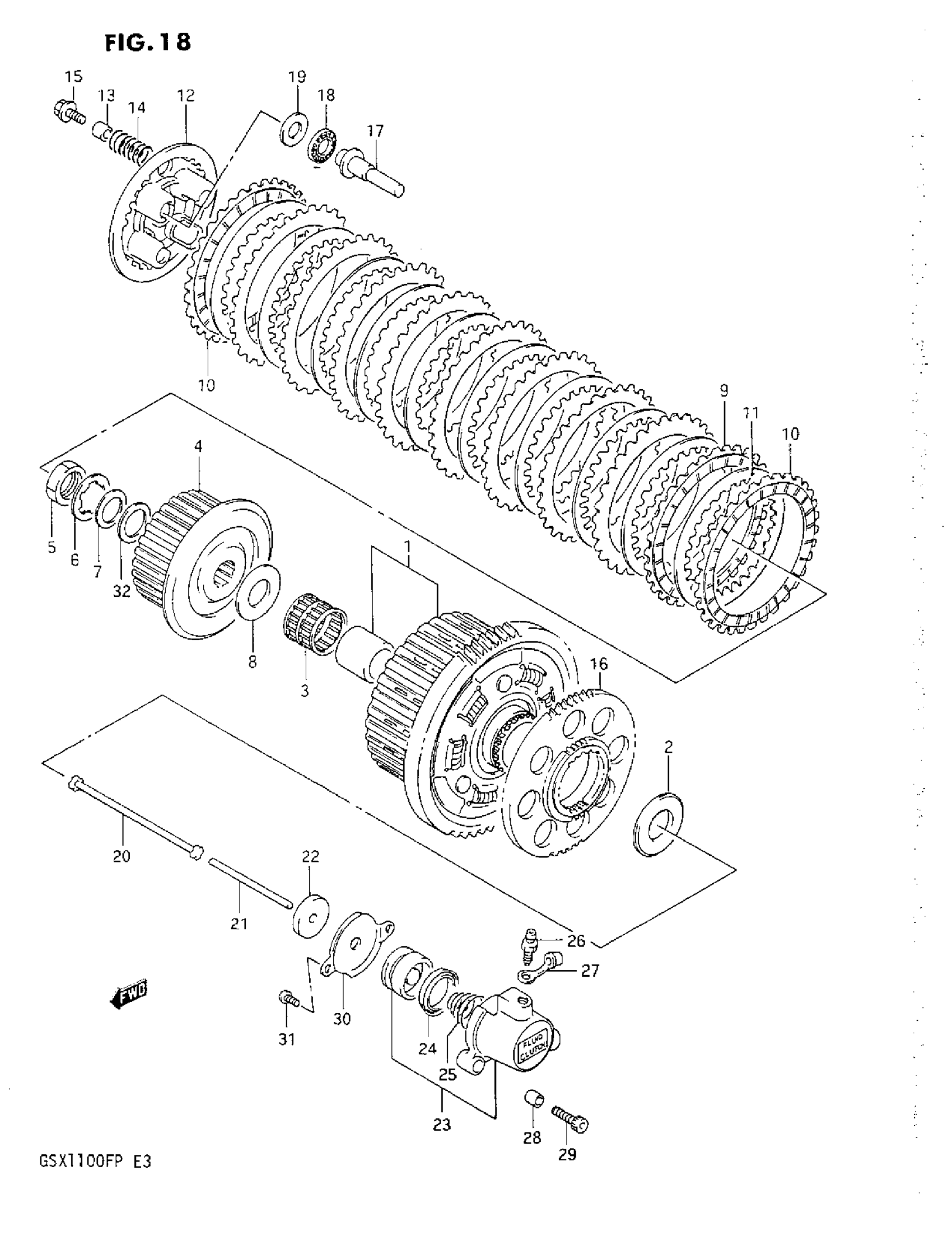

Find the part on the Clutch diagram for your 1993 Suzuki GSX1100F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX1100F Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL J/K This part replaces 21200-48811.

21200-48814

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL L/M/N This part replaces 21200-48813.

21200-48814

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 21200-48820.

21200-48814

1
Out of stock

2

WASHER

09160-25067

1
Out of stock

3

BEARING

09263-35017

1

$40.04

In stock

4

HUB, SLEEVE | MODEL J/K/L/M/N This part replaces 21410-48B01.

21410-48B02

1
Out of stock

4

HUB, SLEEVE | MODEL P

21410-48B02

1
Out of stock

5

NUT

09140-24012

1
Out of stock

6

WASHER, LOCK

09167-25007

1
Out of stock

7

WASHER

09164-24006

1

$3.66

In stock

8

.WASHER (25X50X2.5)

09160-25056

1

$11.40

In stock

9

9

$21.18

In stock

10

PLATE, CLUTCH DRIVE NO.2 (T:2.6)

21442-48B00

2
Out of stock

11

PLATE, DRIVEN (T:2)

21451-48B00

10

$15.18

In stock

12

DISC, PRESSURE

21462-06B00

1
Out of stock

13

SPACER (6.2X12X14)

09180-06174

4

$5.49

In stock

14

SPRING

09440-20018

4

$8.68

In stock

15

BOLT (6X30) | MODEL J/K/L/M/N This part replaces 09116-06073.

09116-06171

4
Out of stock

15

BOLT (6X30) | MODEL P This part replaces 09116-06163.

09116-06171

4
Out of stock

16

NO DESCRIPTION AVAILABLE This part replaces 22721-06B02.

22721-06B03

1
Out of stock

17

PIECE, PUSH

23121-06B00

1
Out of stock

18

BEARING

09263-15003

1

$8.03

In stock

19

1

$3.77

In stock

20

ROD, PUSH RH

23110-27A00

1

$21.62

In stock

21

ROD,CLUTCH PUSH,L

23111-15501

1

$13.27

In stock

22

OIL SEAL

09285-06015

1

$7.73

In stock

23

1

$106.49

In stock

24

CUP

23163-05A00

1

$7.73

In stock

25

SPRING

23164-05A00

1

$4.33

In stock

26

BLEEDER

59121-01A00

1
Out of stock

27

CAP, BLEEDER

59122-01A00

1
Out of stock

28

PIN

04211-09129

2
Out of stock

29

BOLT This part replaces 07110-06255.

07130-0625B

2
Out of stock

30

1

$6.77

In stock

31

SCREW This part replaces 02112-06106.

02112-0610B

2
Out of stock

32

WASHER | MODEL P

09167-25024

1
Out of stock
