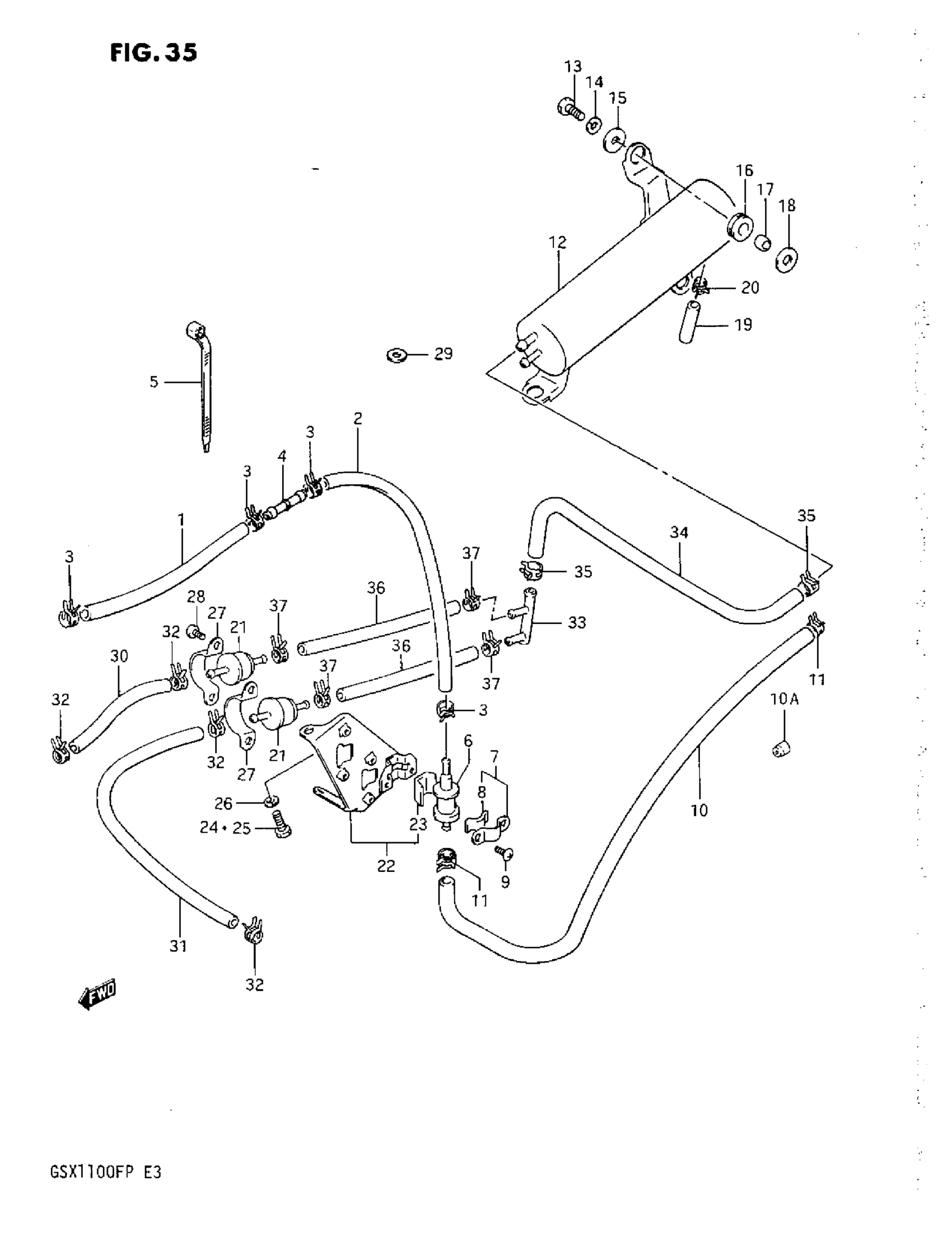

Suzuki GSX1100F (1993) CANISTER (CALIFORNIA ONLY) Diagram

#

Description
Price

1

HOSE, TANK & BREATHER VALVE | L:300->280 This part replaces 09358-54116-300.

09355-54115-600

$14.59

2

HOSE, TANK & BREATHER VALVE This part replaces 09358-54116-300.

09355-54115-600

$14.59

3

CLIP This part replaces 09401-11410.

09401-11413

$2.26

4

JOINT, HOSE

09364-06005

$5.72

5

CLAMP

09407-14403

$2.26

6

VALVE, FUEL TANK BREATHER

44240-38A00

$61.15

7

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

8

CUSHION (10X30X2)

44894-24A00

$1.72

9

SCREW This part replaces 02142-04103.

02142-0410A

$1.49

10

HOSE, BREATHER & CANISTER

09343-05501

Unavailable

10

NOZZLE

24125-18900

Unavailable

11

CLIP This part replaces 09401-11410.

09401-11413

$2.26

12

CANISTER

17210-48B10

Unavailable

13

BOLT This part replaces 01107-06257.

01500-06257

$1.97

13

BOLT | MODEL M/N/P

09118-06034

Unavailable

14

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

15

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

16

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

17

SPACER

09180-06038

$1.98

18

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

19

HOSE,6.5X11.5X6 This part replaces 09354-70123-300.

44421-12FR0

$12.33

20

CLIP This part replaces 09401-11410.

09401-11413

$2.26

21

VALVE, CANISTER PURGE

44250-48B00

Unavailable

22

BRACKET, PURGE VALVE

44880-48B10

Unavailable

23

CUSHION (10X30X2)

44894-24A00

$1.72

24

BOLT | MODEL J This part replaces 01107-06166.

01500-0616A

$1.78

24

BOLT | MODEL K/L/M/N/P This part replaces 01134-06166.

01570-0616A

$2.23

25

BOLT | MODEL J This part replaces 01107-06106.

01500-0610B

$1.81

25

BOLT | MODEL K/L/M/N/P

01134-06106

Unavailable

26

LOCK WASHER | MODEL J This part replaces 08321-21066.

08321-0106A

$1.84

27

HOLDER, PURGE VALVE

44884-48B00

Unavailable

28

SCREW This part replaces 02112-05086.

02112-0508A

$1.49

29

WASHER This part replaces 09160-12004.

09160-12088

$2.00

30

HOSE, TANK & BREATHER VALVE | L:300->250 This part replaces 09354-54115-300.

09355-54115-600

$14.59

31

HOSE, TANK & BREATHER VALVE | L:600->360 This part replaces 09354-54115-600.

09355-54115-600

$14.59

32

CLIP This part replaces 09401-11410.

09401-11413

$2.26

33

SEPARATOR, 3 OUT

09367-06004

Unavailable

34

HOSE, 3 OUT/CANISTER

09343-07501

$19.13

35

CLIP This part replaces 09401-12406.

09401-11415

$2.23

36

HOSE, TANK & BREATHER VALVE This part replaces 09354-54115-300.

09355-54115-600

$14.59

37

CLIP This part replaces 09401-11410.

09401-11413

$2.26
