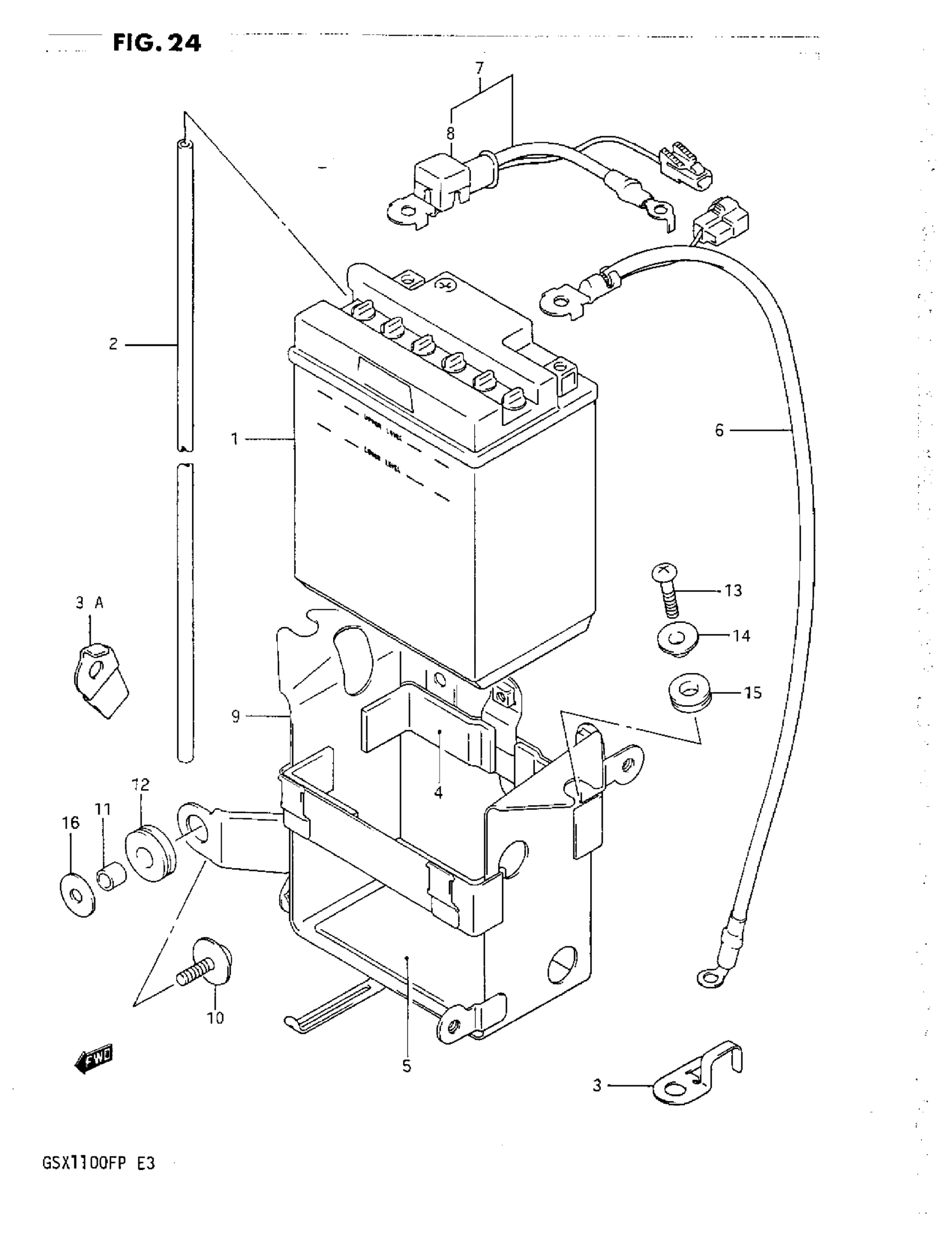

Suzuki GSX1100F (1993) BATTERY Diagram

#

Description
Price

1

BATTERY ASSY (12V,14AH) This part replaces 33610-05A30.

33610-05A10

$95.65

2

HOSE,BATTERY EX | L:700->650 This part replaces 33680-14A00.

33680-16A11

$6.78

2

HOSE,BATTERY EX | L:600 This part replaces 33680-31003.

33680-16A11

$6.78

3

CLAMP, BATTERY EXHAUST HOSE

33672-48B00

Unavailable

3

CLAMP, BATTERY EXHAUST HOSE

33672-48B11

Unavailable

4

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48

5

CUSHION | CUT A REQUIRED PROFILE (50X115)

33651-37000

$4.48

6

LEAD WIRE, BATTERY

33860-48B00

Unavailable

7

WIRE,BATT PLUS This part replaces 33820-48B00.

33820-48B01

Unavailable

8

CAP, BATTERY PLUS This part replaces 33624-24500.

33624-35B00

$6.40

9

HOLDER, BATTERY | MODEL J

41540-48B02

Unavailable

9

HOLDER, BATTERY | MODEL K/L

41540-48C00

Unavailable

9

HOLDER, BATTERY | MODEL M/N/P This part replaces 41540-48C10.

41540-48C00

Unavailable

10

SCREW (6X16) This part replaces 09136-06102.

09136-06121

$2.76

11

SPACER This part replaces 09180-06152.

09180-06262

$2.55

12

CUSHION This part replaces 09320-09021.

09320-09502

$4.17

13

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

14

WASHER, SIDE

09169-06057

$3.18

15

CUSHION This part replaces 09320-08030.

09320-08511

$2.02

16

WASHER This part replaces 09160-06012.

09160-06054

$1.62
