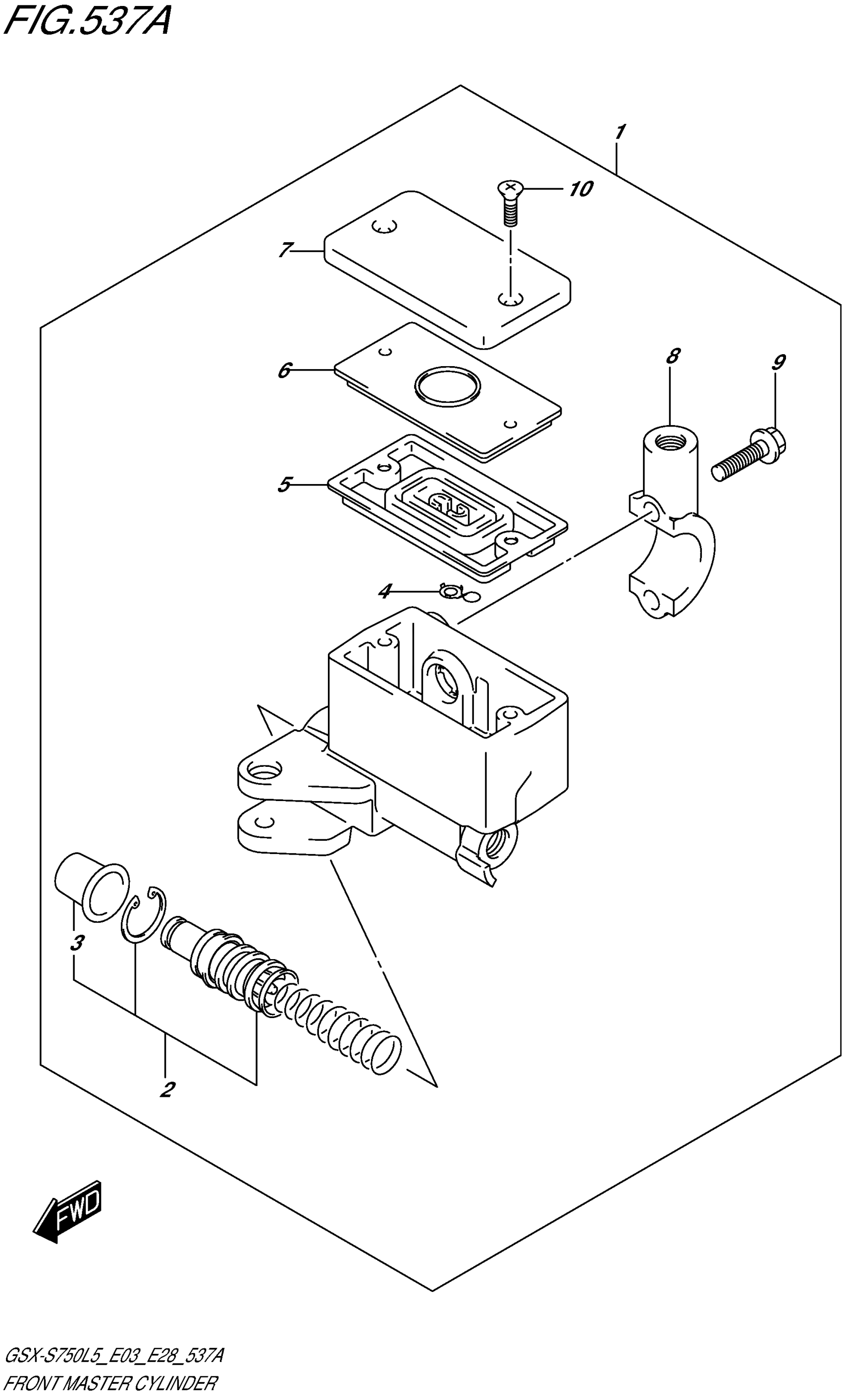

Suzuki GSX-S750L5 (2015) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-10G30

$352.80

2

PISTON & CUP SET

59600-45870

$59.52

3

BOOT

59666-44300

$5.30

4

PROTECTOR

59664-32F00

$13.20

5

DIAPHRAGM

59667-49460

$8.95

6

PLATE, DIAPHRAGM

59668-41C00

$8.54

7

CAP

59669-10G00

$43.22

8

HOLDER

59671-32F00

$17.87

9

BOLT (6X22)

59675-02FA0

$3.49

10

SCREW, RESERVOIR CAP

69689-49300

$1.81
