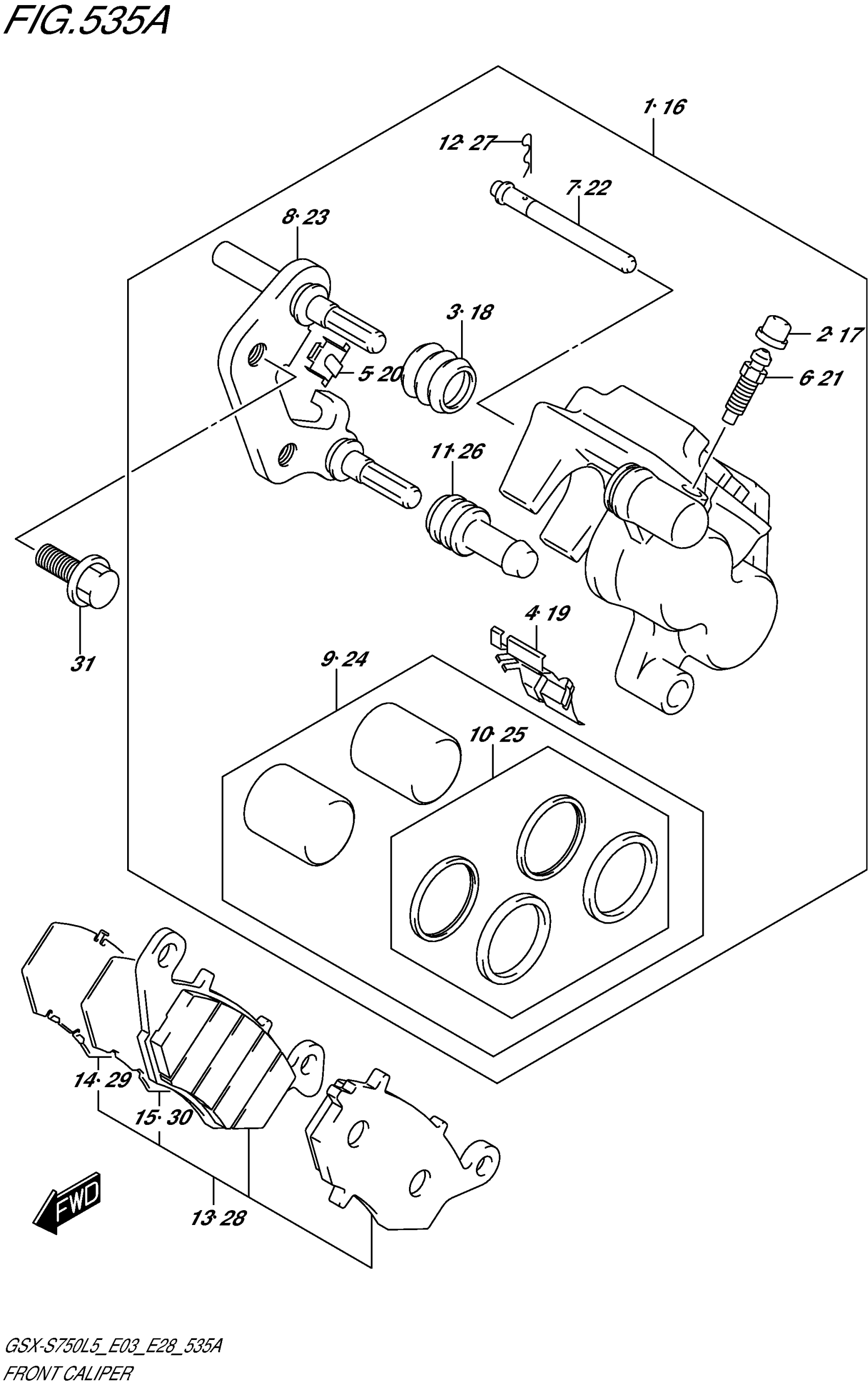

Suzuki GSX-S750L5 (2015) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-33DJ0-999

Unavailable

2

CAP, BLEEDER PLUG

55156-66310

$4.73

3

BOOT, AXLE

59112-44B00

$8.15

4

.SPRING, PAD RH

59115-33D00

$19.78

5

.GUIDE, PAD

59116-33D00

$7.51

6

BLEEDER

59121-18410

$7.99

7

.PIN, PAD

59141-44B01

$8.56

8

.CARRIER, CALIPER RH

59150-33D01

$123.97

9

PISTON SET

59300-01820

$101.83

10

..SEAL SET, PISTON

59100-04851

$32.70

11

.INSULATOR, AXLE

59313-36500

$5.48

12

.CLIP, PAD PIN

69142-45000

$3.97

13

PAD & SHIM SET, RH

59103-33810

$101.08

14

SHIM, PAD NO.2

59172-33DM0

$17.30

15

INSULATOR NO.2

69172-01D40

$29.25

16

CALIPER ASSY, FRONT LH

59300-33DJ0-999

Unavailable

17

CAP, BLEEDER PLUG

55156-66310

$4.73

18

BOOT, AXLE

59112-44B00

$8.15

19

.SPRING, PAD LH

59315-33D00

$14.03

20

.GUIDE, PAD

59116-33D00

$7.51

21

BLEEDER

59121-18410

$7.99

22

.PIN, PAD

59141-44B01

$8.56

23

.CARRIER, CALIPER LH

59350-33D01

$123.97

24

PISTON SET

59300-01820

$101.83

25

..SEAL SET, PISTON

59100-04851

$32.70

26

.INSULATOR, AXLE

59313-36500

$5.48

27

.CLIP, PAD PIN

69142-45000

$3.97

28

PAD & SHIM SET, LH

59303-33810

$101.08

29

SHIM, PAD NO.2

59372-33DM0

$17.30

30

INSULATOR NO.2

69172-01D40

$29.25

31

BOLT (10X20)

01550-1025A

$2.80
