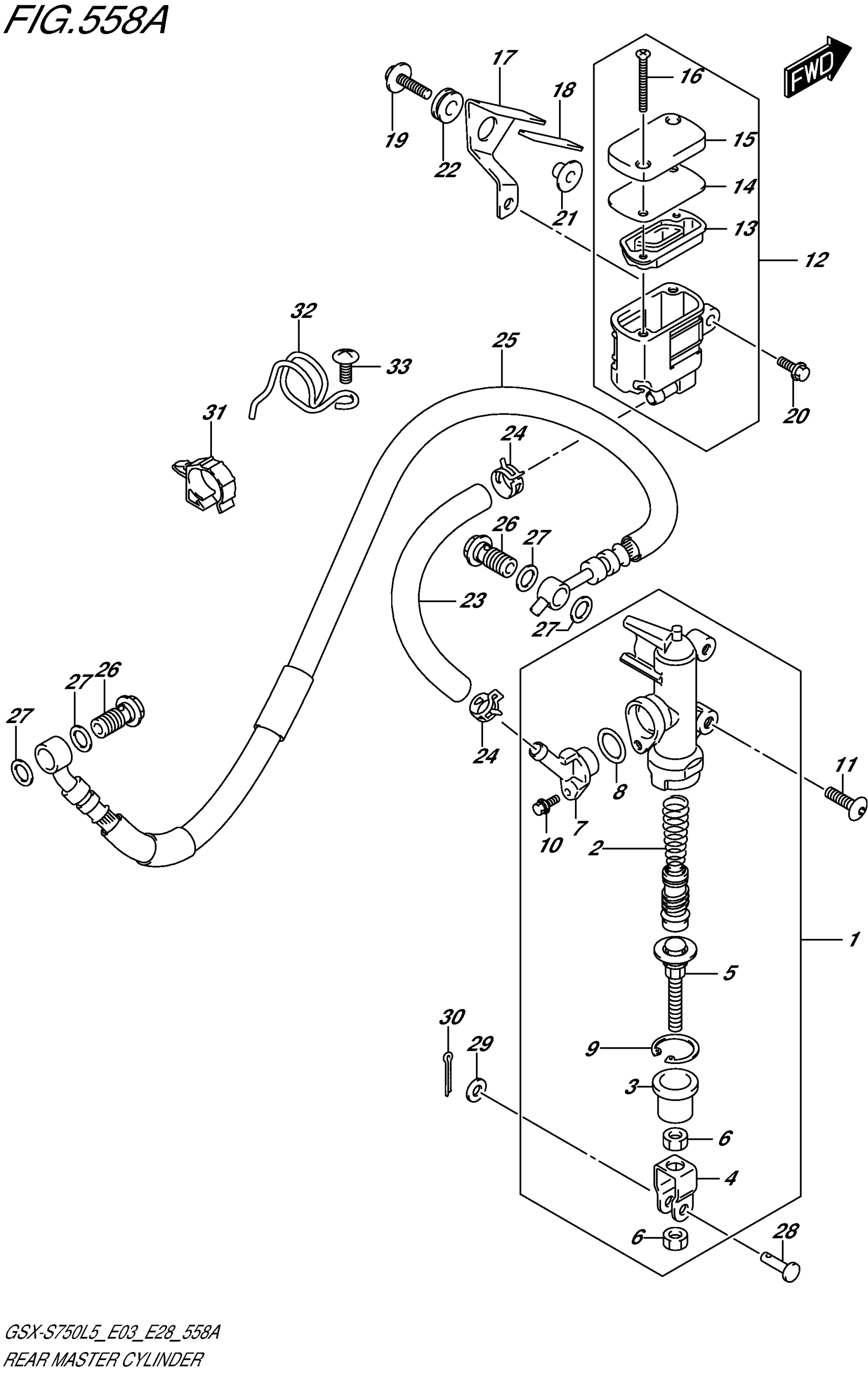

Suzuki GSX-S750L5 (2015) REAR MASTER CYLINDER (GSX-S750L5 E03) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-08J00

$306.18

2

PISTON/CAP SET

69600-34810

$63.75

3

.BOOT

69691-00A00

$5.00

4

YOKE

69692-44H00

$19.03

5

ROD, PUSH

69670-27A30

$29.60

6

NUT

69693-05A00

$1.86

7

CONNECTOR

69672-08J10

$6.56

8

O RING

69686-34200

$2.80

9

CIRCLIP

69665-47H00

$5.65

10

SCREW

02112-7412A

$2.67

11

SCREW (6X20)

09139-06028

$3.33

12

TANK ASSY,RESERVOIR This part replaces 69740-01H10.

69740-18K00

$25.72

13

DIAPHRAGM

69667-01H00

$7.12

14

PLATE, DIAPHRAGM

69668-01H00

$6.75

15

CAP

69669-01H00

Unavailable

16

SCREW

69689-01H00

$5.02

17

BRACKET, REAR RESERVOIR TANK

69750-08J00

Unavailable

18

CUSHION, BRACKET NO.2

69752-08J00

Unavailable

19

BOLT (6X25)

09116-06202

$3.19

20

BOLT

01547-0612A

$2.01

21

SPACER (6.2X8.4X6.9)

09180-06325

$3.47

22

CUSHION (8.4X18X6)

09320-08066

$7.44

23

HOSE,RR RESERVOIR TANK

69731-08J00

$21.23

24

CLIP

09401-12404

$2.37

25

HOSE This part replaces 69480-08J00.

69480-08J01

$91.50

26

UNION

09360-10062

$5.81

27

WASHER (10X15X1.5)

09161-10009

$1.83

28

PIN (6X18.2)

09200-06068

$3.71

29

WASHER

08322-0106A

$1.83

30

COTTER PIN

04111-2015A

$1.22

31

CLAMP

09403-17306

$2.64

32

GUIDE, REAR BRAKE HOSE

61196-08J00

Unavailable

33

SCREW

02142-0616A

$1.37
