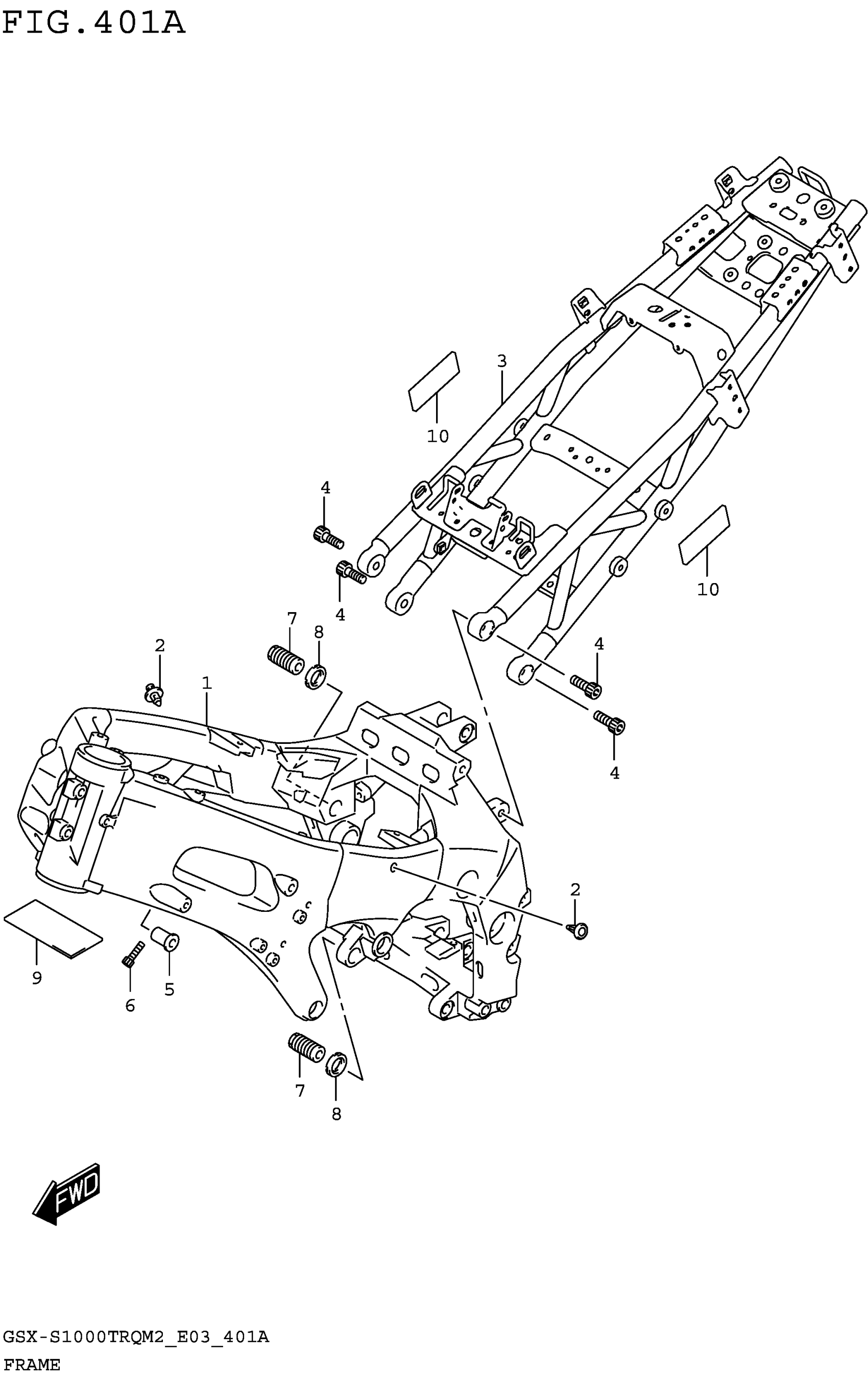

Find the part on the Frame diagram for your 2022 Suzuki GSX-S1000TRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki GSX-S1000TRQM2 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (BLACK)

41100-04K10-YAP

1
Out of stock

2

PLUG, TANK RAIL

43585-01H01

2

$4.76

In stock

3

RAIL, SEAT (SILVER)

41200-48K00-YMC

1
Out of stock

4

BOLT

07120-1030A

4

$3.48

In stock

5

SPACER,ENGINE MOUNTING

41911-40F01

1
Out of stock

6

BOLT (8X32)

09106-08185

1
Out of stock

7

BOLT, CRANK CASE ADJUST LWR

41921-16G01

2
Out of stock

8

NUT,CRANK CASE ADJUST LWR

41922-33E20

2
Out of stock

9

CUSHION, FRAME HEAD

41139-21H10

1
Out of stock

10

PROTECTOR (30X70)

94474-22D00

2
Out of stock
