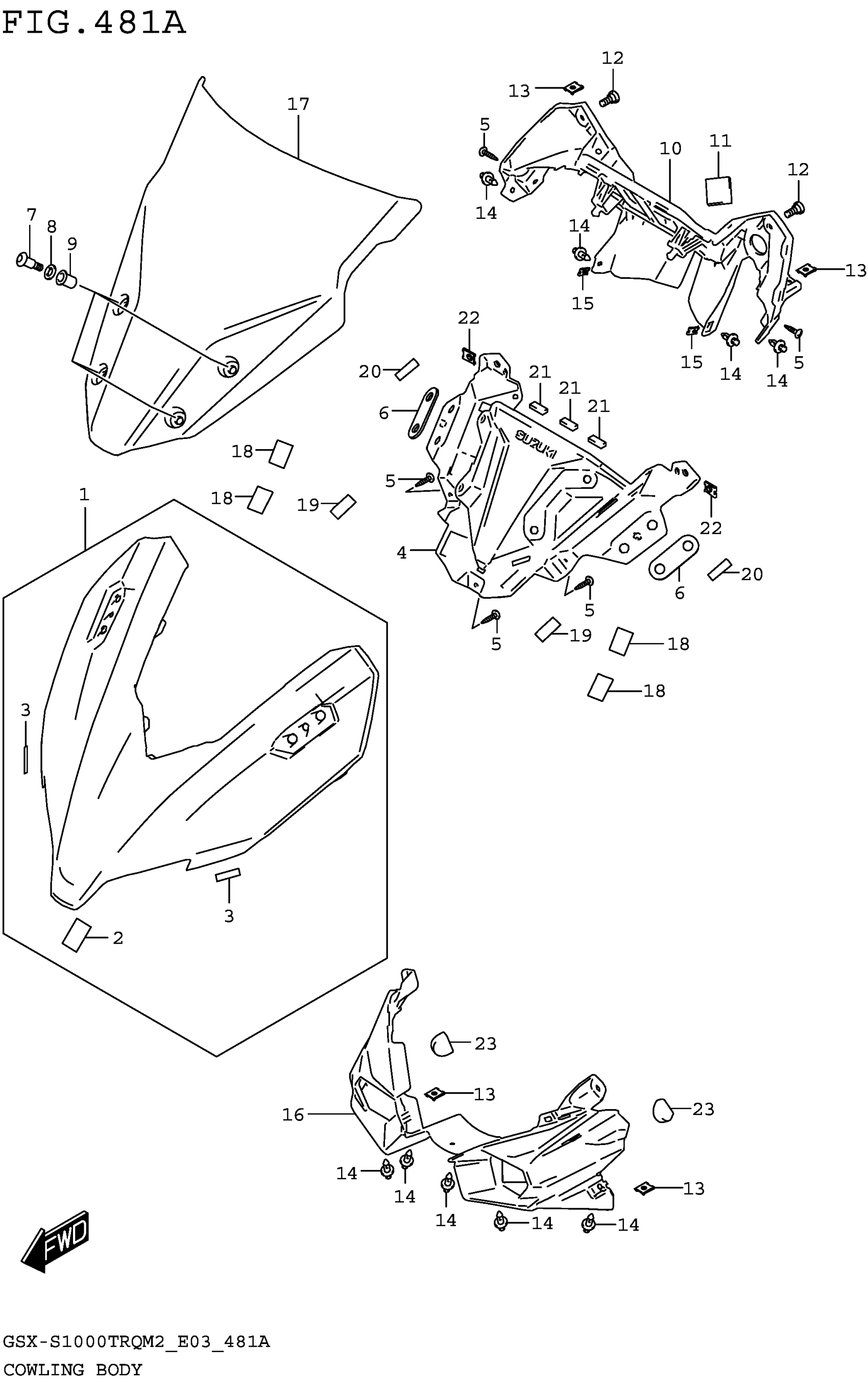

Suzuki GSX-S1000TRQM2 (2022) COWLING BODY Diagram

#

Description
Price

1-1

COWLING, BODY (BLUE)

94410-48K00-YSF

$301.15

1-2

COWLING, BODY (BLACK)

94410-48K00-YVB

$301.15

1-3

COWLING,BODY (BLUE)

94410-48K00-QT8

$301.15

2

FASTENER (25X33X2.6)

44572-02F01

$10.59

3

CUSHION (6X25X1)

94675-07L00

$2.75

4

PANEL, METER FRONT

94641-48K00

$74.98

5

SCREW

03541-0516A

$1.41

6

CUSHION,REAR VIEW MIR

94576-48K00

$8.63

7

SCREW

09139-05032

$2.06

8

WASHER

09160-05048

$1.81

9

NUT (M5)

09159-05019

$6.63

10

PANEL, METER REAR

94640-48K10

$77.67

11

CUSHION (20X30X2)

44556-33H00

$7.32

12

SCREW (5X18)

09139-05094

$4.09

13

NUT (M5)

09148-05052

$3.13

14

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

15

NUT (M5)

09148-05038

$2.01

16

COWLING, BODY LOWER

94431-48K00

$86.48

17

WINDSCREEN

94611-48K00

$246.33

18

CUSHION (20X30X2)

44556-33H00

$7.32

19

CUSHION (10X24X1)

48128-14FA0

$7.30

20

CUSHION

63117-21H00

$4.28

21

CUSHION (6X25X1)

94675-07L00

$2.75

22

NUT (M5)

09148-05052

$3.13

23

CUSHION

09329-18001

$1.97
