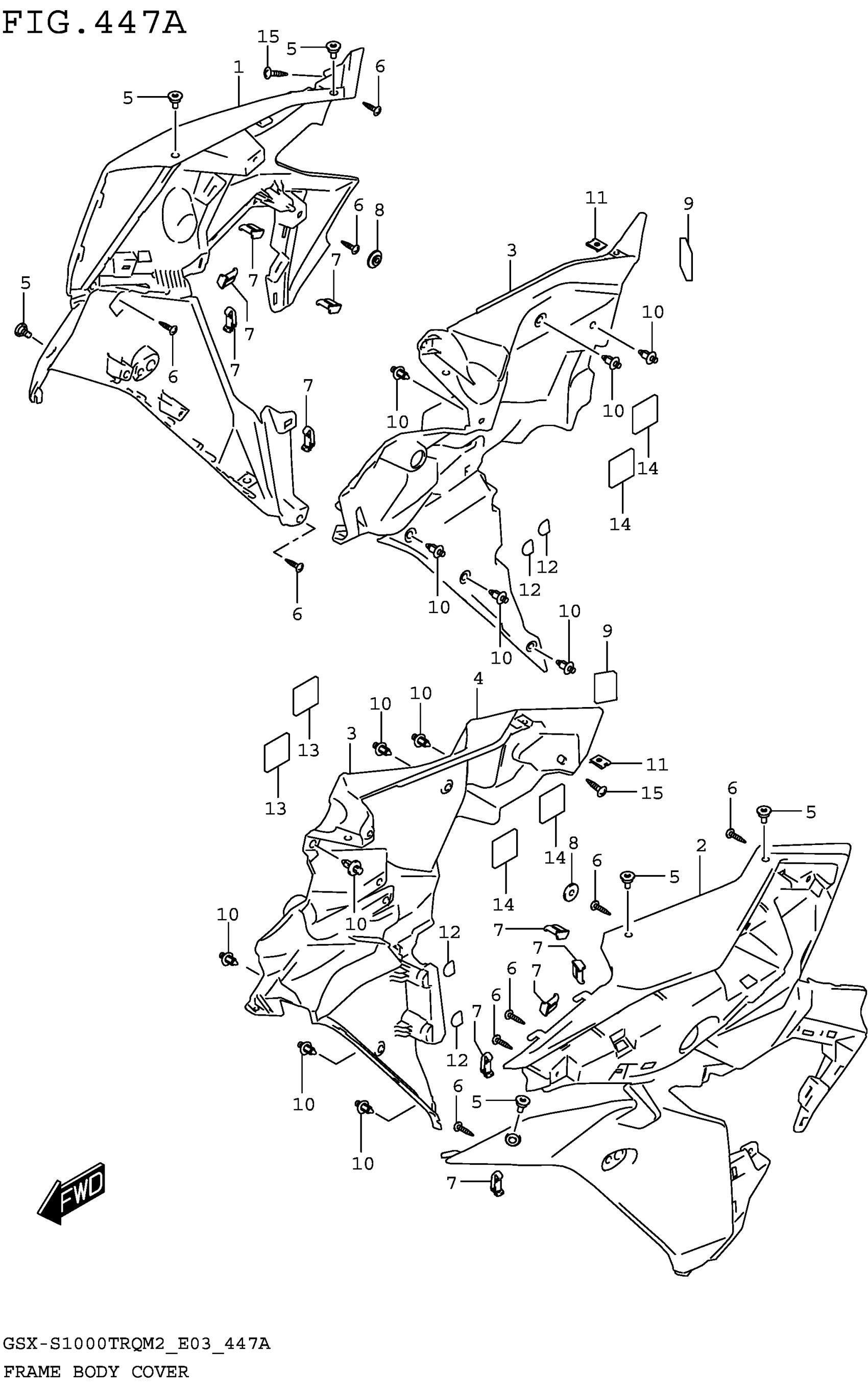

Suzuki GSX-S1000TRQM2 (2022) FRAME BODY COVER Diagram

#

Description
Price

1

COWLING, SIDE FR RH (BLACK)

94472-48K00-YKV

$314.10

2

COWLING, SIDE FR LH (BLACK)

94482-48K00-YKV

$406.22

3

COWLING, UNDER INNER RH

94461-48K00

$99.35

4

COWLING, UNDER INNER LH

94462-48K00

$99.35

5

SCREW (5X13)

09139-05092

$2.29

6

SCREW

03541-0516B

$1.82

7

CLIP

09409-08012

$2.61

8

CUSHION

09320-06026

$4.45

9

CUSHION (20X50X10)

36652-04K00

$2.95

10

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

11

NUT (M5)

09148-05052

$3.13

12

CUSHION

09329-18001

$1.97

13

.CUSHION (20X20X1)

47123-17K00

$4.09

14

CUSHION (20X20X1)

44534-24F00

$5.02

15

SCREW

09136-06002

$2.28
