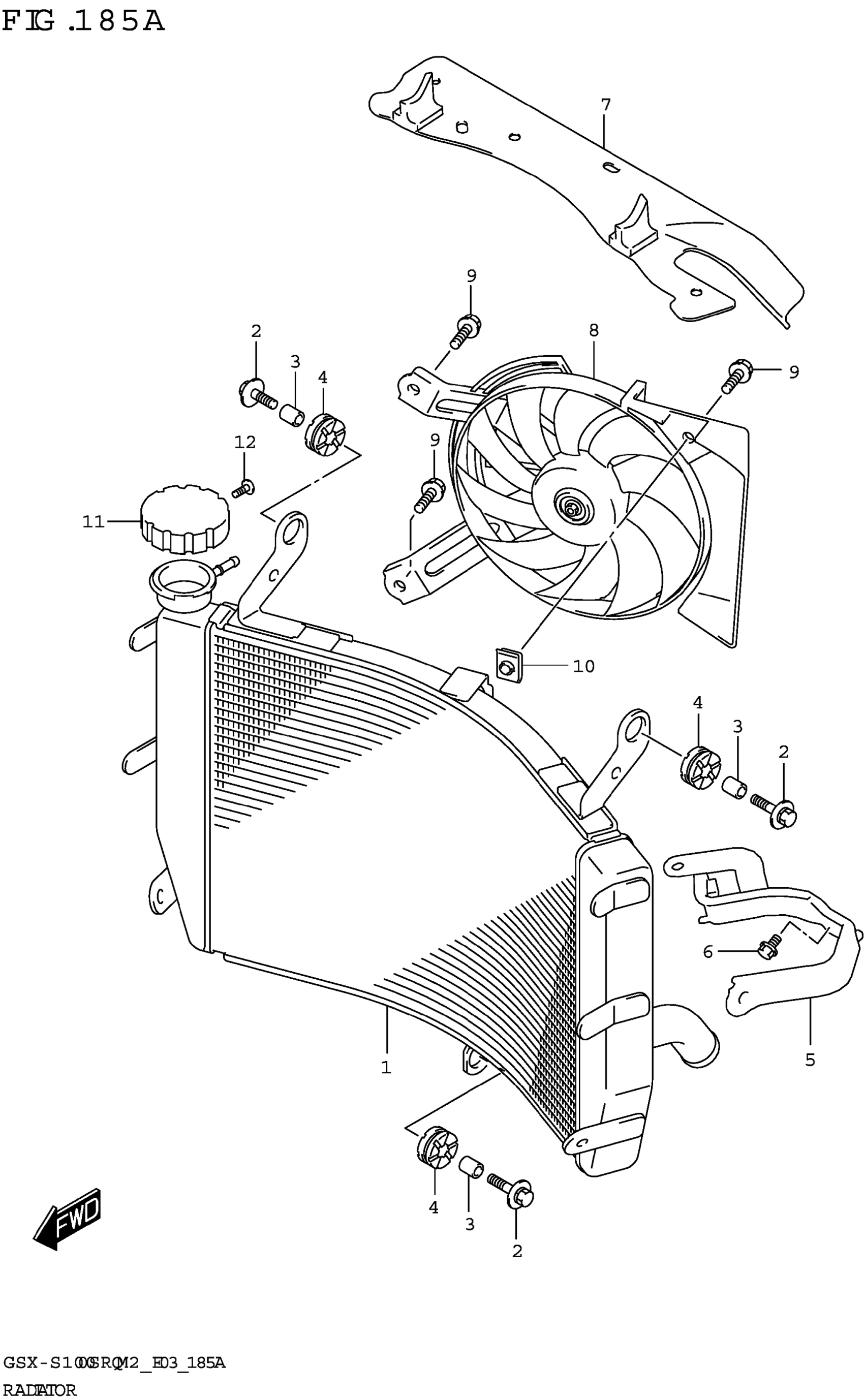

Find the part on the Radiator diagram for your 2022 Suzuki GSX-S1000SRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki GSX-S1000SRQM2 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR, WATER

17710-48K10

—
Out of stock

2

BOLT (6X25)

09118-06097

3
Out of stock

3

SPACER (6.5X10X12)

09180-06290

3
Out of stock

4

CUSHION

09320-10051

3
Out of stock

5

BRACKET, RADIATOR LOWER | LOWER

17760-07L00

1
Out of stock

6

BOLT

01550-0612A

1
Out of stock

7

SHIELD, RADIATOR HEAT

17771-48K00

1
Out of stock

8

FAN ASSY, RADIATOR

17800-48K00

1
Out of stock

9

BOLT,FAN ASSY

17711-14G00

3
Out of stock

10

NUT,RADIATOR FAN

17802-14F00

1
Out of stock

11

CAP,RADIATOR (1.1)

17730-08D10

1
Out of stock

12

SCREW,RADIATOR CAP

17733-03D10

1

$2.97

In stock
