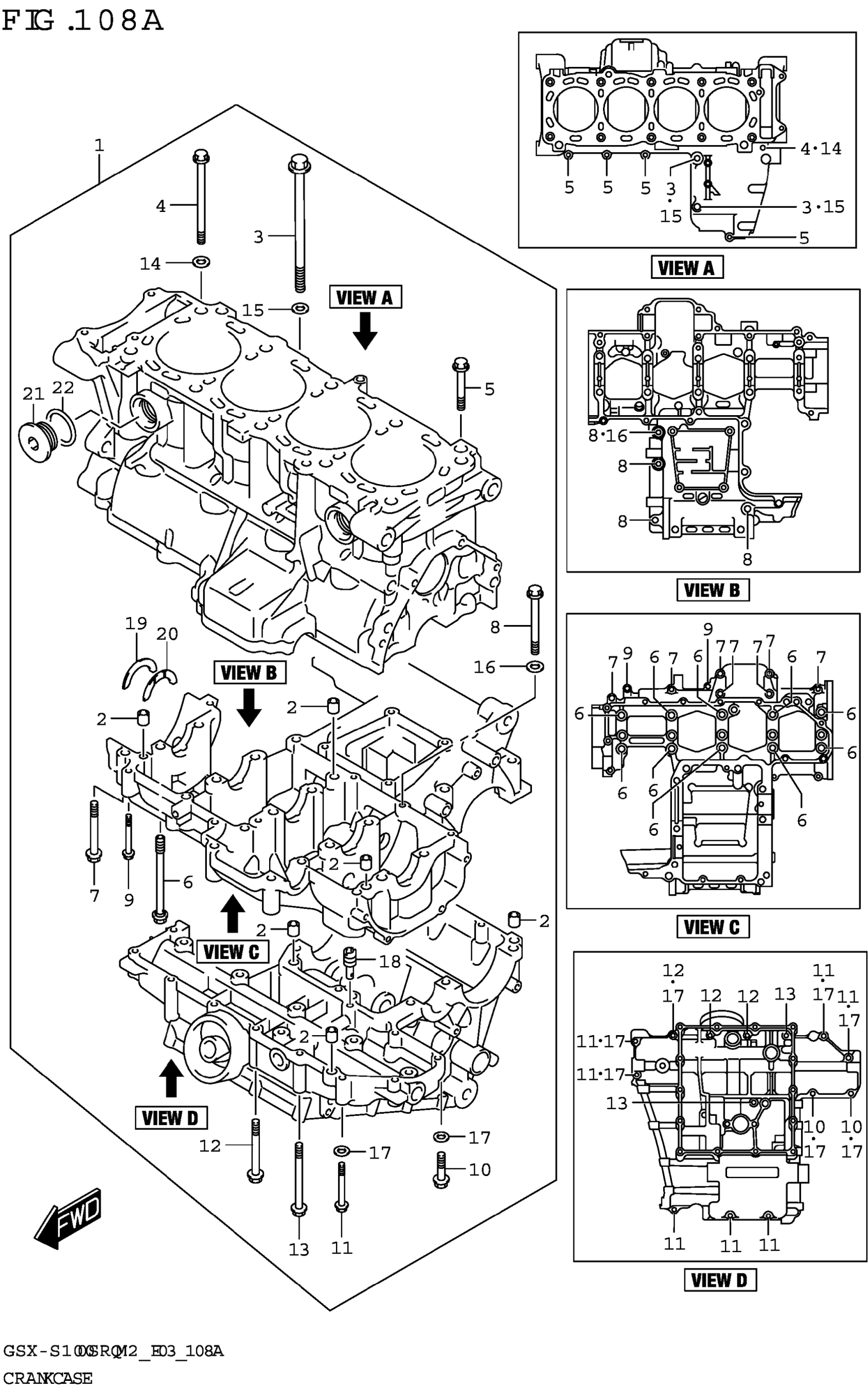

Find the part on the Crankcase diagram for your 2022 Suzuki GSX-S1000SRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki GSX-S1000SRQM2 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11301-04860

1

$3,642.75

In stock

2

PIN,CRANKCASE

11319-33E50

6

$5.45

In stock

3

.BOLT (8X120)

09106-08198

—
Out of stock

4

.BOLT

01547-0680A

1
Out of stock

5

BOLT

01547-0640A

4
Out of stock

6

.BOLT (9X95)

09103-09012

10

$8.52

In stock

7

.BOLT (8X55)

09103-08339

7

$3.43

In stock

8

.BOLT

07120-0865A

4

$5.17

In stock

9

BOLT

01547-0640A

2
Out of stock

10

BOLT

01547-0630A

2

$2.48

In stock

11

BOLT

01547-0640A

7
Out of stock

12

BOLT

01547-0660A

3

$2.92

In stock

13

.BOLT

01547-0670A

2
Out of stock

14

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

15

GASKET (8.2X14X1)

09168-08016

2
Out of stock

16

GASKET (8.2X14X1)

09168-08016

1
Out of stock

17

GASKET (5.8X13X1.2)

09168-06023

7
Out of stock

18

JET (#140)

09493-28012

1
Out of stock

19

.BEARING,CRANK THRUST

12228-48B00-0E0

1

$9.58

In stock

20-1

.BEARING,CRANK THRUST

12228-48B00-0B0

1

$13.05

In stock

20-2

.BEARING,CRANK THRUST

12228-48B00-0C0

1

$12.82

In stock

20-3

.BEARING,CRANK THRUST

12228-48B00-0D0

1

$13.30

In stock

20-4

.BEARING,CRANK THRUST

12228-48B00-0E0

1

$9.58

In stock

20-5

.BEARING,CRANK THRUST

12228-48B00-0F0

1

$13.30

In stock

20-6

.BEARING,CRANK THRUST

12228-48B00-0G0

1

$13.30

In stock

20-7

.BEARING,CRANK THRUST

12228-48B00-0H0

1

$12.82

In stock

21

.PLUG,WATER JACKET

11318-35F00

3

$18.93

In stock

22

3

$2.06

In stock
