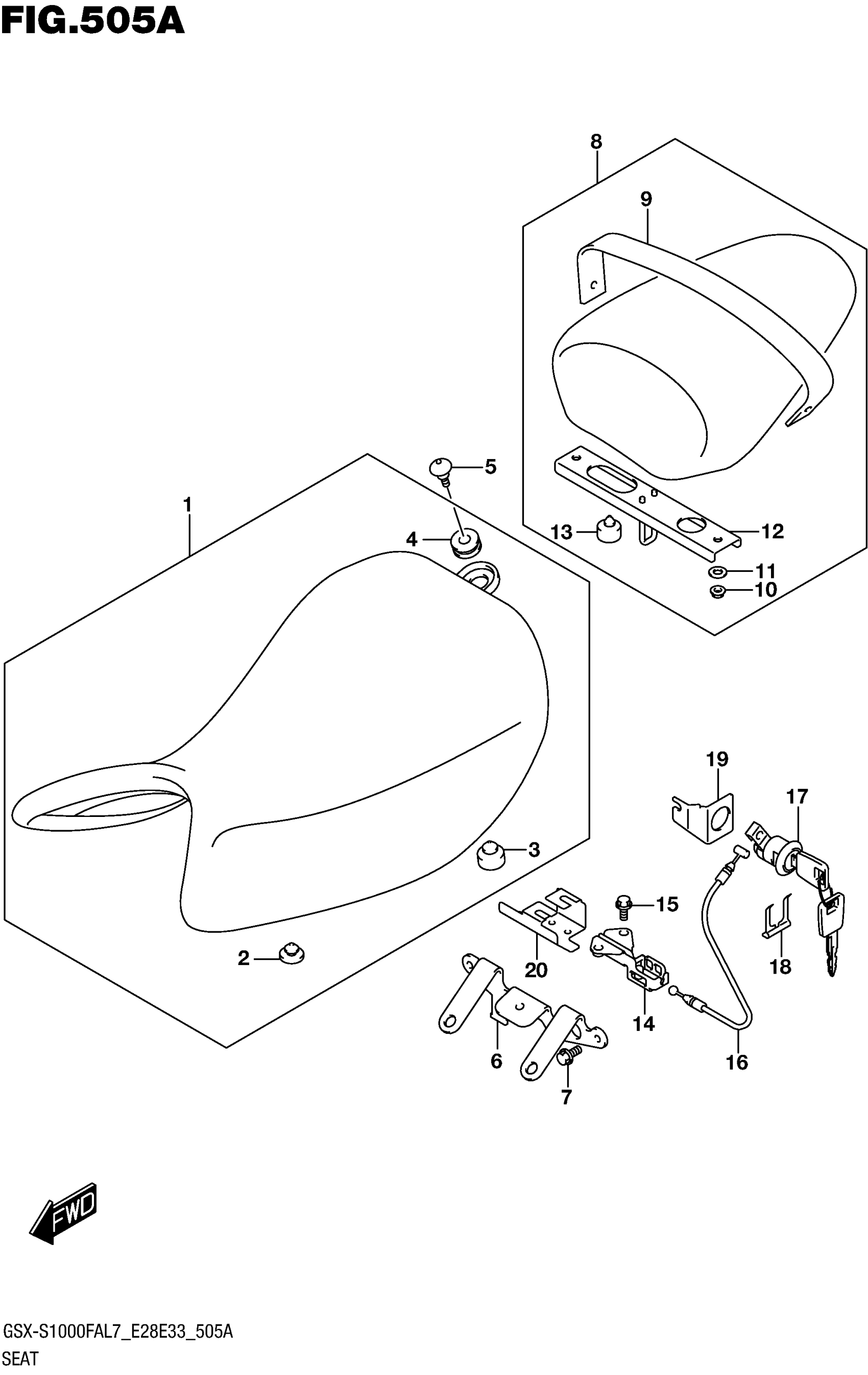

Find the part on the Seat diagram for your 2017 Suzuki GSX-S1000FAL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki GSX-S1000FAL7 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY (BLACK) This part replaces 45100-04K00-DW2.

45100-04K01-DW2

1
Out of stock

2

.CUSHION

09329-10001

2
Out of stock

3

.CUSHION

09321-10011

4
Out of stock

4

.CUSHION,SEAT MOUNT

45148-04K00

1
Out of stock

5

SCREW (6X20)

09139-06193

1
Out of stock

6

BRACKET, SEAT

45120-04K00

1
Out of stock

7

BOLT

01550-0612A

2
Out of stock

8

SEAT ASSY,PILLION (BLACK) This part replaces 45300-04K00-DW2.

45300-04K02-DW2

1
Out of stock

9

.BAND ASSY, SEAT (BLACK)

45380-04K00-P3H

1
Out of stock

10

.NUT

08316-1006A

2
Out of stock

11

.WASHER (6.5X16X1)

09160-06129

2
Out of stock

12

.PLATE,SEAT LOCK This part replaces 45291-04K00.

45291-04K01

1
Out of stock

13

.CUSHION, SEAT MOUNT RR

45148-20G00

2
Out of stock

14

BRACKET,STRIKER SUPPORT

45220-04K00

1
Out of stock

15

BOLT

01550-0612A

2
Out of stock

16

CABLE,SEAT LOCK

45280-04K00

1
Out of stock

17

LOCK SET, SEAT This part replaces 95700-14F00.

95700-14810

1
Out of stock

18

PLATE, SEAT LOCK ASSY

45289-11F00

1
Out of stock

19

GUIDE, SEAT LOCK CABLE

45288-14F00

1
Out of stock

20

GUARD, SEAT LOCK

45289-04K01

—
Out of stock
