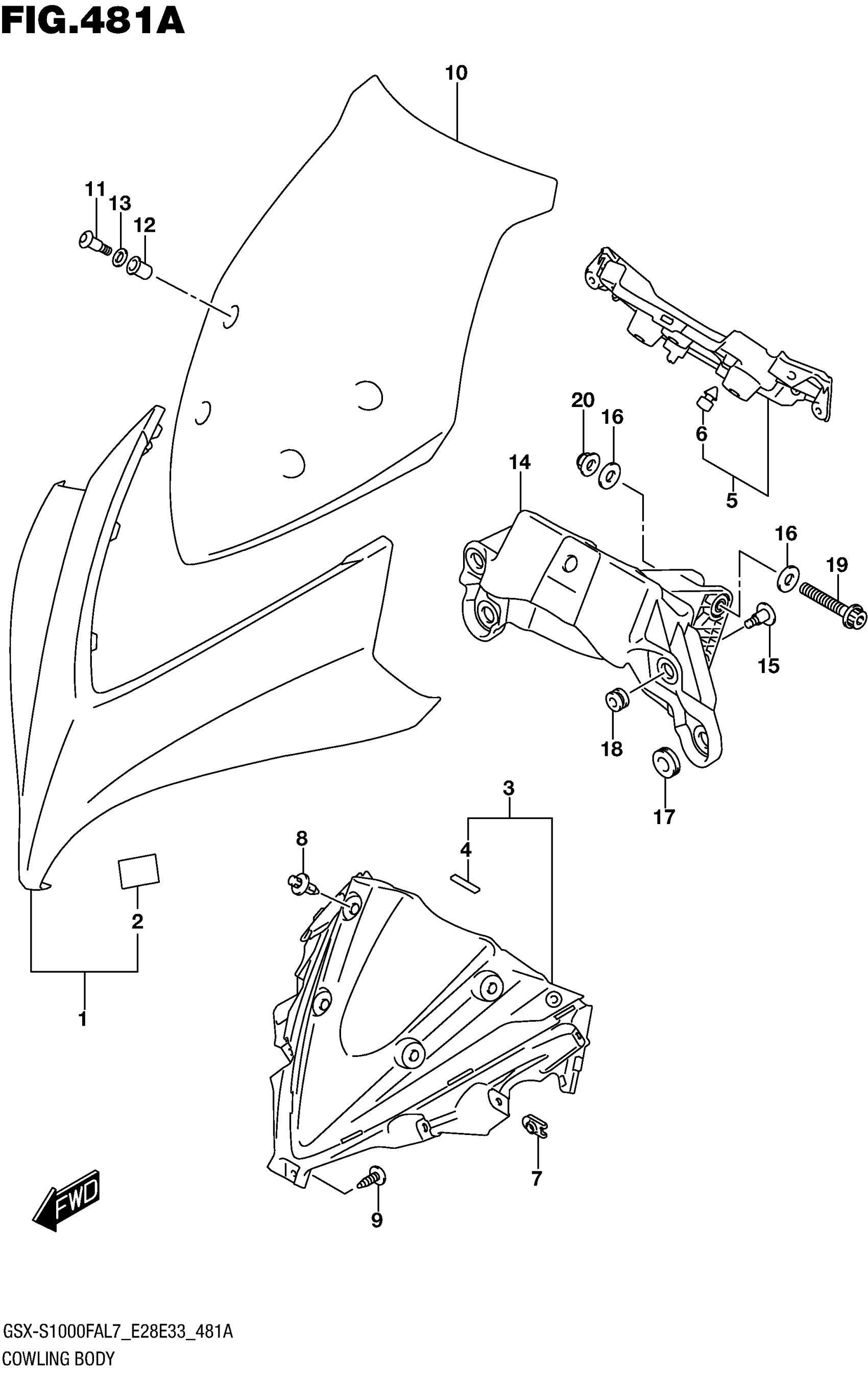

Suzuki GSX-S1000FAL7 (2017) COWLING BODY Diagram

#

Description
Price

1-1

COWLING, BODY (GRAY) | FOR PGZ

94410-04K00-PGZ

Unavailable

1-2

COWLING,BODY (BLUE) | FOR YSF

94410-04K00-YSF

$246.58

1-3

COWLING, BODY (RED) | FOR AV4

94410-04K00-YYG

$246.58

2

.FASTENER

44572-02F01

$10.59

3

PANEL,METER FRONT

94640-04K00

$26.10

4

.CUSHION, UNDER COWLING NO.1

94476-38C00

Unavailable

5

PANEL,METER REAR This part replaces 94650-04K00.

94650-04K10

$34.18

6

CUSHION This part replaces 09321-06013.

09321-06036

$1.56

7

NUT

09148-06020

$4.15

8

CLIP (BLACK)

09409-06314-5PK

$2.80

9

SCREW

03541-0516A

$1.41

10

WINDSCREEN

94611-04K00

$159.95

11

SCREW (5X18)

09139-05032

$2.06

12

NUT

09159-05019

$6.63

13

WASHER

09160-05048

$1.81

14

BRACE,COWLING

94510-04K00

$158.77

15

BOLT (6X20)

09139-06190

$3.89

16

WASHER (8.5X20X1.6) This part replaces 09160-08124.

09160-08054

$1.46

17

CUSHION

09320-08028

$2.82

18

CUSHION

09320-09501

$2.13

19

BOLT

07120-0855A

$4.70

20

NUT

08313-2008A

$2.58

21

COLOR :

SPECIAL NOTE

Unavailable

21

AV4=YVB(BLACK),YYG(RED)

SPECIAL NOTE

Unavailable
