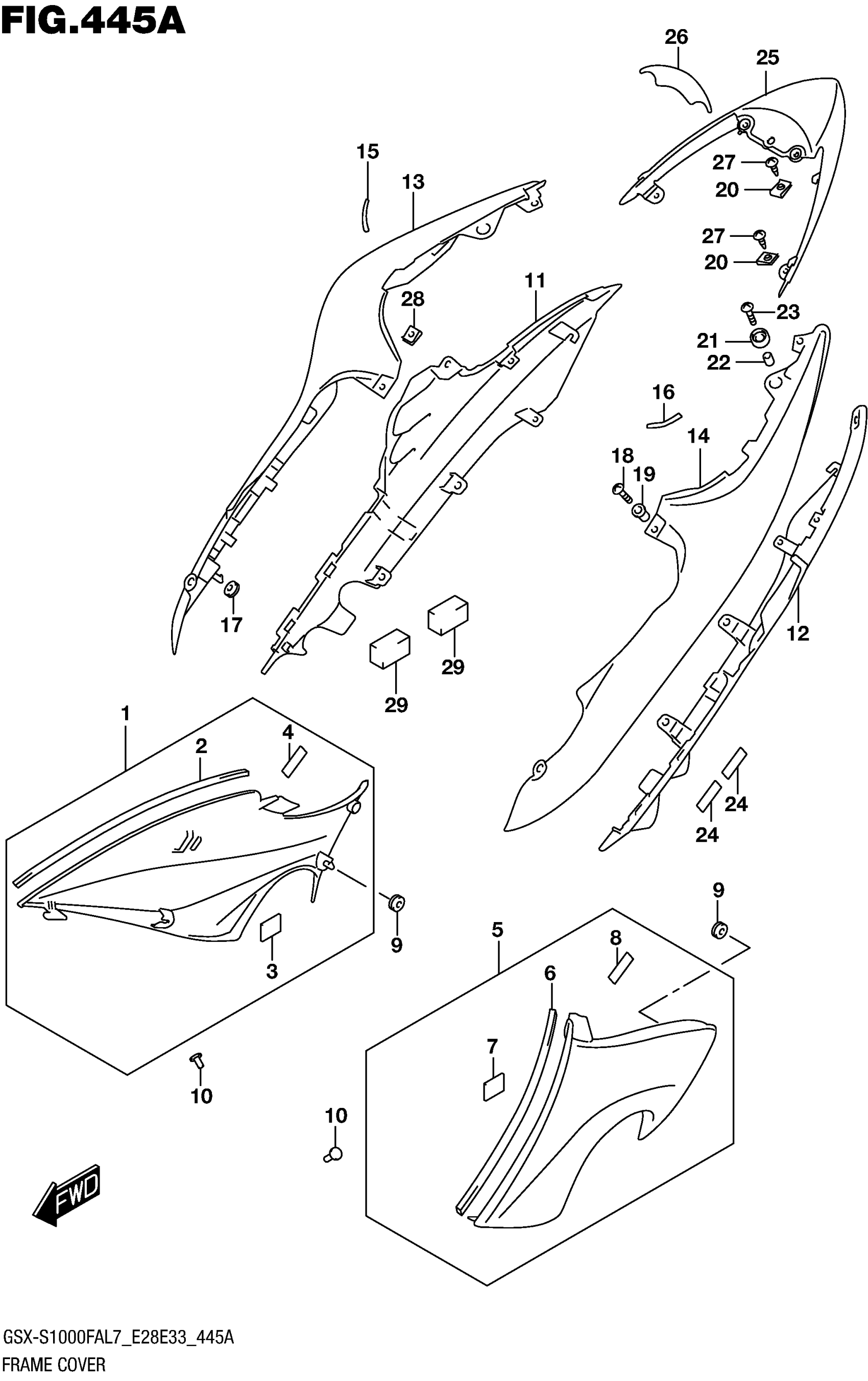

Suzuki GSX-S1000FAL7 (2017) FRAME COVER (PGZ,AV4) Diagram

#

Description
Price

1

COVER,FRAME FRONT RH

47110-04K00

$75.48

2

.CUSHION, FRONT NO.3

44277-37H00

$6.87

3

.FASTENER

44572-13G00

$10.13

4

.CUSHION, FRONT NO.2

94476-38C00

Unavailable

5

COVER,FRAME FRONT LH

47210-04K00

$58.38

6

.CUSHION, FRONT NO.3

44277-37H00

$6.87

7

.FASTENER

44572-13G00

$10.13

8

.CUSHION, FRONT NO.2

94476-38C00

Unavailable

9

CUSHION

09320-06504

$4.47

10

CLIP

09409-10314

$1.99

11

COVER,FRAME RR LWR RH

47131-04K00

$27.65

12

COVER,FRAME RR LWR LH

47231-04K00

$28.17

13-1

COVER, FRAME REAR UPPER RH | FOR PGZ

47121-04K00-PGZ

$206.70

13-1

(GRAY)

47121-04K00-PGZ

$206.70

13-2

COVER, FRAME REAR UPPER RH | FOR AV4

47121-04K00-YVB

$204.08

13-2

(BLACK)

47121-04K00-YVB

$204.08

14-1

COVER, FRAME REAR UPPER LH | FOR PGZ

47221-04K00-PGZ

$137.83

14-1

(GRAY)

47221-04K00-PGZ

$137.83

14-2

COVER, FRAME REAR UPPER LH | FOR AV4

47221-04K00-YVB

$141.28

14-2

(BLACK)

47221-04K00-YVB

$141.28

15

TAPE,FRAME COVER RH

47313-04K01

Unavailable

16

TAPE,FRAME COVER LH

47314-04K01

$14.37

17

CUSHION

09320-08028

$2.80

18

SCREW

02142-1520B

$2.34

19

NUT

09159-05019

$6.44

20

NUT (M5)

09148-05047

$2.02

21

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.80

22

SPACER (6.5X10X7)

09180-06283

$1.89

23

SCREW (6X20)

09136-06105

$1.99

24

TAPE (6X25X0.13)

94443-06G00

$2.97

25-1

COVER,FRAME CENTER (BLACK) | FOR PGZ

47311-04K00-YKV

$124.25

25-2

COVER, FRAME CENTER (RED) | FOR AV4

47311-04K00-YYG

$128.98

26

TAPE,FRAME COVER CTR

47312-04K00

$14.37

27

SCREW

03541-0512B

$1.77

28

NUT (M5)

09148-05047

$2.02

29

CUSHION, FRAME COVER LOWER | CUT AS REQUIRED

17798-39G00

$6.12

30

COLOR :

SPECIAL NOTE

Unavailable

30

AV4=YVB(BLACK),YYG(RED)

SPECIAL NOTE

Unavailable
