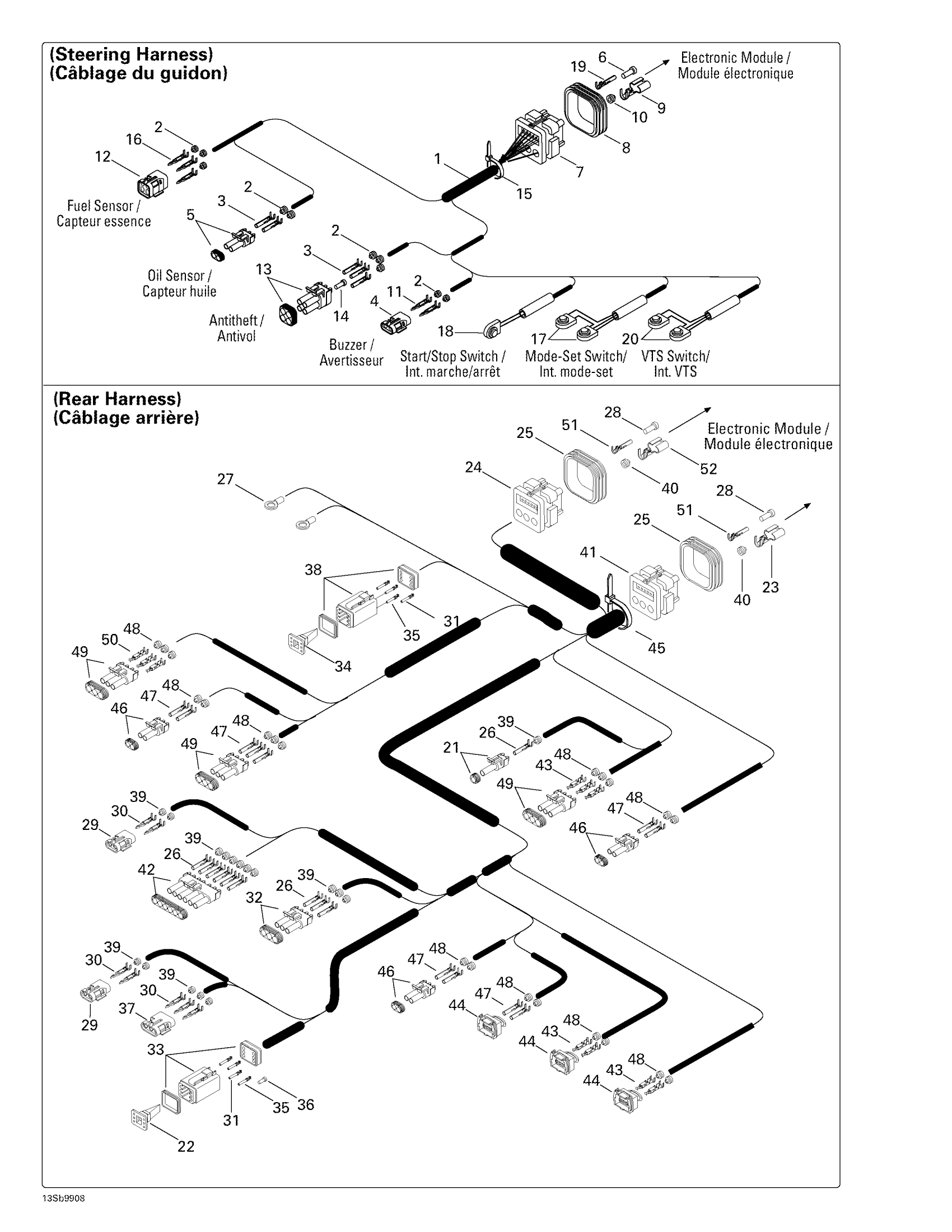

Sea-doo GSX RFI, 5637/5638/5652/5829, 1999 Electrical Harness Diagram

#

Description
Price

1

Steering Harness | Includes 1 - 20.

278001393

Unavailable

2

Wire Seal

278000218

$3.48

3

Female Terminal

278000223

$2.55

4

Female Housing, 2 Circuits

278000217

$7.59

5

Male Connector, 2 Circuits

278000220

$11.02

6

SEALING CAP - Call your local BRP dealership

293000070

$4.58

7

Male Terminal Housing, 26 Circuits

278001062

Unavailable

8

WIRE SEAL - Call your local BRP dealership

278001307

$11.51

9

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

10

WIRE SEAL - Call your local BRP dealership

278000996

$2.37

11

Male Terminal | XT Models

278000222

$2.55

12

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

13

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

$9.97

14

Wire Seal

278000216

$2.55

15

Tie Wrap 142 mm

293750002

$0.88

16

Female Terminal

278001114

$2.55

17

<> Switch

278001375

Unavailable

18

Stop/Start Switch Ass'y

278001403

Unavailable

19

FEMALE TERMINAL - Call your local BRP dealership

278000995

$4.58

20

VTS Switch (5580-5582)

278001404

Unavailable

21

Rear Harness | Includes 21 - 53.

278001357

Unavailable

21

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

22

Male Lock, 4 Circuits | CE

278000738

$2.91

23

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

24

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

$32.28

25

WIRE SEAL - Call your local BRP dealership

278001307

$11.51

26

Female Terminal

278000223

$2.55

27

Open Barrel Terminal

278001392

$4.12

28

SEALING CAP - Call your local BRP dealership

293000070

$4.58

29

Female Housing, 2 Circuits

278000217

$7.59

30

Male Terminal

409004300

$5.46

31

FEMALE TERMINAL - Call your local BRP dealership

278001276

Unavailable

32

Male Housing, 3 Circuits

278000273

$7.59

33

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

34

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

35

Female Terminal

278000632

$1.69

36

Sealing Cap

293000052

$2.55

37

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

38

Male Connector, 4 Circuits | CE

278000739

$14.92

39

Wire Seal

278000218

$3.48

40

Seal

278001223

Unavailable

41

MALE CONNECTOR, 26 CIRCUITS - Call your local BRP dealership

278001211

$35.35

42

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

43

Female Terminal

278001310

Unavailable

44

Male Connector, 2 Circuits

278001003

$44.58

45

Tie Wrap 142 mm

293750002

$0.88

46

Male Housing, 2 Circuits

278001005

$15.57

47

Female Terminal

278000998

$3.48

48

Wire Seal

278000999

$2.55

49

Male Housing, 3 Circuits

278000997

$15.57

50

FEMALE TERMINAL - Call your local BRP dealership

278001210

$8.43

51

FEMALE TERMINAL - Call your local BRP dealership

278000995

$4.58

52

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable
