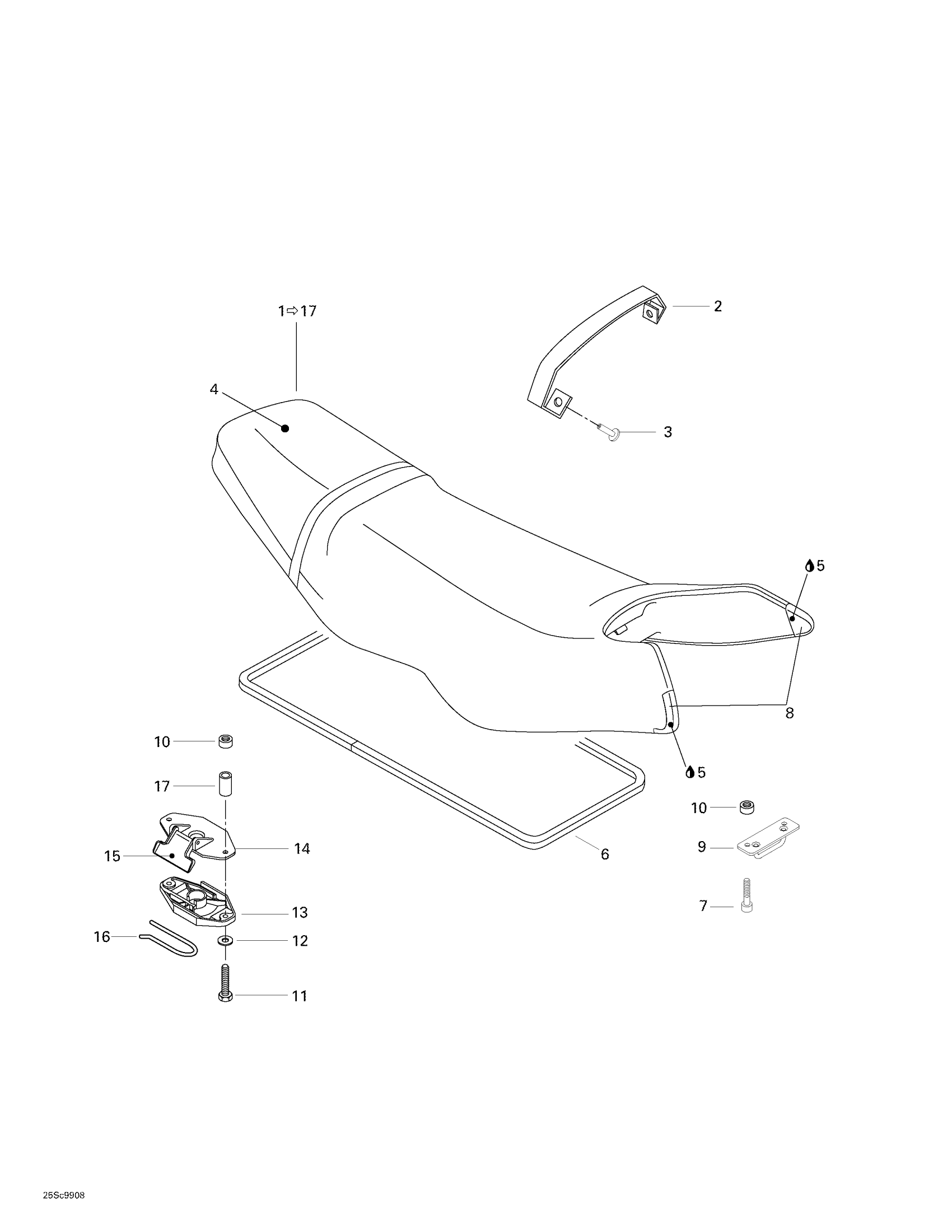

Sea-doo GSX RFI, 5637/5638/5652/5829, 1999 Seat And Engine Cover Diagram

#

Description
Price

1

Seat Ass'y | Includes 1 - 17.

269000529

Unavailable

Seat Ass'y | GSX RFI 5638/5829.

269000530

Unavailable

2

Seat Strap

269000527

Unavailable

Seat Strap | GSX RFI 5638/5829.

269000561

Unavailable

3

Rivet | Model-T3

293150067

$2.89

4

Seat Cover with Foam

269000526

Unavailable

Seat Cover with Foam | GSX RFI 5638/5829.

269000560

Unavailable

5

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

6

Was 293200017 Neoprene Seal

219704365

$149.99

7

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

8

RH CORNER SEAT - Call your local BRP dealership

269000627

Unavailable

RH Corner Seat | GSX RFI 5638/5829.

269000562

Unavailable

LH Corner Seat

269000628

Unavailable

LH Corner Seat | GSX RFI 5638/5829.

269000563

Unavailable

9

Hook (Seat Base)

291001357

Unavailable

10

Nut Welded, M6

293100003

$9.12

11

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

12

Stainless Flat Washer M6

234061600

$0.33

13

Latch Ass'y

269700109

$24.99

14

Latch Ass'y

269700109

$24.99

15

Latch Ass'y

269700109

$24.99

16

Latch Spring

269700017

$9.19

17

SPACER - Call your local BRP dealership

291000532

Unavailable
