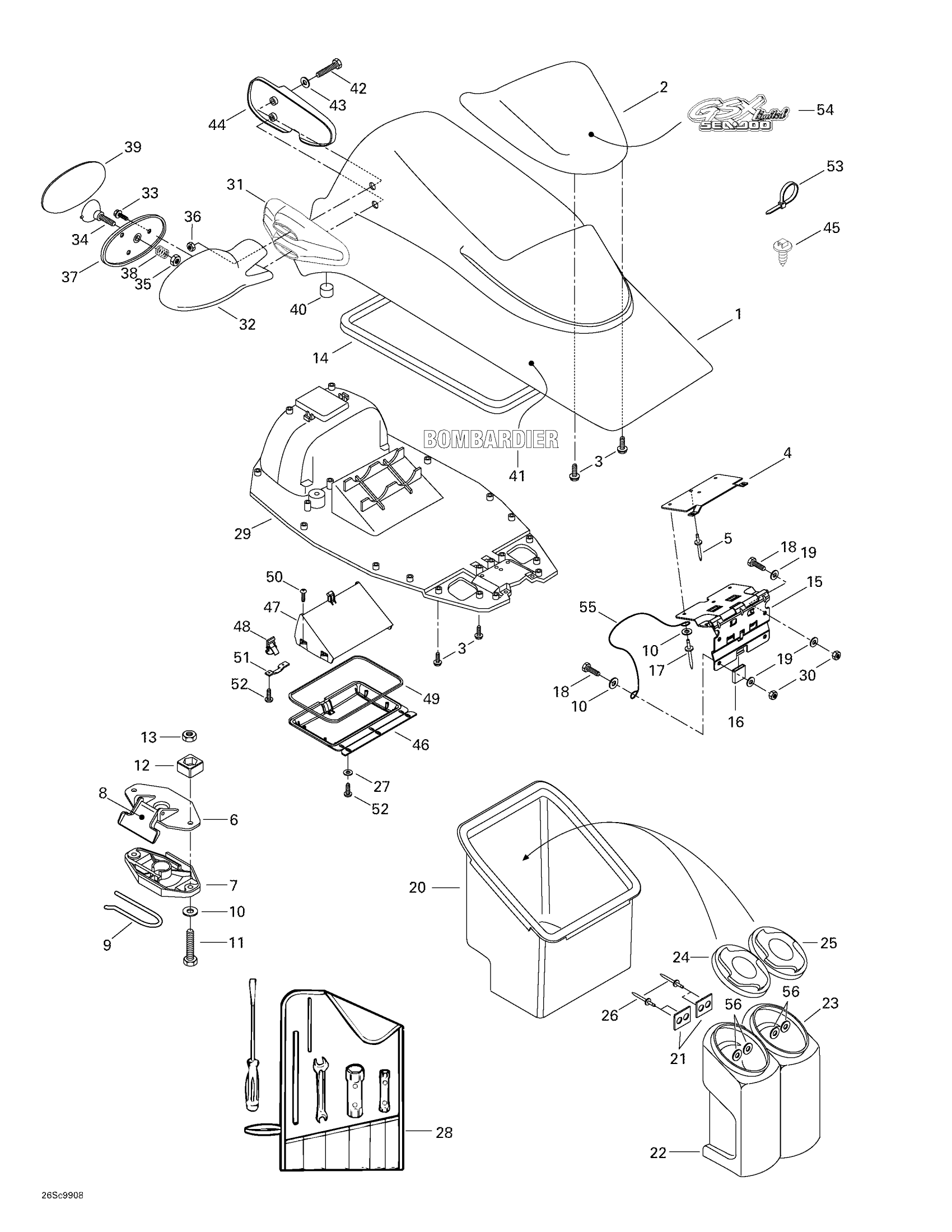

Sea-doo GSX RFI, 5637/5638/5652/5829, 1999 Front Storage Compartment Diagram

#

Description
Price

1

Upper Storage Cover

269500629

Unavailable

Storage Cover Upper | GSX RFI 5638/5829.

269500578

Unavailable

2

Deflector

269500630

Unavailable

Deflector | GSX RFI 5638/5829.

269500579

Unavailable

3

Hex. Flange Screw K40 X 13

241141360

$0.67

4

Retainer Plate

269500280

Unavailable

5

Pop Rivet 3/16"

293150039

$1.49

6

Latch Ass'y

269700109

$24.99

7

Latch Ass'y

269700109

$24.99

8

Latch Ass'y

269700109

$24.99

9

Latch Spring

269700017

$9.19

10

Stainless Flat Washer M6

234061600

$0.33

11

Hex. Screw M6 X 30

207063060

$1.89

12

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

13

Hex. Elastic Stop Nut M6

232561600

$1.15

14

Was 293200017 Neoprene Seal

219704365

$149.99

15

Hinge Ass'y

269500613

Unavailable

16

Protector Cap

293830046

Unavailable

17

Pop Rivet 3/16"

293150039

$1.49

18

Hex. Forming Screw M6 X 20

207162060

$1.29

19

Flat Washer M6, Stainless

234062600

$0.77

20

Storage Tray

269500286

Unavailable

21

GASKET - Call your local BRP dealership

293250037

Unavailable

22

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

23

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

24

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

25

Storage Cap

269500604

Unavailable

26

Pop Rivet 1/8''

293150033

Unavailable

27

Flat Washer 4 mm, Stainless

234042600

$1.15

28

Tool Kit

295000066

Unavailable

29

Lower Storage Cover

269500655

Unavailable

30

Hex. Elastic Stop Nut M6

232561600

$1.15

31

Support (Mirror) RH

269500400

Unavailable

Support (Mirror) RH | GSX RFI 5638/5829.

269500625

Unavailable

Support (Mirror) LH

269500401

Unavailable

Support (Mirror) LH | GSX RFI 5638/5829.

269500626

Unavailable

32

Mirror RH Ass'y | Includes 32 - 40.

269500418

Unavailable

Mirror RH Ass'y | GSX RFI 5638/5829.

269500623

Unavailable

Mirror LH Ass'y

269500419

Unavailable

Mirror LH Ass'y | GSX RFI 5638/5829.

269500624

Unavailable

33

Hex. Flange Screw K40 X 16

241141660

$1.48

34

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

35

Hex. Elastic Stop Nut M6

232561600

$1.15

36

Hex. Nut M8

232081600

$1.47

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Mirror Spring

269500453

$10.49

39

MIRROR - Call your local BRP dealership

269500454

Unavailable

40

Rubber Bumper

293830005

$8.09

41

<> Decal | GSX RFI 5637/5638/5829/5652.

219901206

Unavailable

<> Decal | .

219901207

Unavailable

42

Hex. Screw M8 x 140

230084060

Unavailable

43

Stainless, Flat Washer 8 mm

234081600

$0.55

44

Spacer RH

269500383

Unavailable

Spacer LH

269500384

Unavailable

45

Mount Dart

293730040

$1.04

46

GLOVE BOX INFERIOR - Call your local BRP dealership

269500656

Unavailable

47

Glove Box Upper

269500519

Unavailable

48

Latch

269500657

Unavailable

49

Gasket

293250083

Unavailable

50

Oval Philipp Screw KA30 x 12

241731260

$1.05

51

Retainer Plate

269500658

Unavailable

52

Hex. Flange Screw K40 X 13

241141360

$0.67

53

Tie Wrap 142 mm

293750002

$1.25

54

<> Identification Decal | GSX RFI 5637/5638/5829/5652.

219901142

Unavailable

<> Identification Decal | .

219901203

Unavailable

55

RETAINER CABLE - Call your local BRP dealership

269500524

Unavailable

56

Flat Washer M3, Stainless

234032600

$0.55
