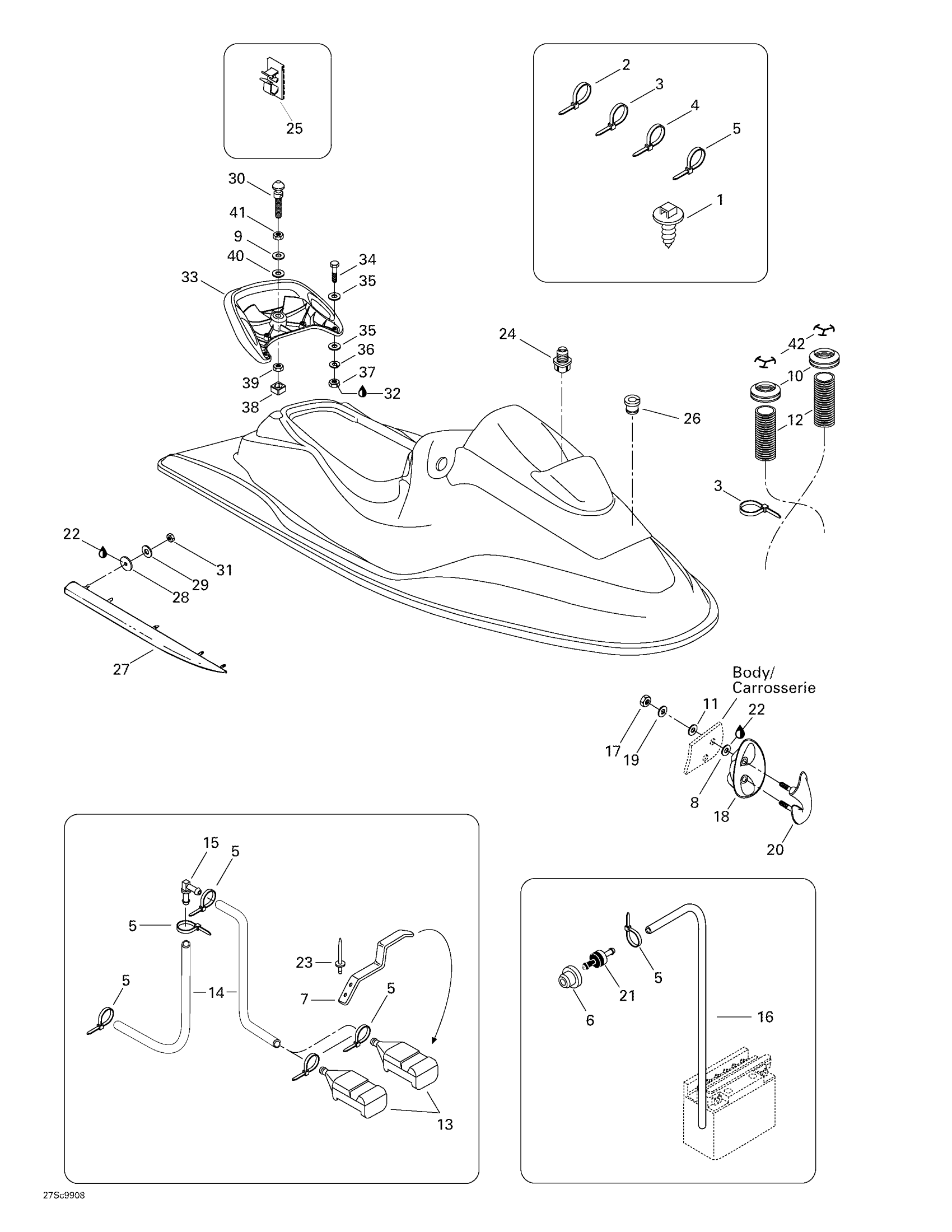

Sea-doo GSX RFI, 5637/5638/5652/5829, 1999 Body Diagram

#

Description
Price

1

Mount Dart

293730040

$0.86

2

Tie-Rap 180 mm

414115200

$0.09

3

Tie Wrap 368 mm

293750008

$0.85

4

Tie Wrap 142 mm

293750002

$0.88

5

Tie Wrap 94 mm | 4X4

293750001

$0.83

6

Grommet

293720029

$1.13

7

LH SPRING CLIP - Call your local BRP dealership

292000398

Unavailable

8

Stainless, Flat Washer 8 mm

234081600

$0.46

9

Flat Washer 10 mm, Stainless

234002600

$1.85

10

Grommet

293720036

Unavailable

11

Rubber Washer

293830037

$2.68

12

Vent Tube

291000870

Unavailable

13

Screen Bailer

292000079

Unavailable

14

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

15

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

16

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

17

Hex. Elastic Nut M8

232581600

$1.25

18

Shell

292000488

Unavailable

Shell

292000515

Unavailable

19

Flat Washer 8 mm, Stainless

234082600

$1.98

20

Eye-Bow (Black) This part replaces 292000708.

292000452

$33.12

Eye-Bow (Black) This part replaces 292000708.

292000452

$33.12

21

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

22

Silicone Sealant 51388, 300 ml

296000309

$35.72

23

Avdel Rivet 3/16"

293150037

$0.47

24

GROMMET - Call your local BRP dealership

293720042

Unavailable

25

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

26

Grommet

293720046

Unavailable

27

RH Sponson

292000494

Unavailable

LH Sponson

292000495

Unavailable

28

GASKET - Call your local BRP dealership

293250026

Unavailable

29

Flat Washer M6, Stainless

234062600

$0.64

30

LATCH STUD - Call your local BRP dealership

291000691

Unavailable

31

Hex. Elastic Stop Nut M6

232561600

$0.92

32

Loctite 243, 10 ml

293800060

$20.77

33

Grab Handle (Black) | Includes 42 - 46.

295500369

Unavailable

34

Hex. Screw M6 X 40

207064060

$1.40

35

Flat Washer M6, Stainless

234062600

$0.64

36

Lock Washer Helical M6

234161601

$0.92

37

Hex. Nut M6

232061600

$0.91

38

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

39

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

40

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

41

Hex. Jam Nut M10

232100600

$1.85

42

Restrictor

291001098

Unavailable
