10- Typical Electrical Connections

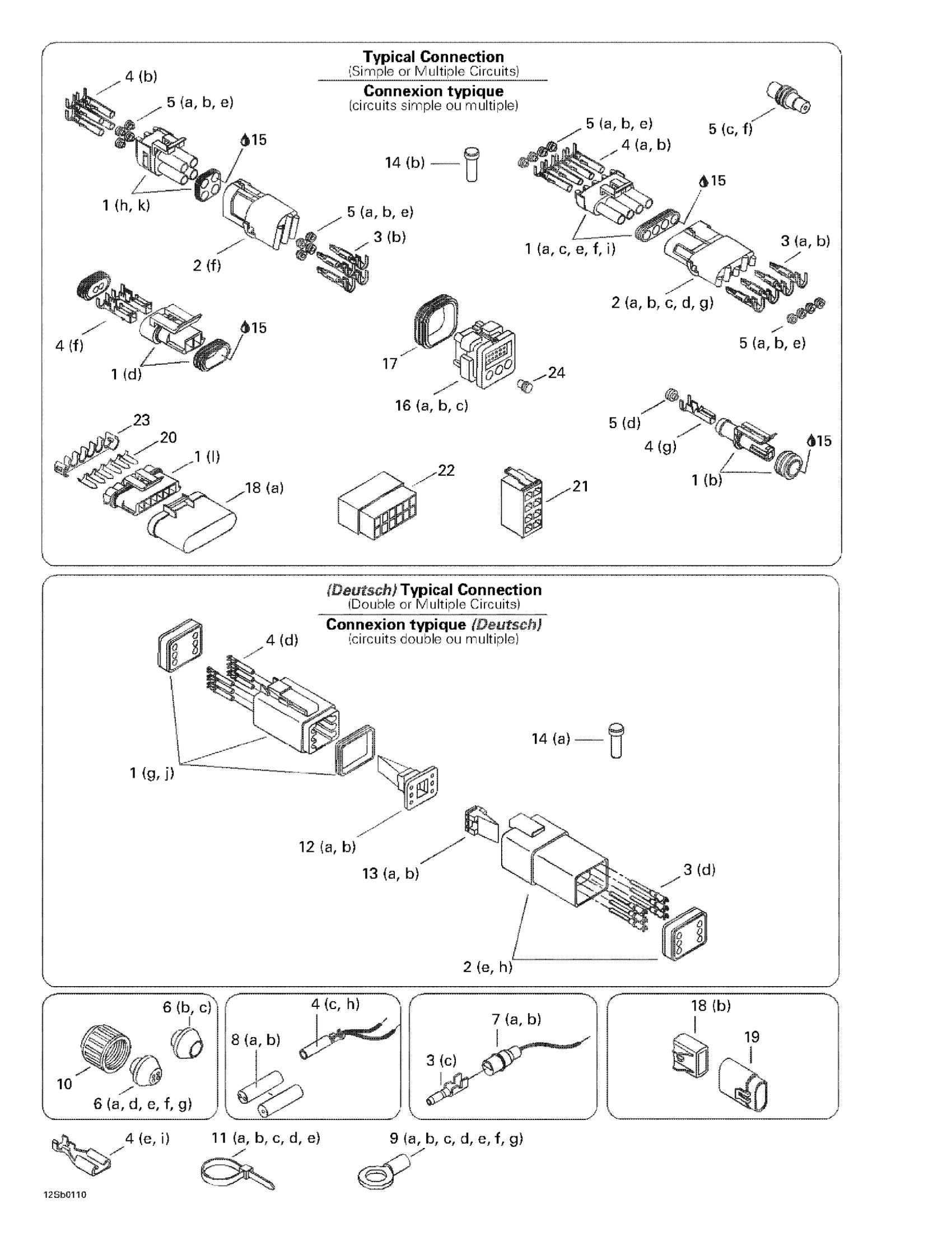

Sea-doo GSX RFI, 5549, 2001 10- Typical Electrical Connections Diagram
#
1a
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
Unavailable
1b
Male Housing, 1 Circuit
278001012
$16.86
1c
Male Connector, 2 Circuits
278000220
$15.49
1d
Male Connector, 2 Circuits
278001113
$16.86
1e
Male Housing, 3 Circuits
278000273
$9.59
1f
Male Housing, 4 Circuits
278000395
$15.99
1g
Male Connector, 4 Circuits | CE
278000739
$19.49
1h
CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership
278000891
Unavailable
1i
MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278000221
Unavailable
1j
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
$21.99
1k
Male Housing, 6 Circuits, Amp
278001318
Unavailable
1l
Male Housing, 6 Circuits, Packard
278001327
Unavailable
2a
Female Housing, 1 Circuit
278000161
$9.59
2b
Female Housing, 2 Circuits
278000217
$9.59
2c
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
2d
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278000394
Unavailable
2e
Female Housing, 4 Circuits
278000635
$16.49
2f
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership
278000890
Unavailable
2g
FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278000156
Unavailable
2h
Male Terminal Housing, 6 Circuits
710001539
$19.99
3a
Male Terminal
409004300
$5.61
3b
Male Terminal | XT Models
278000222
$3.19
3c
Male Terminal
278000230
$4.39
3d
Male Terminal
278000631
$4.39
4a
Female Terminal
409007300
$0.45
4b
Female Terminal
278000223
$3.19
4c
Female Terminal | DS 650 X
278001009
$3.19
4d
Female Terminal
278000632
$2.09
4e
FEMALE TERMINAL - Call your local BRP dealership
278000228
Unavailable
4f
Female Terminal
278001114
$3.19
4g
Female Terminal
278001014
$3.28
4h
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
4i
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
5a
Wire Seal
278000218
$4.39
5b
Wire Seal
278001065
$7.69
5c
Wire Seal
278000216
$3.19
5d
Wire Seal
278001013
$3.28
5e
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
5f
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
6a
Grommet, 1 Circuit, Blue
293720030
Unavailable
6b
GROMMET - Call your local BRP dealership
278000098
Unavailable
6c
Grommet
278000682
Unavailable
6d
GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership
293720025
Unavailable
6e
GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership
278000193
Unavailable
6f
Grommet, 4 Circuit, Red
570026800
Unavailable
6g
Grommet
293720034
Unavailable
7a
Insulation Sheath
278000231
$5.08
7b
Insulated Sheath
278001008
$3.28
8a
Insulated Sheath
278001007
$3.58
8b
Insulated Sheath
278000770
$7.90
9a
Open Barrel
278000992
$2.21
9b
OPEN BARREL - Call your local BRP dealership
409003200
Unavailable
9c
Ring Terminal
278000300
Unavailable
9d
Open Barrel, 8 mm
278001138
Unavailable
9e
Open Barrel
278001165
Unavailable
9f
Open Barrel, Amp
278001323
Unavailable
9g
Open Barrel, Amp
278001324
Unavailable
10
Electric Wire Cap
278000100
Unavailable
11a
Tie Wrap 94 mm | 4X4
293750001
$1.03
11b
Tie Wrap 142 mm
293750002
$1.25
11c
Tie-Rap 173 mm
293750009
$1.04
11d
Tie-Rap 180 mm
414115200
$0.11
11e
Tie Wrap 368 mm
293750008
$1.04
12a
Male Lock, 4 Circuits | CE
278000738
$3.09
12b
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
13a
Female Wedge, 4 Circuits
278000636
$4.39
13b
Female Lock, 6 Circuits
278000735
$3.19
14a
Sealing Cap
293000052
$3.19
14b
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
15
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
16a
Male Connector, 26 Circuits | Includes 16a - 17.
278000993
Unavailable
16b
Male Terminal Housing, 26 Circuits
278001062
Unavailable
16c
MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership
278001063
Unavailable
17
WIRE SEAL - Call your local BRP dealership
278001307
Unavailable
18a
Cap, 6 Circuits, Packard
278001330
Unavailable
18b
Fuse Holder Cap
278001326
$7.69
19
Fuse Holder
278001325
$8.79
20
Buss Bar, Packard
278001329
Unavailable
21
MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership
278001321
Unavailable
22
Male Housing, 2 Circuits, Molex
278001322
Unavailable
23
Secondary Lock, Packard
278001328
Unavailable
24
SEAL - Call your local BRP dealership
409013900
Unavailable
