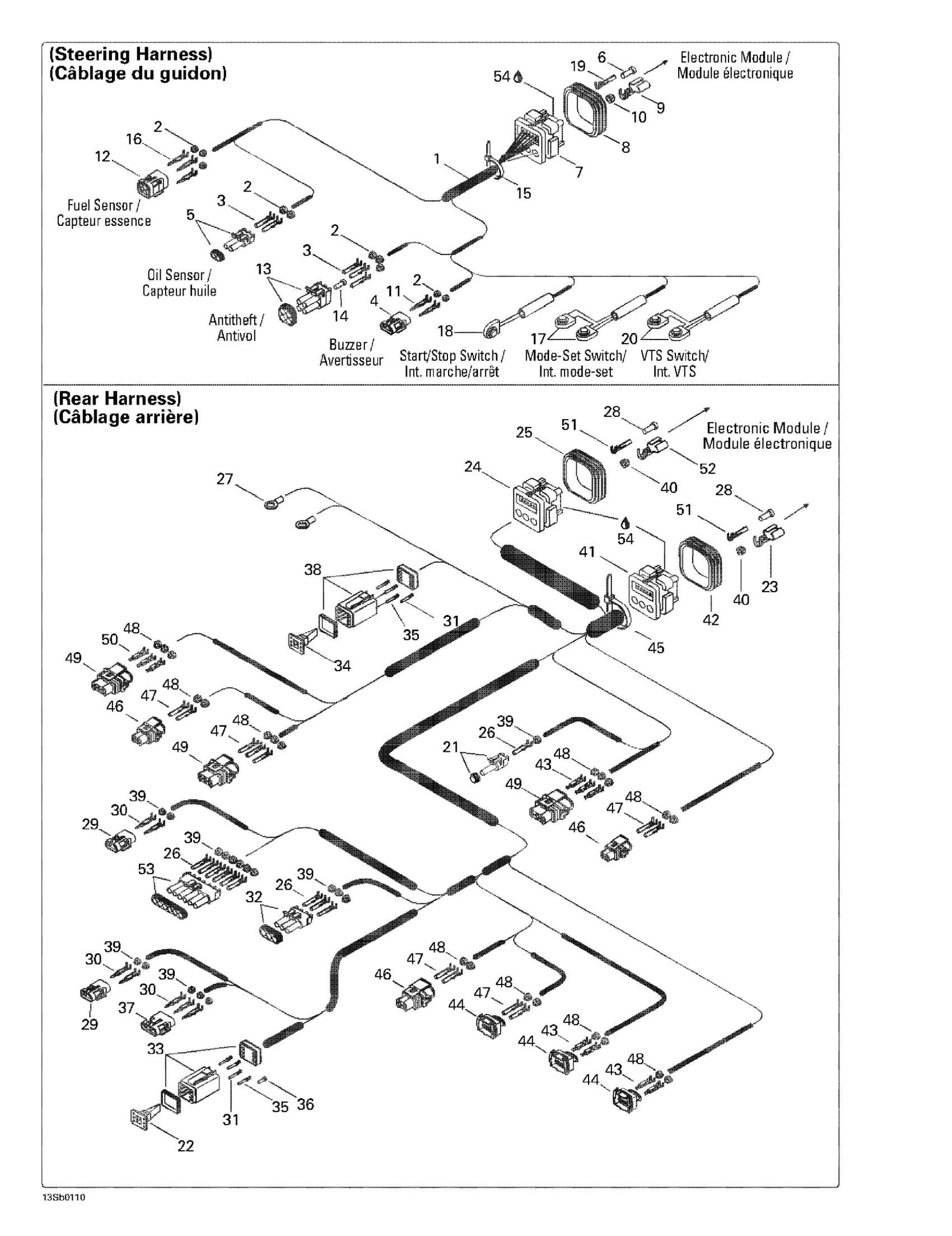

Sea-doo GSX RFI, 5549, 2001 Electrical Harness Diagram

#

Description
Price

1

Steering Harness | Includes 1 - 20.

278001393

Unavailable

2

Wire Seal

278000218

$4.39

3

Female Terminal

278000223

$3.19

4

Female Housing, 2 Circuits

278000217

$9.59

5

Male Connector, 2 Circuits

278000220

$15.49

6

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

7

Male Terminal Housing, 26 Circuits

278001062

Unavailable

8

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

10

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

11

Male Terminal | XT Models

278000222

$3.19

12

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

13

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

14

Wire Seal

278000216

$3.19

15

Tie Wrap 142 mm

293750002

$1.25

16

Female Terminal

278001114

$3.19

17

<> Switch

278001375

Unavailable

18

Stop/Start Switch Ass'y

278001403

Unavailable

19

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

20

VTS Switch (5580-5582)

278001404

Unavailable

21

Rear Harness | Includes 21 - 53.

278001357

Unavailable

21

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

22

Male Lock, 4 Circuits | CE

278000738

$3.09

23

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

24

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

25

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

26

Female Terminal

278000223

$3.19

27

Open Barrel Terminal

278001392

$4.79

28

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

29

Female Housing, 2 Circuits

278000217

$9.59

30

Male Terminal

409004300

$5.61

31

FEMALE TERMINAL - Call your local BRP dealership

278001276

Unavailable

32

Male Housing, 3 Circuits

278000273

$9.59

33

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

34

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

35

Female Terminal

278000632

$2.09

36

Sealing Cap

293000052

$3.19

37

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

38

Male Connector, 4 Circuits | CE

278000739

$19.49

39

Wire Seal

278000218

$4.39

40

Seal

278001223

Unavailable

41

MALE CONNECTOR, 26 CIRCUITS - Call your local BRP dealership

278001211

Unavailable

42

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

43

Female Terminal

278001310

Unavailable

44

Male Connector, 2 Circuits

278001003

$46.49

45

Tie Wrap 142 mm

293750002

$1.25

46

Male Housing, 2 Circuits

278001005

$19.49

47

Female Terminal

278000998

$4.39

48

Wire Seal

278000999

$3.19

49

Male Housing, 3 Circuits

278000997

$19.49

50

FEMALE TERMINAL - Call your local BRP dealership

278001210

Unavailable

51

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

52

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

53

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

54

*(Ormd) *Deoxit Aerosol *

293550034

$38.99
