09- Body, Rear View

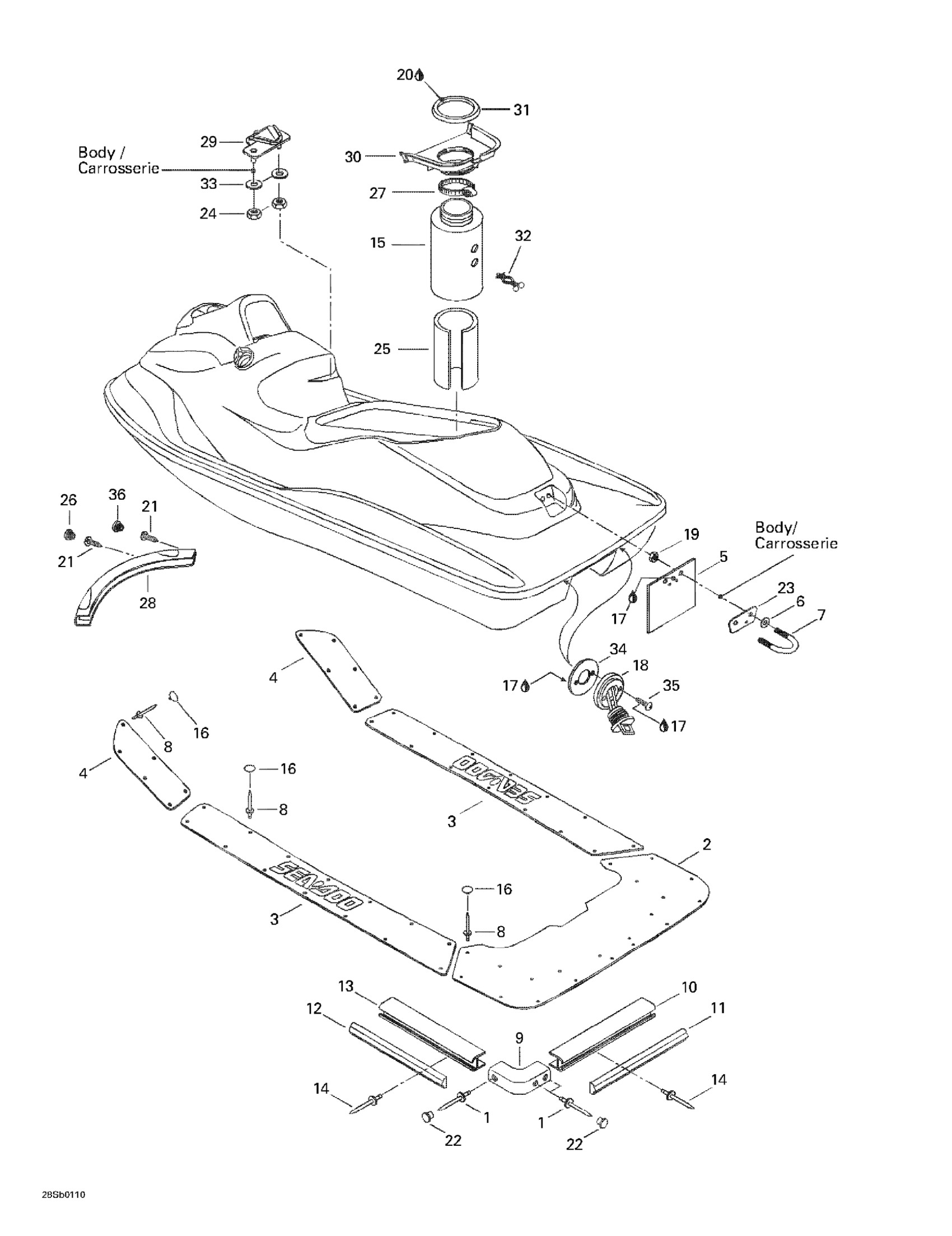

Sea-doo GSX RFI, 5549, 2001 09- Body, Rear View Diagram
#
1
Pop Rivet 3/16"
293150013
$1.37
2
Rear Carpet (Black)
291001185
Unavailable
3
RH Lateral Carpet (Black)
291001183
Unavailable
LH Lateral Carpet (Black)
291001184
Unavailable
4
RH Front Carpet (Black)
291000511
Unavailable
LH Front Carpet (Black)
291000512
Unavailable
5
Retainer Plate
291001362
Unavailable
6
Flat Washer M8.5 x 18
293050001
$3.07
7
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
8
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
9
Bumper Corner
291002244
$48.99
10
REAR BUMPER, BLACK - Call your local BRP dealership
291002242
Unavailable
11
REAR BUMPER TRIM (BLACK) - Call your local BRP dealership
291001192
Unavailable
12
SIDE BUMPER TRIM (BLACK) - Call your local BRP dealership
291001190
Unavailable
13
Black, Side Bumper
204050270
$179.99
14
Pop Rivet 3/16"
293150014
$1.09
15
Rear Vent Hose
291001393
Unavailable
16
Black, Snap Cap
293000014
$1.09
17
Silicone Sealant 51388, 300 ml
296000309
$36.99
18
Drain Plug
292000187
$14.49
19
Hex. Elastic Nut M8
232581600
$1.48
20
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
21
Phillips Screw 10-14 X 7/8”
211000037
Unavailable
22
Bumper Plug, Black
291000339
$2.99
23
Finition Plate
291000544
Unavailable
24
Hex. Elastic Stop Nut M6
232561600
$1.15
25
Sound Damping
291000400
Unavailable
26
Bumper Plug, Black
291001040
$7.39
27
Tridon Clamp
293650054
$9.49
28
BUMPER NOSE, BLACK - Call your local BRP dealership
291001942
Unavailable
29
Seat Hook
291001479
Unavailable
30
Hose Support | Includes 24 - 26.
291001150
Unavailable
30
Vent Hose Adaptor
291001105
Unavailable
31
Was 293200017 Neoprene Seal
219704365
$149.99
32
ATTACHE *BRACKET - Call your local BRP dealership
291000714
Unavailable
33
Flat Washer M6, Stainless
234062600
$0.77
34
GASKET - Call your local BRP dealership
293250030
Unavailable
35
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
36
Bumper Plug, Black
291001519
$5.49
