07- Steering System

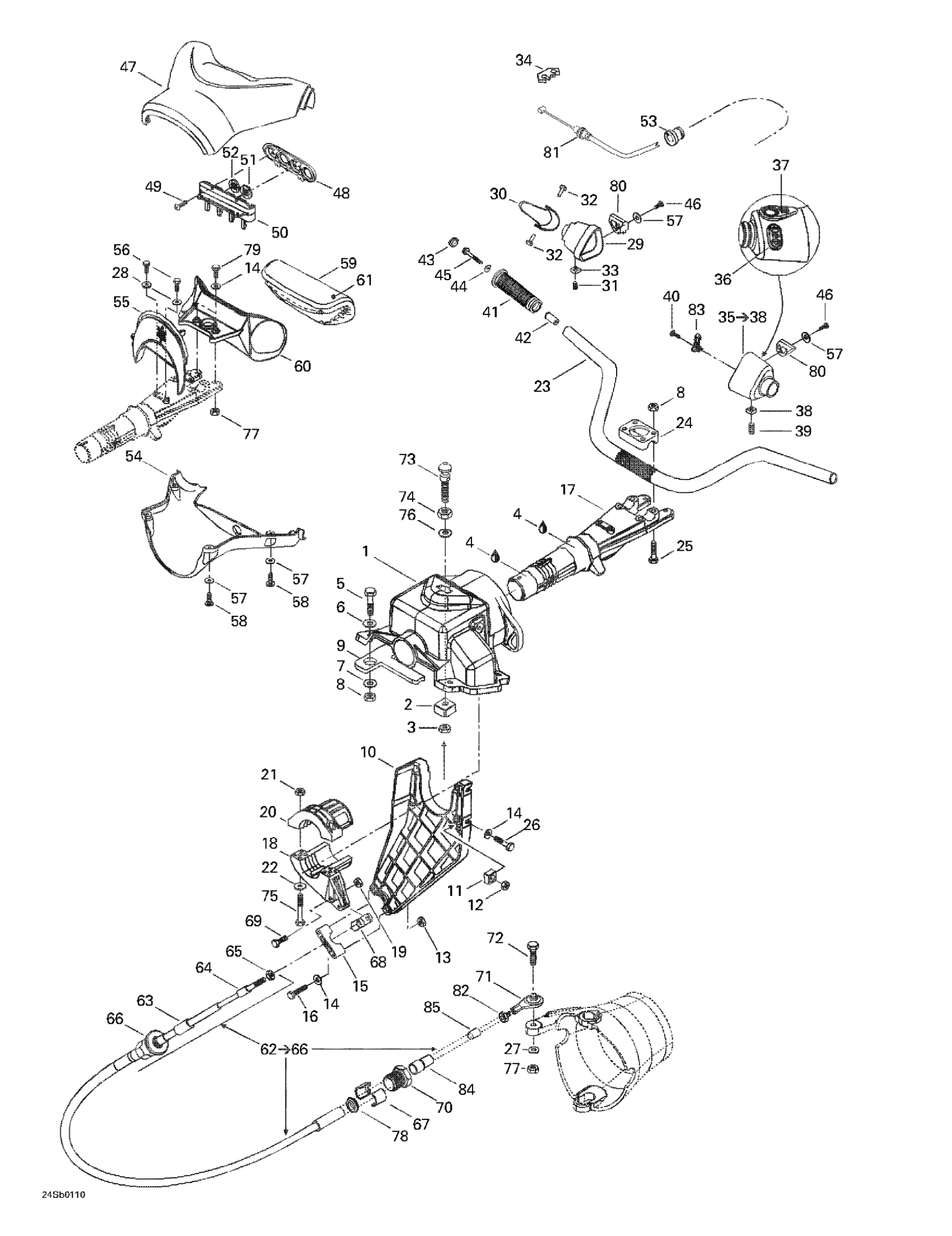

Sea-doo GSX RFI, 5549, 2001 07- Steering System Diagram
#
1
STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61
277001471
Unavailable
2
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
3
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
4
Synthetic Grease, 400 G
293550010
Unavailable
5
Hex. Screw M8 X 35
207083560
$1.47
6
Stainless, Flat Washer 8 mm
234081600
$0.55
7
Flat Washer 8 mm, Stainless
234082600
$2.43
8
Hex. Elastic Nut M8
232581600
$1.48
9
Gasket
293250069
Unavailable
10
CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58
277001522
Unavailable
11
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
12
Hex. Elastic Stop Nut M6
232561600
$1.15
13
Hex. Elastic Stop Nut M6
232561600
$1.15
14
Stainless Flat Washer M6
234061600
$0.33
15
SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.
277001528
Unavailable
16
Hex. Screw M6 X 50
207065060
$2.22
17
Steering Stem
277000562400
Unavailable
18
Steering Stem Arm | Includes 41 to 42
277000518
Unavailable
19
Hex. Elastic Stop Nut M6
232561600
$1.15
20
Arm Thrust | Includes 43 to 44
277000519
Unavailable
21
Hex. Elastic Stop Nut M6
232561600
$1.15
22
Flat Washer M6, Stainless
234062600
$0.77
23
Handlebar
277000824
Unavailable
24
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
25
HEX. SCREW M8 X 50 - Call your local BRP dealership
207085060
Unavailable
26
Hex. Forming Screw M6 X 20
207162060
$1.29
27
Stainless Flat Washer M6
234061600
$0.33
28
Flat Washer M6, Stainless
234062600
$0.77
29
THROTTLE HOUSING ASS'Y - Call your local BRP dealership
277000872
Unavailable
30
Throttle Handle
277000214
Unavailable
31
Socket Head Screw M6 X 16
250000036
$9.00
32
PIN - Call your local BRP dealership
277000381
Unavailable
33
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
34
TAB LOCK - Call your local BRP dealership
277000279
Unavailable
35
HOUSING ASSY - Call your local BRP dealership | Includes 14 to 17
277000877
Unavailable
36
VTS KNOB - Call your local BRP dealership
277000497
Unavailable
37
Switch Knob
277000306
Unavailable
38
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
39
Socket Head Screw M6 X 16
250000036
$9.00
40
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
41
HANDLE GRIP KIT, BLACK - Call your local BRP dealership
295500691
Unavailable
42
Not Available As Spare Part - Friction Washer
Unavailable
43
Black, Cap
277000203
$9.39
44
Flat Washer M6, Stainless
234062600
$0.77
45
Hex. Screw M6 X 30, Scotch Grip
250000002
$0.92
46
PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership
209630960
Unavailable
47
Upper Steering Cover
277000632
Unavailable
48
RETAINER PLATE - Call your local BRP dealership | LE
277000688
Unavailable
49
Screw K40 X 10
241140060
$1.48
50
Switch Support | LE
277000563
Unavailable
51
Mode Knob | LE
293000079
Unavailable
52
«Set» Knob | LE
293000080
Unavailable
53
Grommet
293720046
Unavailable
54
Lower Steering Cover
277000811
Unavailable
55
PLATE - Call your local BRP dealership
277000549
Unavailable
56
HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership
211000036
Unavailable
57
Flat Washer M5, Stainless
234051600
$0.77
58
Hex. Flange Screw K40 X 16
241141660
$1.48
59
Handle Bar Pad | Includes 12 - 13.
277000627
Unavailable
60
Handle Bar Pad Support
277000687
Unavailable
61
Not Available As Spare Part - Friction Washer
Unavailable
62
Cable-Steering | Includes 61 - 64. This part replaces 277001011.
277001321
$219.99
63
End Piece
277001583
$14.49
64
Wiper Rod
277001582
$11.11
65
Hex. Nut 1/4"-28
211100056
$0.69
66
Ajustment Knob
277000782
$22.99
67
Half Ring
277001527
$10.37
68
Ball Joint
277001180
$35.99
69
Hex. Screw M6 X 30
211000081
$3.59
70
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
71
Ball Joint
277000775
$51.99
72
Hex. Screw M6 X 30
207063060
$1.89
73
LATCH STUD - Call your local BRP dealership
291000689
Unavailable
74
Hex. Jam Nut M10
232100600
$2.22
75
Hex. Screw M6 X 25
207162560
$1.47
76
Flat Washer 10 mm, Stainless
234002600
$2.22
77
Hex. Elastic Stop Nut M6
232561600
$1.15
78
Rubber Washer
293830063
$1.90
79
Hex. Screw M6 X 30
207063060
$1.89
80
INSERT - Call your local BRP dealership
293450153
Unavailable
81
Throttle Cable Ass'y
277000894
Unavailable
82
Hex. Nut 1/4"-28
211100056
$0.69
83
Retainer Plate
277000845
Unavailable
84
End Piece
277001583
$14.49
85
Wiper Rod
277001582
$11.11
