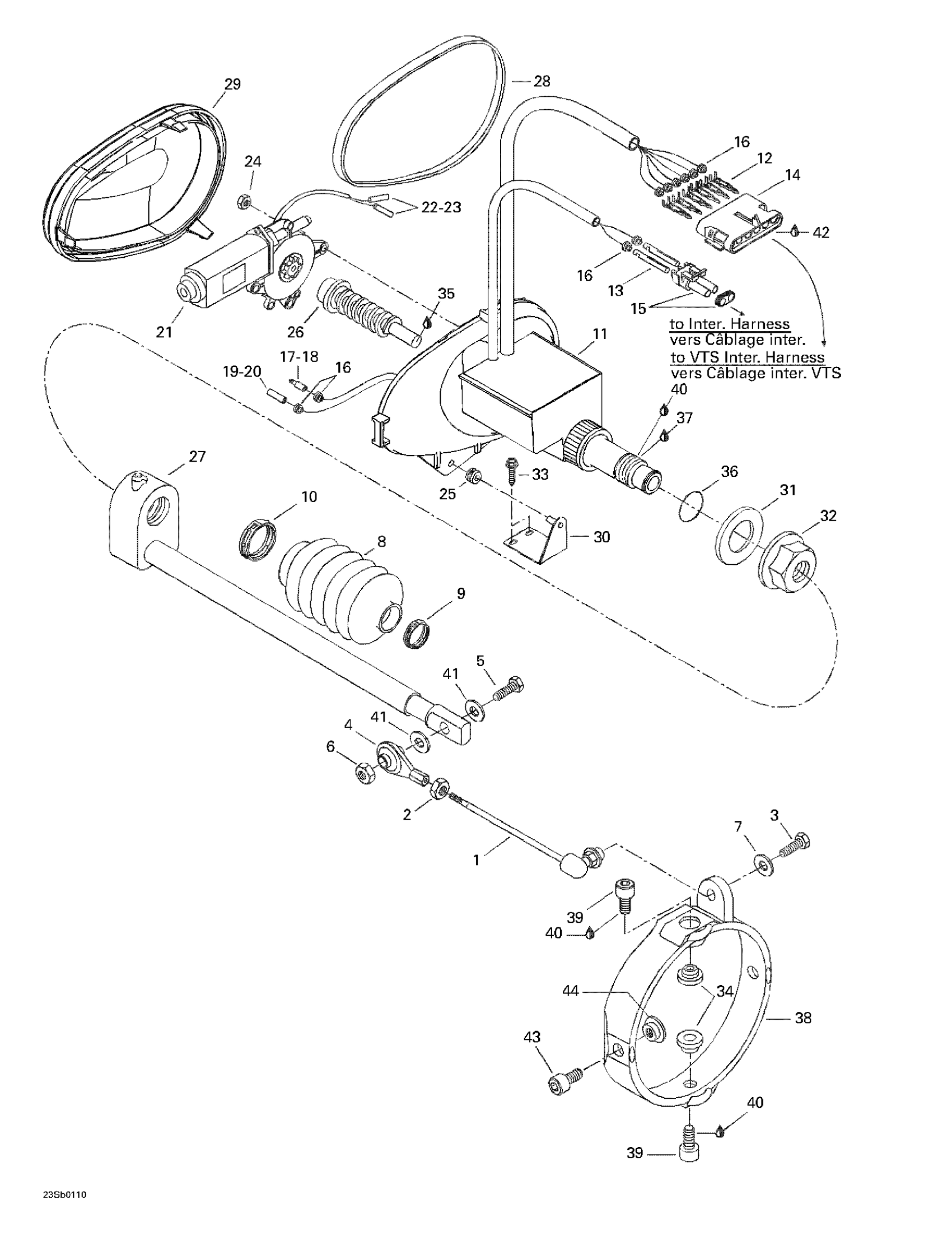

Sea-doo GSX RFI, 5549, 2001 05- Trim Diagram
#
1
Moulding Rod
271000580
Unavailable
2
Hex. Nut
212100005
$1.35
3
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
4
BALL JOINT - Call your local BRP dealership
277000153
Unavailable
5
Hex. Screw M6 X 35
207063560
$2.22
6
Hex. Elastic Stop Nut M6
232561600
$1.15
7
Flat Washer 5 mm, Stainless
234052600
$0.77
8
Protector Hose
271000459
$17.49
9
Clamp
293650082
$3.99
10
CLAMP - Call your local BRP dealership
293650083
Unavailable
11
V.T.S Housing Ass'y | Includes 11 - 29.
278001293
Unavailable
11
V.T.S Housing
278001605
$419.99
12
Male Terminal | XT Models
278000222
$3.19
13
Female Terminal
278000223
$3.19
14
FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278000156
Unavailable
15
Male Connector, 2 Circuits
278000220
$15.49
16
Wire Seal
278000218
$4.39
17
Male Terminal
278000230
$4.39
18
Insulated Sheath
278001008
$3.28
19
Female Terminal | DS 650 X
278001009
$3.19
20
Insulated Sheath
278001007
$3.58
21
Windshield Motor
278002579
$234.99
22
Insulation Sheath
278000231
$5.08
23
Male Terminal
278000230
$4.39
24
Hex. Elastic Stop Nut M6
232561600
$1.15
25
GROMMET - Call your local BRP dealership
293720015
Unavailable
26
Worm Screw
278000428
$14.30
27
Sliding Block Ass’y
278001698
$43.99
28
GASKET - Call your local BRP dealership
293200027
Unavailable
29
V.T.S. COVER - Call your local BRP dealership
278000595
Unavailable
30
V.T.S. SUPPORT ASSY - Call your local BRP dealership
292000250
Unavailable
31
SEAL WASHER - Call your local BRP dealership
293830027
Unavailable
32
SPECIAL NUT M27 - Call your local BRP dealership
211100020
Unavailable
33
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
34
Venturi Bushing
293900007
$5.45
35
Synthetic Grease, 400 G
293550010
Unavailable
36
O-Ring
293300044
$1.05
37
Was 293800041 Loctite Primer 7649
219704458
$39.99
38
Trimming Ring
271000578
Unavailable
39
Socket Head Screw M8 x 10
211000089
Unavailable
40
Loctite 243, 10 ml
293800060
$21.49
41
Stainless Flat Washer M6
234061600
$0.33
42
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
43
Screw
211000007
Unavailable
44
Venturi Bushing
271000321
$8.69
