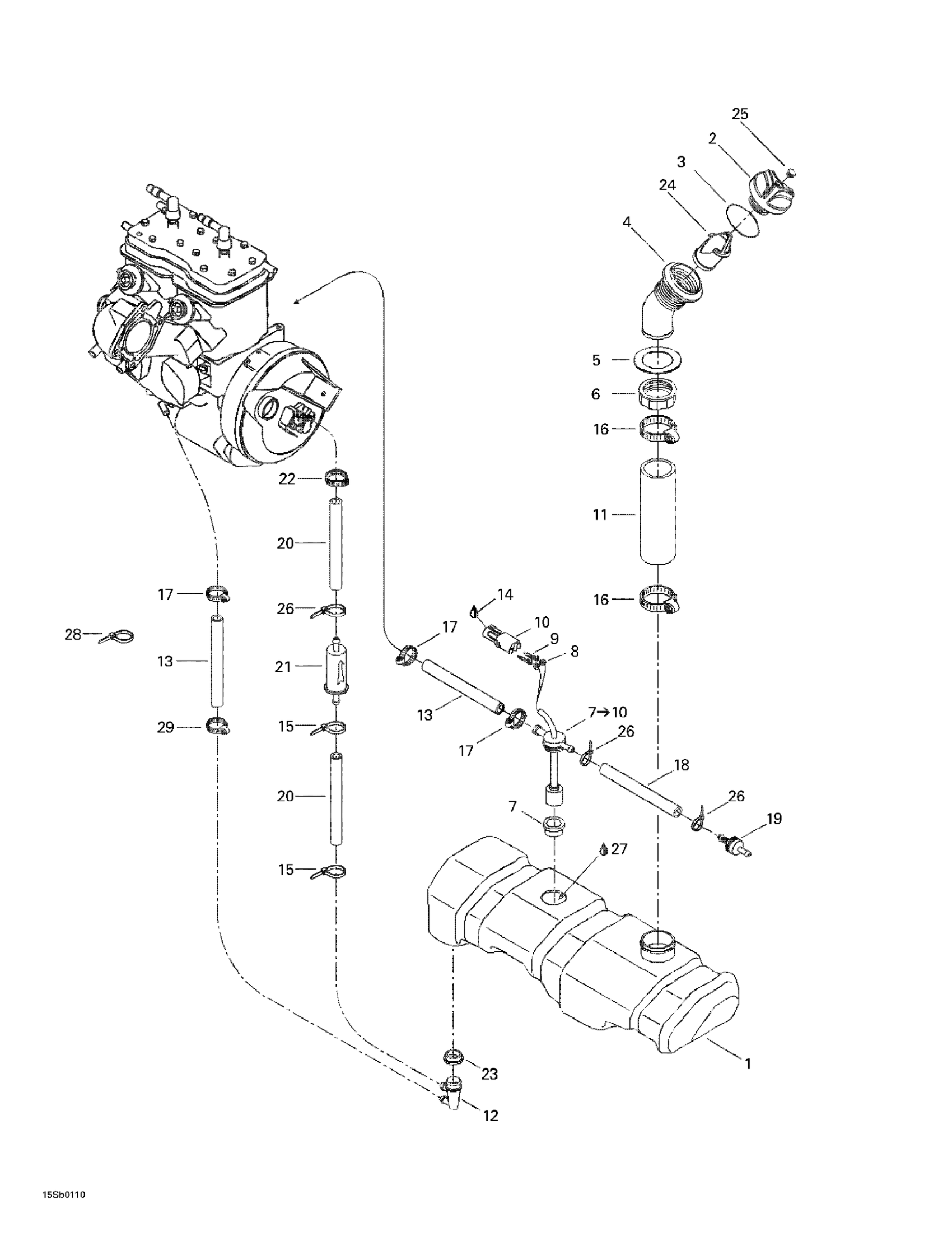

Sea-doo GSX RFI, 5549, 2001 Oil Injection System Diagram

#

Description
Price

1

Oil Tank

275000238

$88.03

2

OIL CAP - Call your local BRP dealership | Includes 17 to 18

275000221

Unavailable

3

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

4

Filler Neck

275000187

Unavailable

5

Gasket

293250029

$13.85

6

Filler Neck Nut, Fuel

211100012

$11.51

7

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

278001401

Unavailable

7

Grommet

293720008

$12.52

8

Wire Seal

278000218

$4.00

9

Male Terminal | XT Models

278000222

$2.93

10

Female Housing, 2 Circuits

278000217

$8.72

11

Filler Hose

275000188

Unavailable

12

FITTING ELBOW 90 - Call your local BRP dealership

293710051

Unavailable

13

Was 275500008 Hose 12 mm

219704356

$6.82

14

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

15

Tie Wrap 94 mm | 4X4

293750001

$0.96

16

Tridon Clamp

293650035

$6.66

17

Tridon Gear Clamp

293650170

$2.00

18

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

19

Check Valve

275500398

$9.84

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

21

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

22

Oetiker Clamp

293650042

$1.61

23

Grommet

293720008

$12.52

24

Restrictor

275000190

Unavailable

25

Snap Cap, Black

293000076

Unavailable

26

Tie Wrap 142 mm

293750002

$1.01

27

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.33

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

28

Tie-Rap 180 mm

414115200

$0.10

29

Norma Clamp

293650084

$3.88
